How do I find Preinstallation Specifications, diagram and wiring specs

Written on Jun 24, 2020

Vatech Pre-installation sheets include all vital information such as product dimensions, specifications, wiring, as well as well as PC specifications for your particular unit and more!


Vatech America recommends that you contact your Authorized Dealer to assist with all pre-installation questions and conerns to ensure that your installation goes as smoothly as possible, as well as conduct any site surveys for your specific needs.



Download by Model:

The following link will contain preinstallation documents by Device Model/SN type including preinstallation data such as size requirements, PC specs and other important preinstallation wiring requirements.

 Preinstallation Specifications and Requirements





Institutional & Hospital Survey/Preinstallation Check List:

The following link will contain preinstallation documents for Insitutions & Hopsitals to determine the network reuqirements, PACS Network integrations.

Intitutional Check List Survey & PACS Survey




Important Notice On Mounting:

- All Units MUST be Wall Mounted for stabilty of the unit.

- Base Plate is MANDATORY for units with CEPHLOMETRIC (Ceph) units.







RS232 'Serial Connector':

For Units that use an RS232 Serial connector the following is the the size of RS232 9 Pin connector is 30.80" W x 12.50 H

Note: Not all units will use a serial connection, please review the Preinstallation Specifications and Requirements  for the device to ensure the proper communication is being used.









Extending Cables

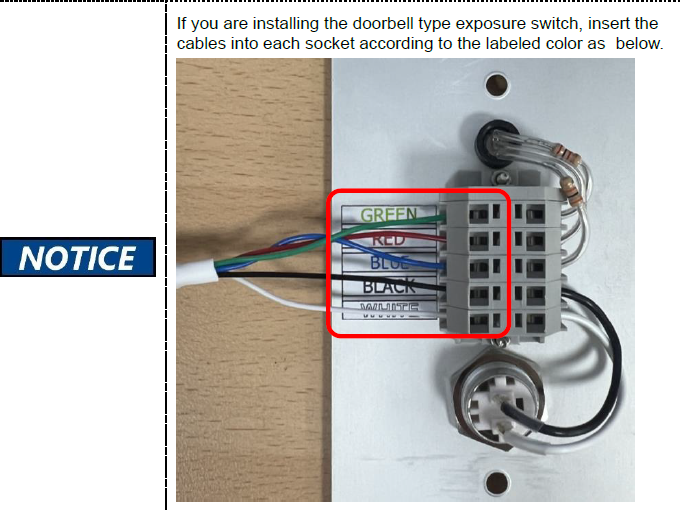

A. Exposure Switch:

Exposure switch wires/cables can be exteded within industry standards.

  • Optional: Using nominal low voltage wire, wired/spliced inline conforming all local codes* spliced inline with Vatech Exposure switch/Doorbell or aftermarket push button Doorbell push button.
  • Recommended: Using OEM Harnesss 'Door Bell SW Cable' which can be wired inline, Vatech also advises to order a secondary Exposure switch to use if/when splicing to retain the OEM exposure switch.

C0104264 - 30 FT Door Bell SW cable.
A0000467 - ASSY-SWITCH NEW EXPOSURE-6P/VATECH LOGO


B. Cat7 Cables:

Cat7 "ethernet" Cables can be pre-run through office or extended using any compatible Cat7 Cabling, with wall cover terminations compatible for Cat7e type connections. (Supplied by site or ordered seperatly) It is highly recommended that a direct connection is made between the X-ray Device and the PC, although across network traffic can be achived it is not recommended.

Extending the connection can also be achived by using the following recommended OEM parts as listed below.

Optional OEM Part numbers:

D0001287 - AMCAT7 Coupler

D0001286 - CAT7 32AWG - 10 Meter Ethernet cable

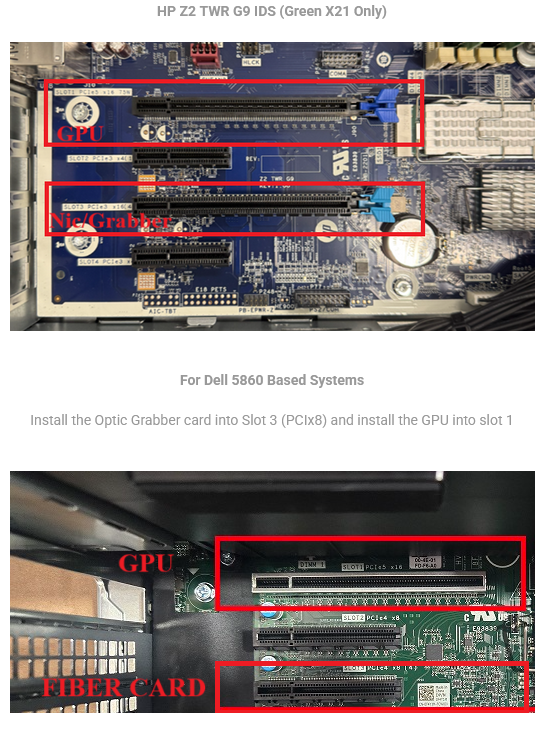

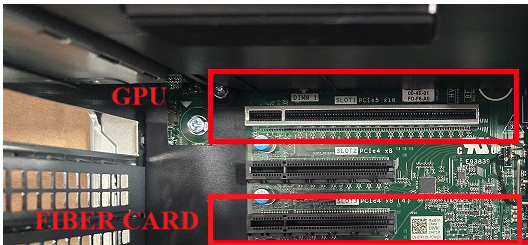

C. Fiber Optic Extention:

Fiber Optic can be extended by using a Fiber Optic Coupler and Factory Fiber Cable (Ordered seperatly) Please confirm Preinstallation Specifications and Requirements  for the device to ensure the proper connector / cable is being used.

Vatech does not support aftermarket fiber cables, OEM cables are designed specifically to work with Vatech Products.

Optional OEM Part numbers:

Coupler:

Single: C0000851

Double: C0000242

Fiber Cable:

C0103716 - Fiber Optic Cable - H000014B
