The Next Evolutionary Step Forward in Panoramic Imaging

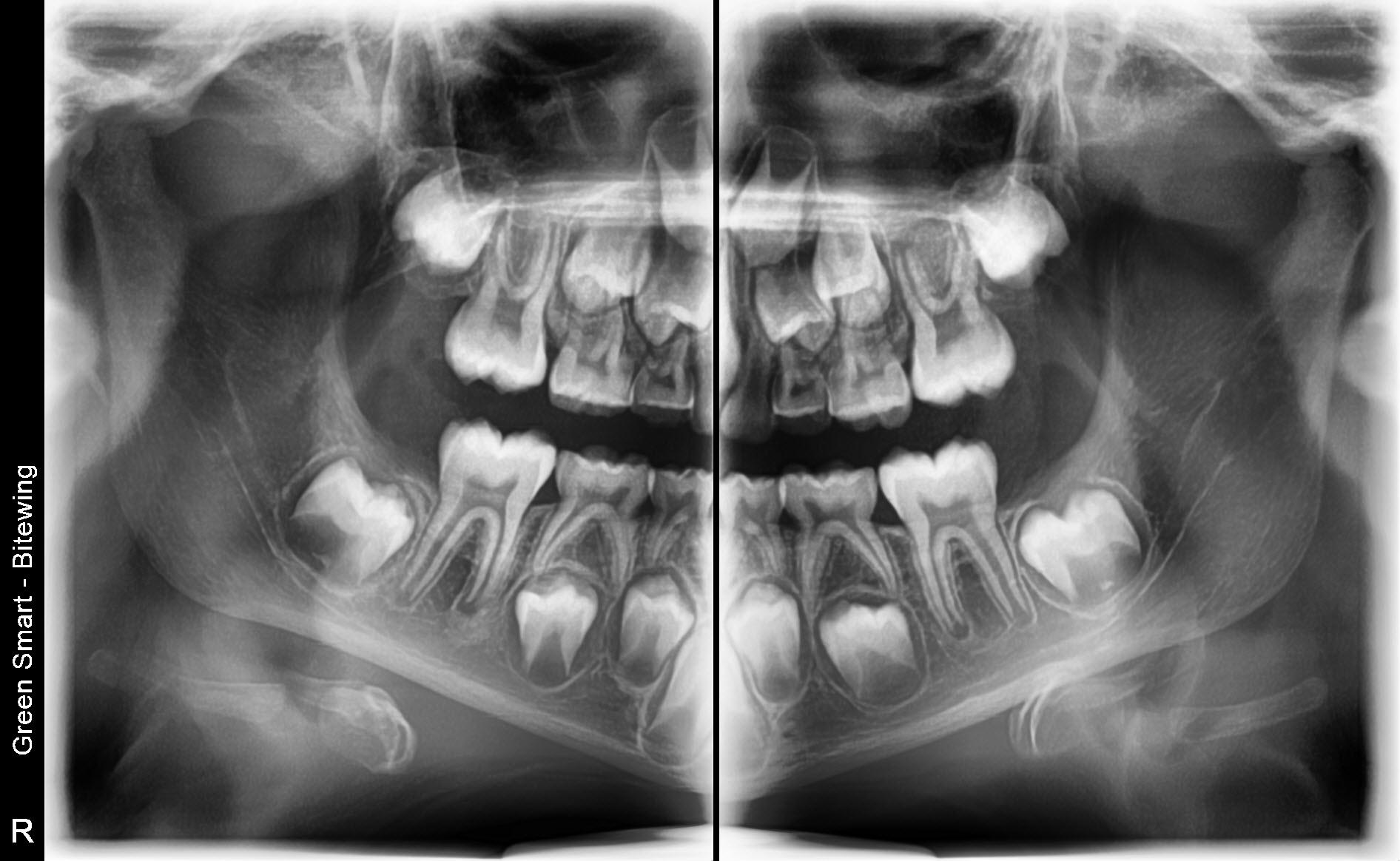

The Insight Pan is capable of taking a multi-layered panoramic image, called an Insight Pan, which provides a unique in-depth look across a single focal trough.
Because each patient may have a slightly different arch, conventional panoramic images may occasionally miss important details, which land outside of a single focal layer.
The Insight Pan is capable of capturing multiple-layered Insight Pans, ensuring that all details are captured in a depth-added panoramic image.

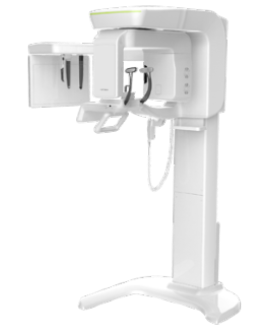

One scan with the Smart Plus gives you a CT and Auto Pano image.
This means that patients who require both images do not need to undergo two x-ray scans. Both images are displayed within the One Viewer feature.

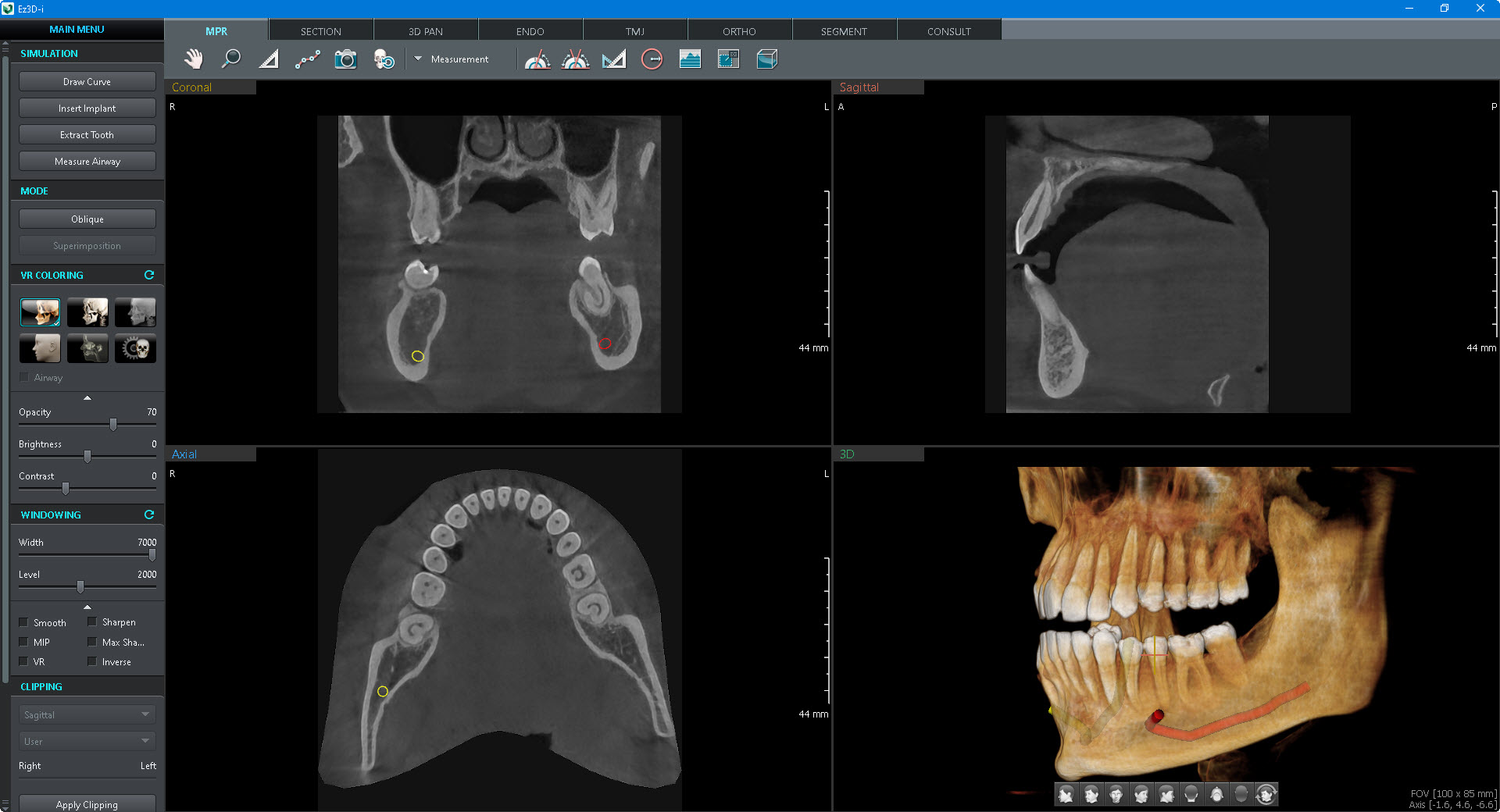

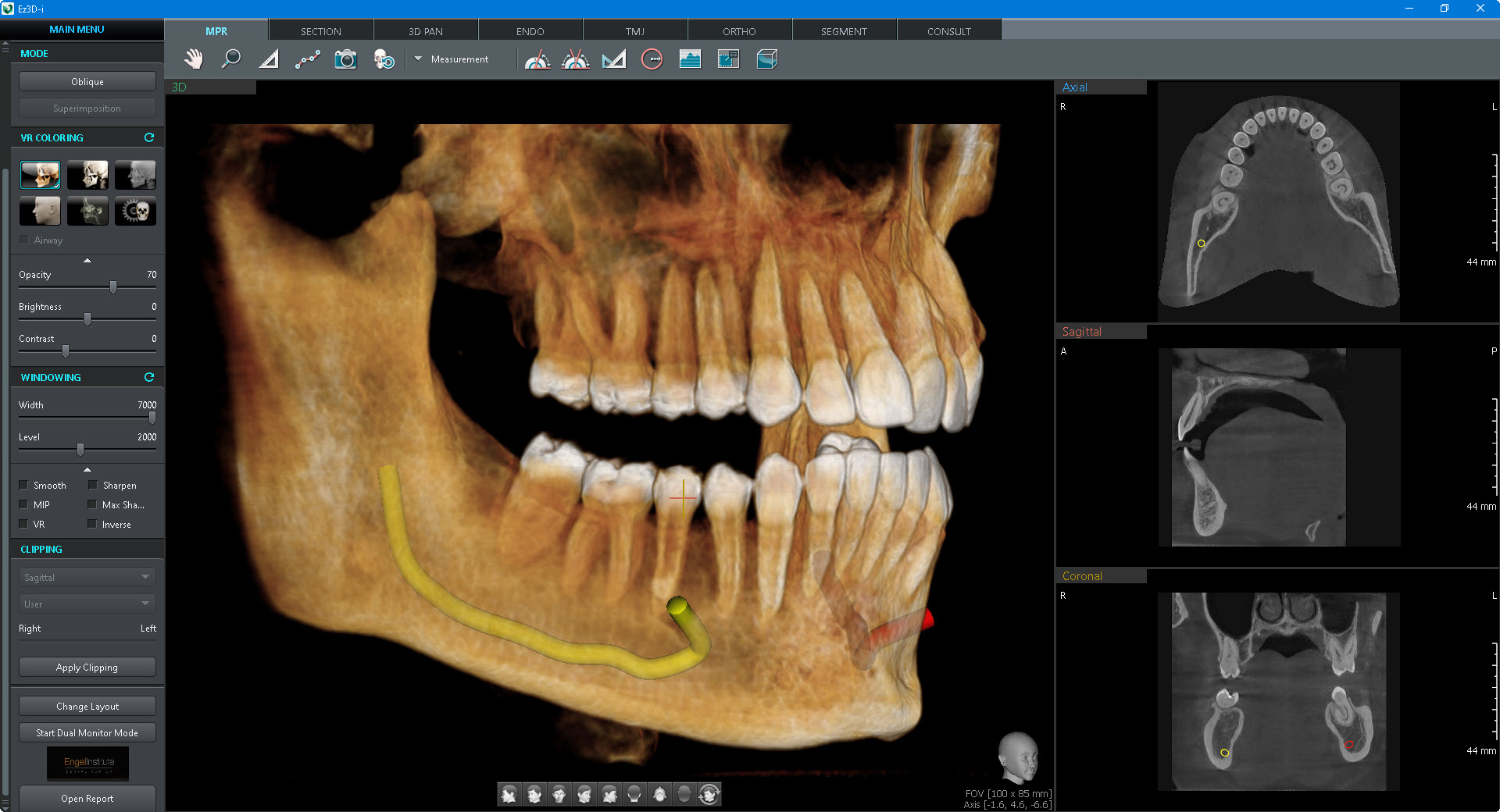

Viewing 2D and 3D images together provides many benefits. There is no need to utilize two different
software programs and the One Viewer feature presents a professional look for your patients.
This layout helps patients better understand the images, which will eventually result in increasing
INNOVATIVE COMPRESSED SENSING TECHNOLOGY
3D image quality is dramatically improved based on the innovative image reconstruction technology.

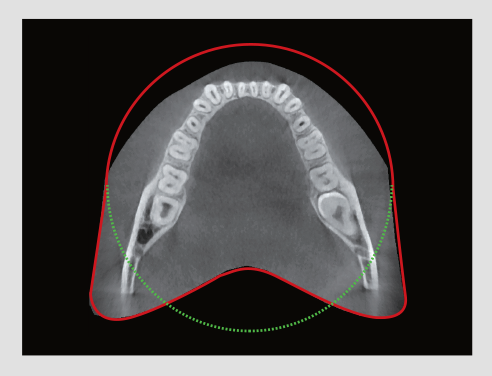

The innovative FOV of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition,
compared to other devices with the same FOV. For impacted 3rd molars, there is a high probability that the volume will miss this important portion of anatomy.
The “arch shaped volume” of the Smart Plus eliminates this possibility and provides the clinician with all the necessary dentition for a thorough diagnosis.
3D model scan enables users to store plasters as digital models.
•Sufficient level of details for surgical guide design
•Stable platform from partial model to full model scanning
*3D scanning for Plaster Cast with FOV 10x8.5 (cm)
|Smart Plus RC|||||||
|Function||Focal Spot||CT FOV Size||Voxel Size||Scan Time||Gray Scale||Tube Voltage||Current||Weight|
|CT[with Auto Pano] + Pano + Ceph + 3D Model||0.5 mm [IEC 60336]||5x5 cm / 8x8 cm / 10x8.5 cm (Anatomical 12x9 cm)||0.08 mm / 0.12 mm / 0.2 mm / 0.3 mm||CT 18 sec
Pano 14.1 sec / 7 sec
Ceph 1.9 sec / 3.9 sec
3D Model 18 sec
|14 bit||60~99 kVp||4~16 mA||With Ceph Unit : 357.1 lbs|
*The specifications are subject to change without prior notice.

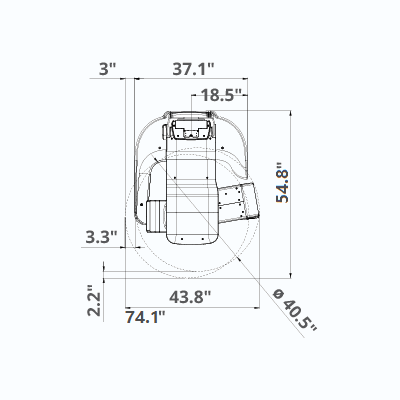

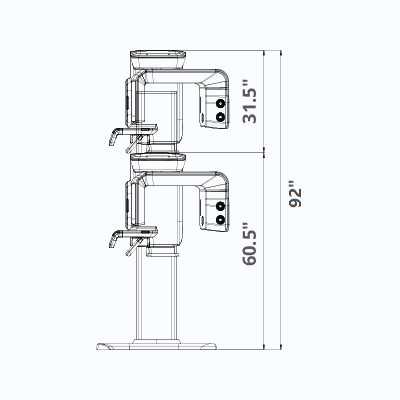

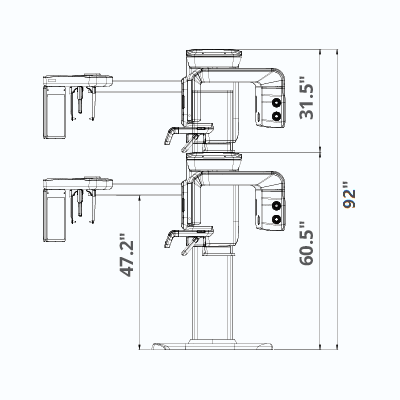

|View||With CEPH||Without CEPH|
*An additional 3 inches (76.2 mm) of space is required behind the unit for wall mount bracket installation
(mandatory unless there is a base mount installation).
