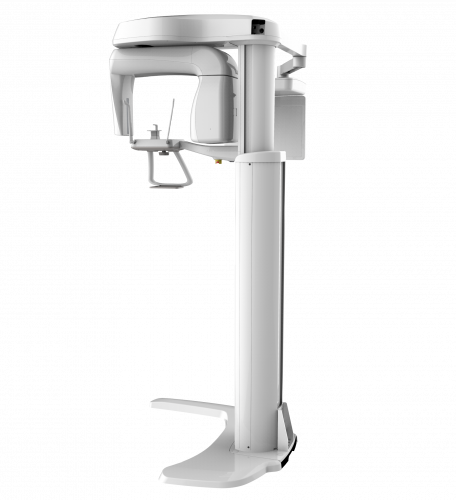

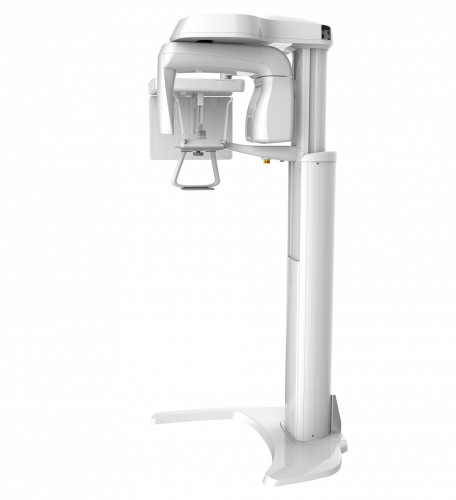

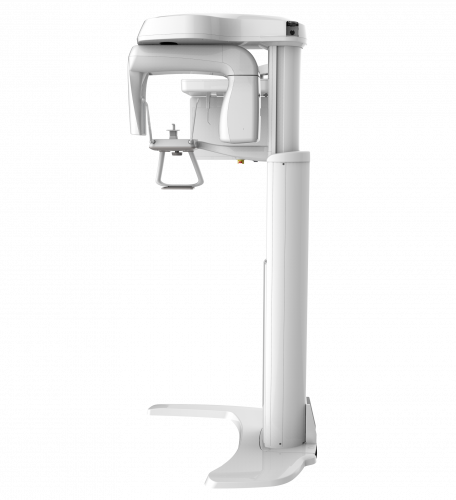

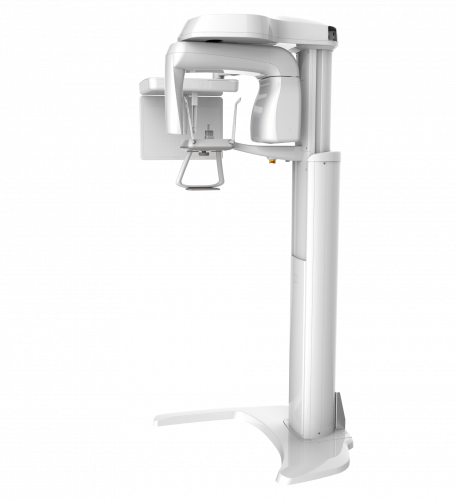

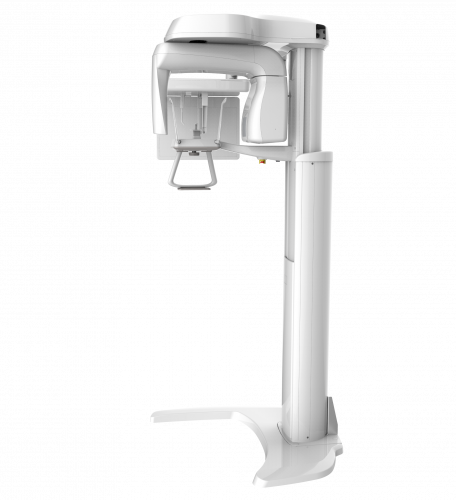

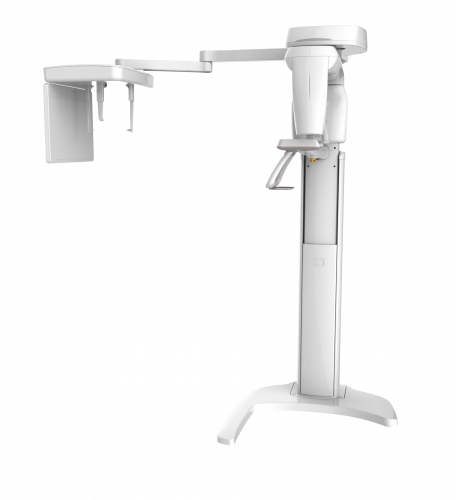

Pax-i

FEATURE

TWO DEDICATED SENSORS

Two dedicated and embedded sensors for Pano and Ceph.
pax-i two dedicated sensors

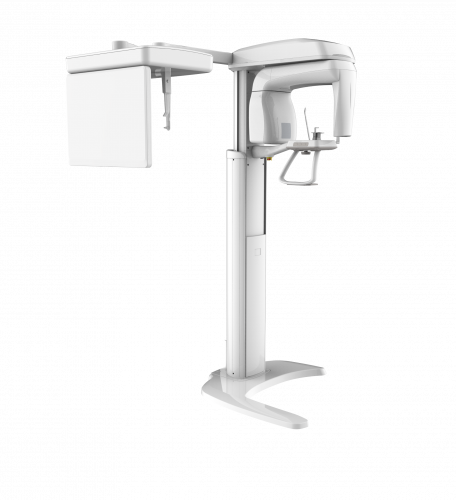

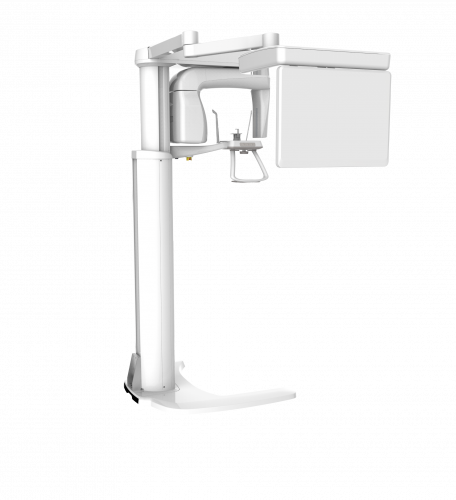

ONE SHOT CEPH

With One Shot Ceph, you can acquire high quality images with low X-ray dosage.

Plus, short scan time reduces distortion caused by patient movement.

one shot ceph

DESCRIPTION

THE ADVANCED IMAGING SOLUTION FOR ACCURATE DENTAL DIAGNOSIS

PaX-i provides the most precise and high quality panoramic image by combining imaging processing and accumulated experience in dental imaging from VATECH. This will improve your diagnostic accuracy with increased treatment planning and patient satisfaction.

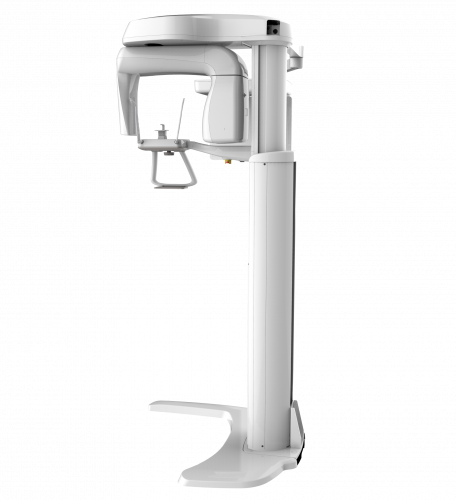

new standard of panoramic image
NEW STANDARD OF PANORAMIC IMAGE

A clear and sharp panoramic image brings you better diagnostics. Advanced details, especially in the anterior and dental roots can be easily viewed with the PaX-i. These consistently high quality images are the new standard of panoramic imaging.

MAKE YOUR DIAGNOSIS EASY AND EFFICIENT WITH VARIOUS CAPTURE MODES

The PaX-i has various capture modes to meet your diagnostic needs. You can choose any capture mode based on your diagnostic needs.

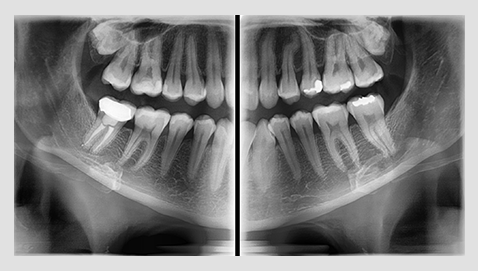

BITEWING MODE
TMJ MODE
SELECTION ARCH EXAMINATION MODE
PANO EXAMINATION Narrow / Normal / Wide / Child Standard / Right / Front / Left
PANO EXAMINATION Orthogonal Orthogonal Standard / Right / Front / Left
Bitewing Standard / Right / Front / Left
SPECIAL EXAMINATION Normal TMJ LAT Open / Close
TMJ PA Open / Close
Sinus LAT / PA
THE ADVANCED IMAGE SOLUTION FOR ORTHODONTIC DIAGNOSIS

EXTENDED DIAGNOSTIC VALUE FOR WIDE INSIGHT

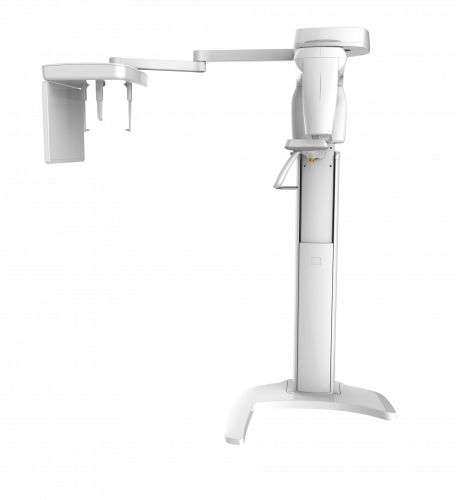

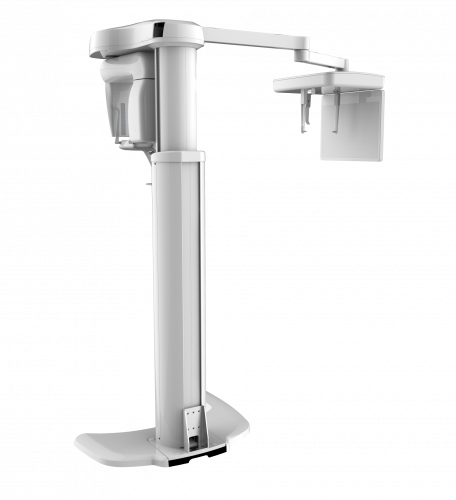

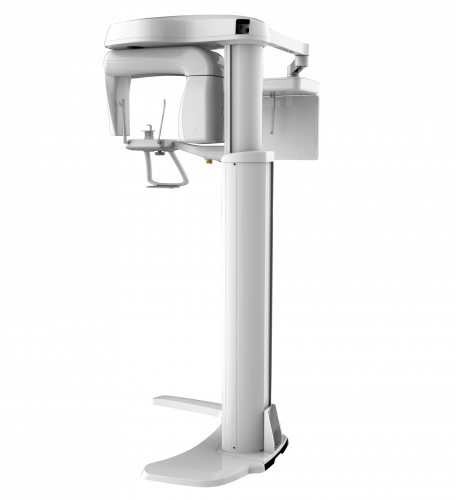

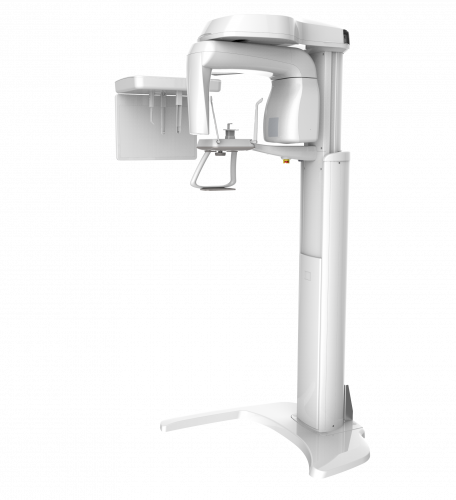

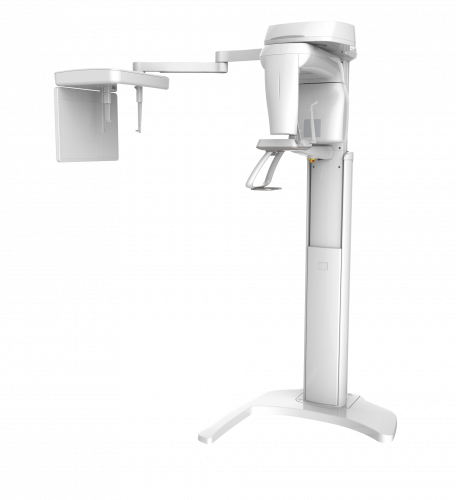

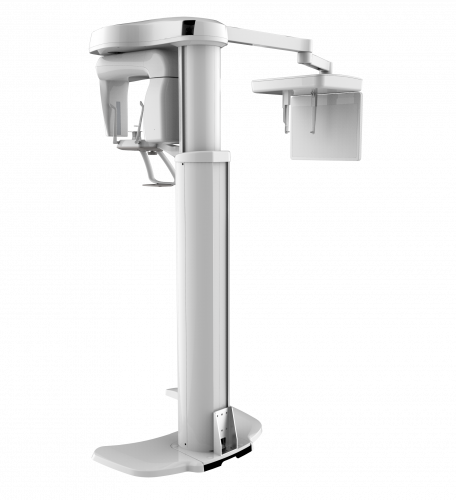

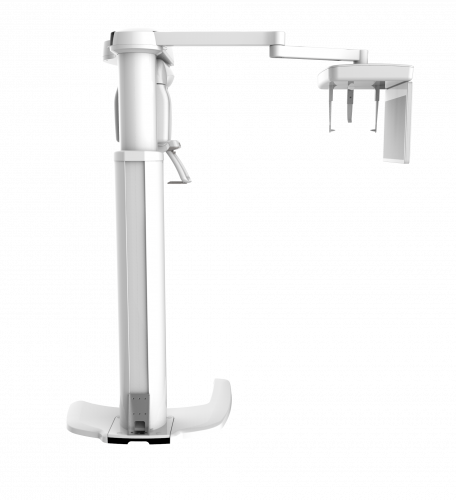

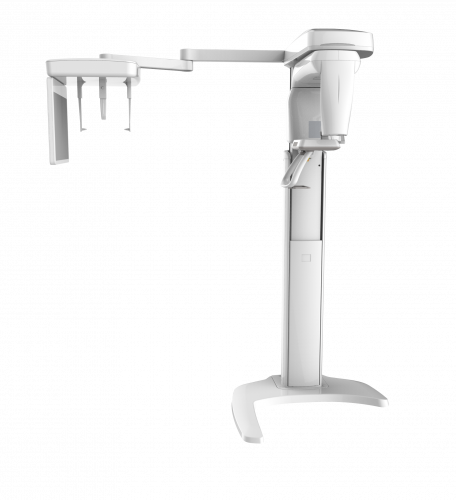

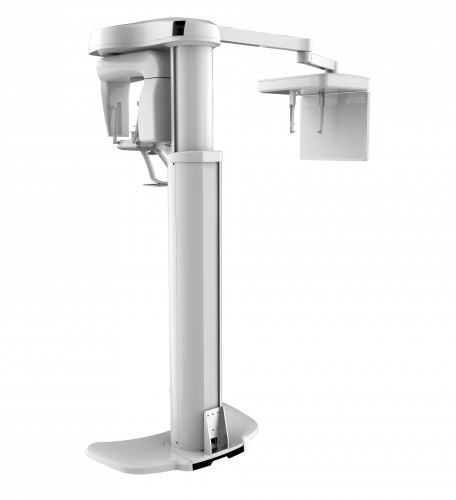

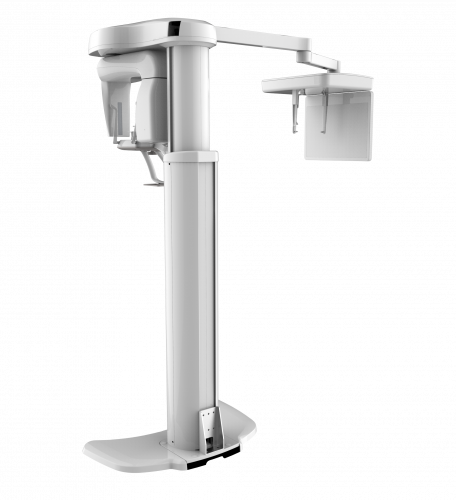

CEPHALOMETRIC SCAN CEPH

The PaX-i provides optimal images exclusively designed for orthodontics. There are two image sizes available, Lateral and Full Lateral, allowing you to choose your image size based on your diagnostic needs.

LATERAL

Provide specialized high quality images to suit
orthodontics and maxillofacial surgeries.

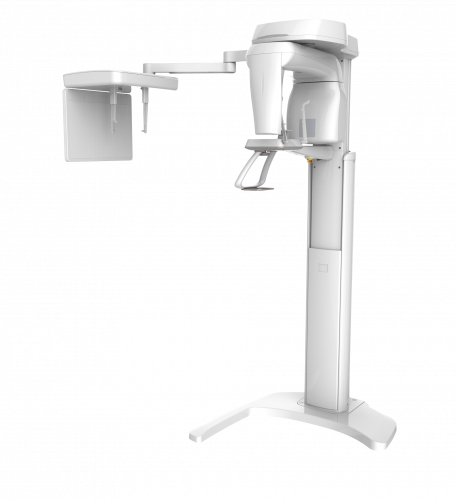

FULL LATERAL

Full lateral image size is 30% wider and shows the
occipital area of the patient, which enables
comprehensive diagnosis.

EXAMINATION PROGRAM SCAN TIME IMAGE SIZE
LATERAL 12.9 sec 21x23cm (8.3x9.1")
FULL LATERAL 16.9 sec 27x23cm (10.6x9.1")

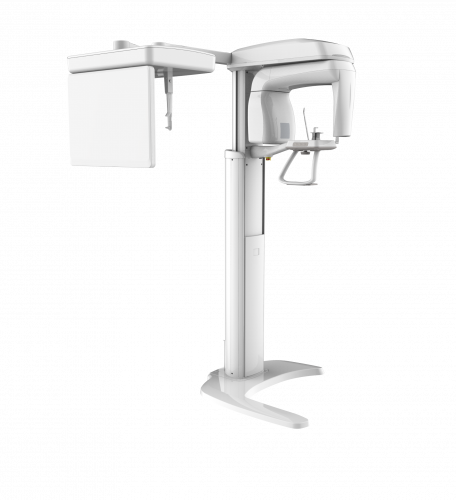

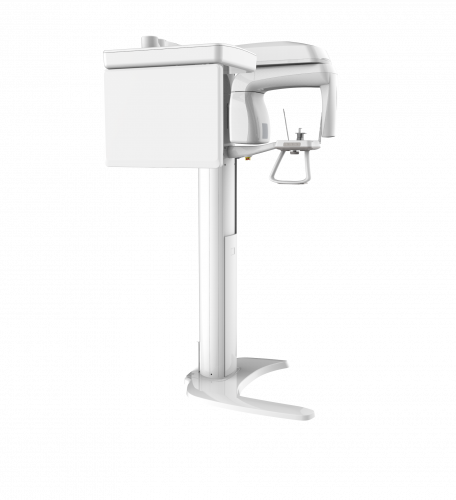

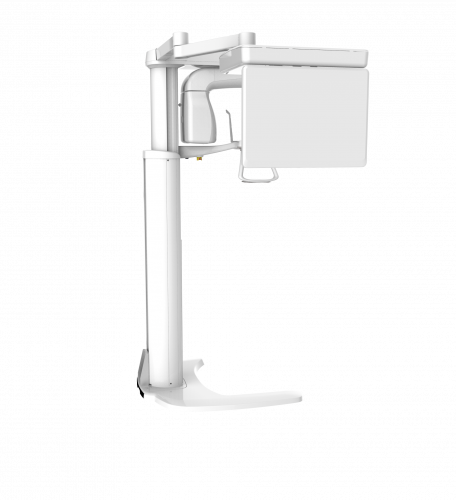

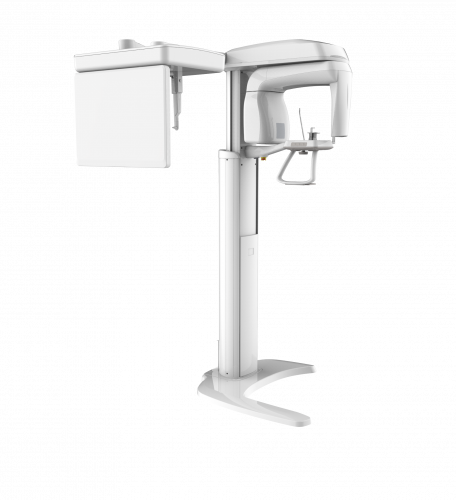

CEPHALOMETRIC – ONE SHOT TYPE

Superior image quality will be delivered using the a-Si TFT sensors. Three different ceph image sizes reduce unnecessary X-ray dosage and scans the ideal area of cranial anatomy for your diagnosis and treatment planning.

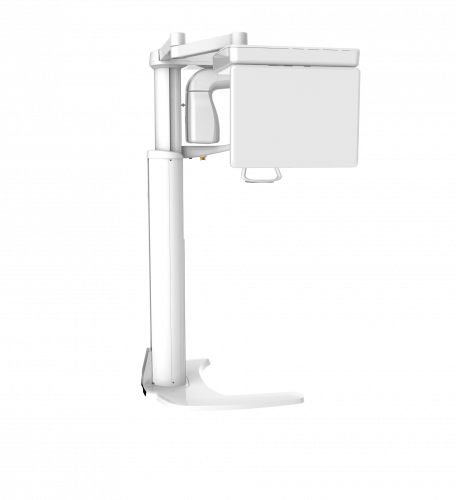

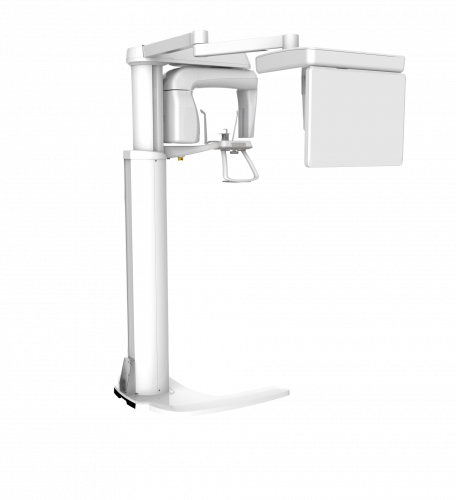

OP (One Shot Premium)

30x25cm (12"x10")

PA



CARPUS



SMV (Submentovertex)



CONFIGURATION

TYPE PANO CEPH (SCAN) CEPH (ONE SHOT)

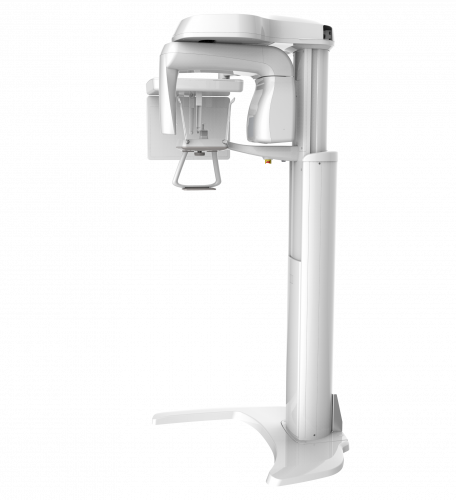

PaX-i

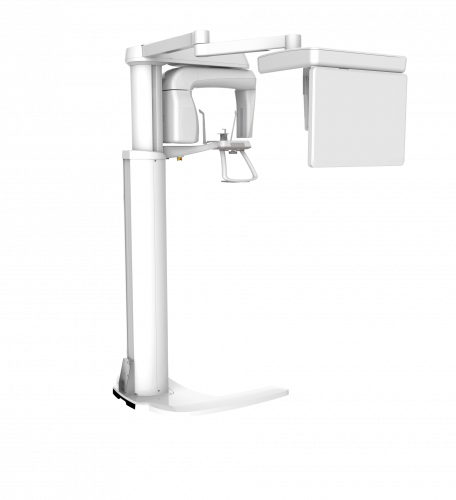

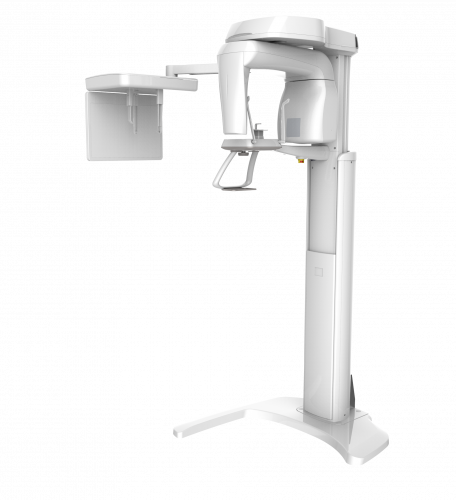

PaX-i SC

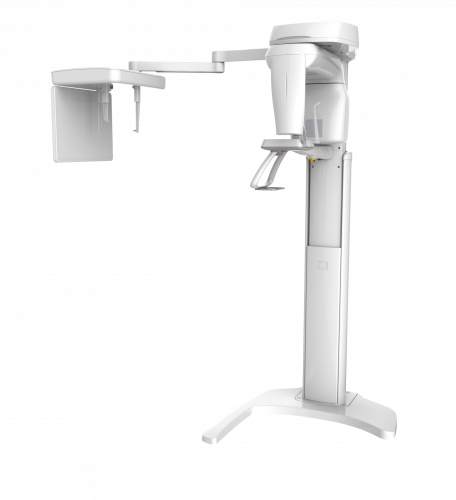

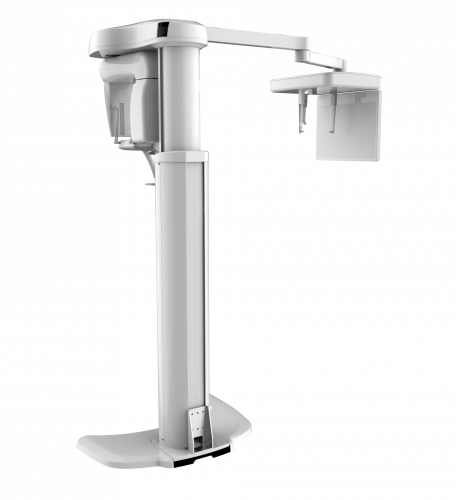

PaX-i OP

SPECIFICATION

PaX-i: PCH-2500
FUNCTION SCAN TIME FOCAL SPOT TUBE VOLTAGE/CURRENT
Pano + Ceph Pano: HD 13.5 sec/ Normal 10.1
Ceph: Scan 12.9 sec/ One-shot 0.9
0.5 mm 50-90 kVp/ 4-10 mA
CEPH FOV SIZE GRAY SCALE PATIENT POSITIONING
SC   8.3” x 9.1” [LAT, PA, SMV, Waters View, Carpus] 10.6” x 9.1” [Full LAT]
OP   12" x 10" [LAT, PA, SMV, Waters View, Carpus]
14 bit Standing / Wheel-Chair Accessible

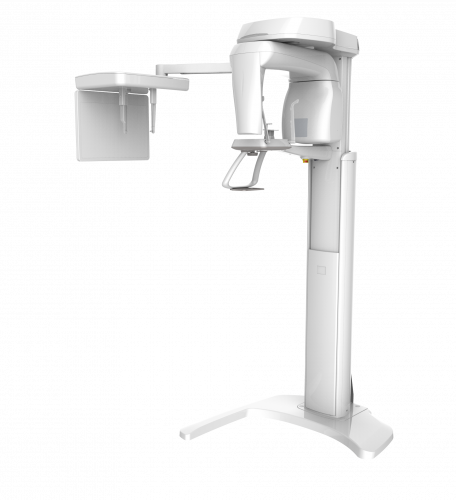

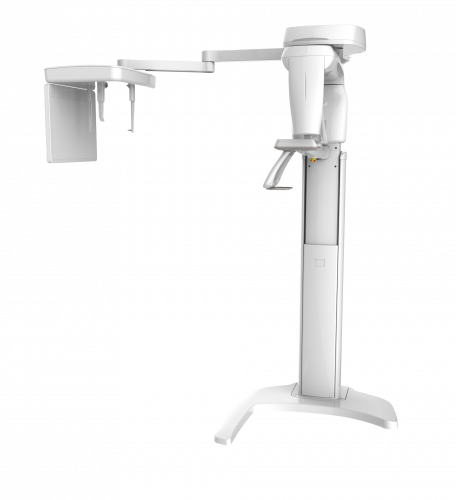

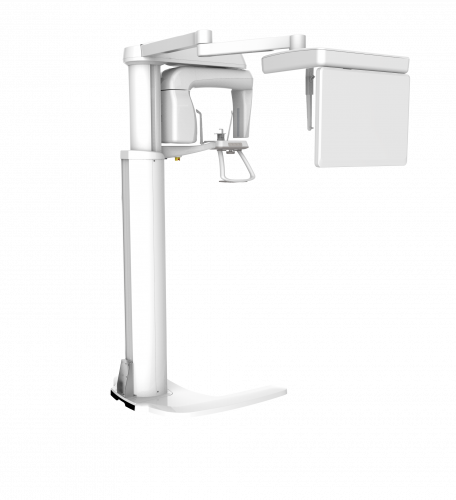

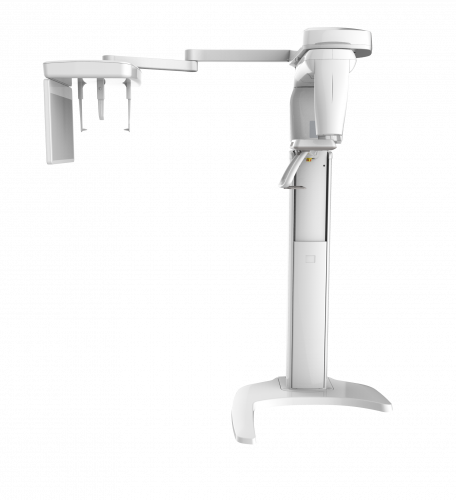

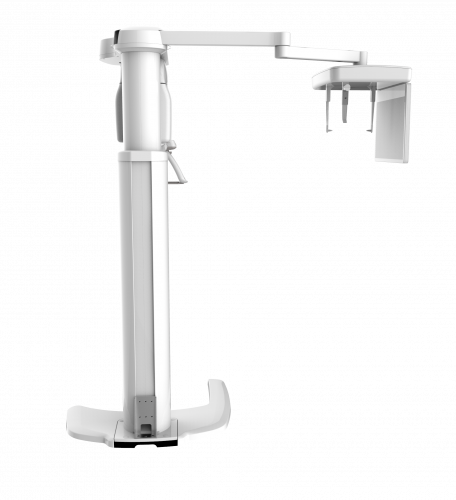

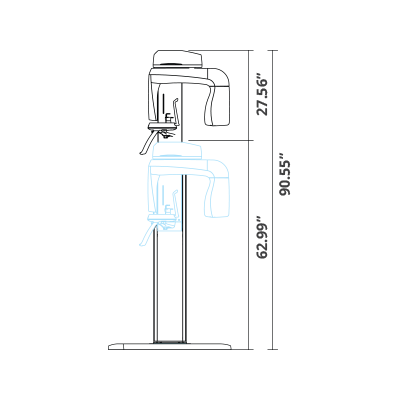

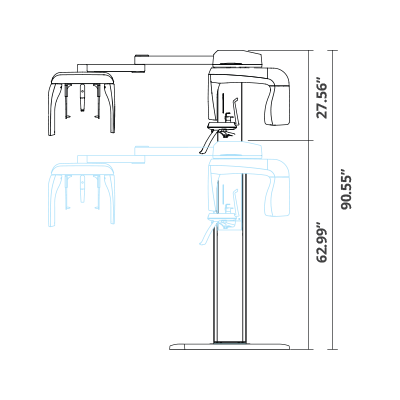

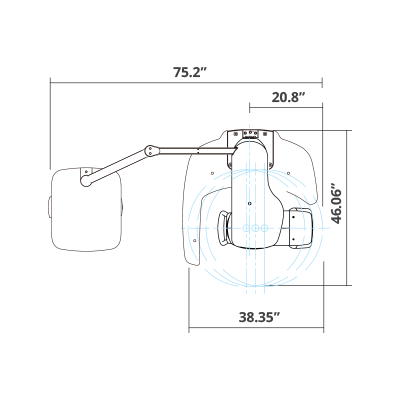

DIMENSION

TYPE TOP VIEW FRONT VIEW

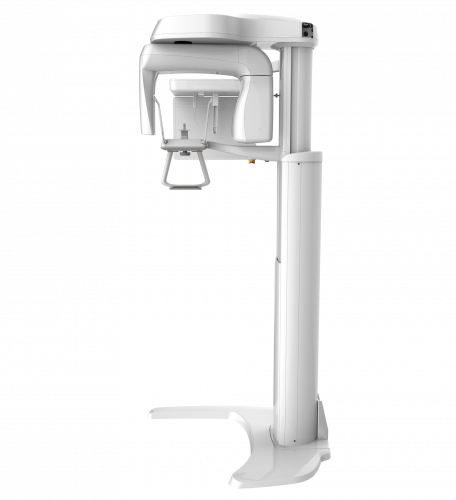

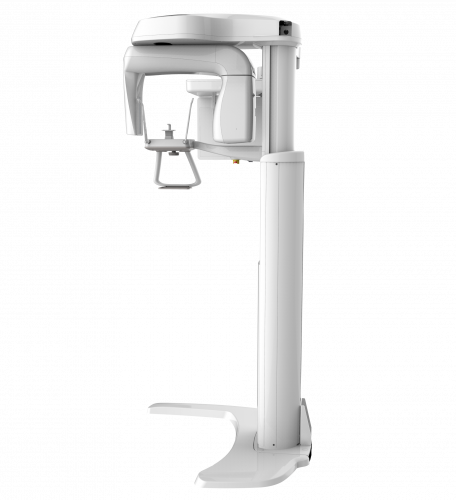

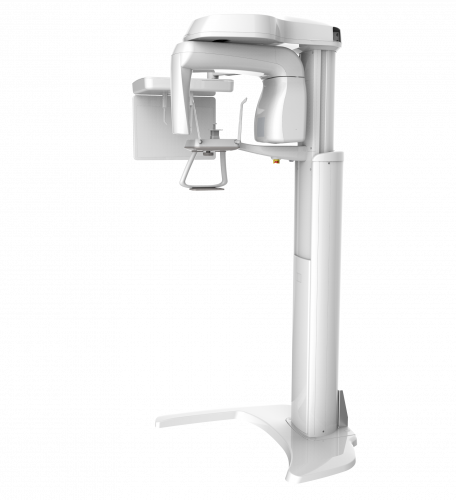

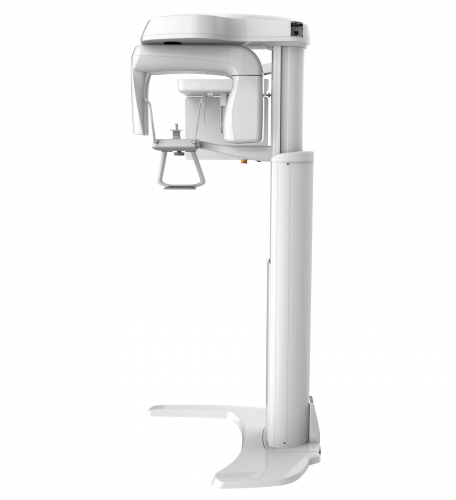

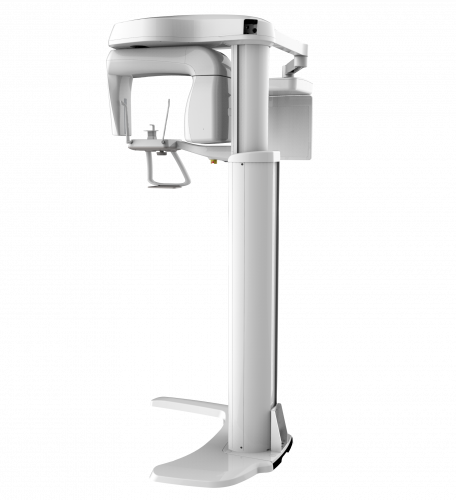

PaX-i
(Pano)

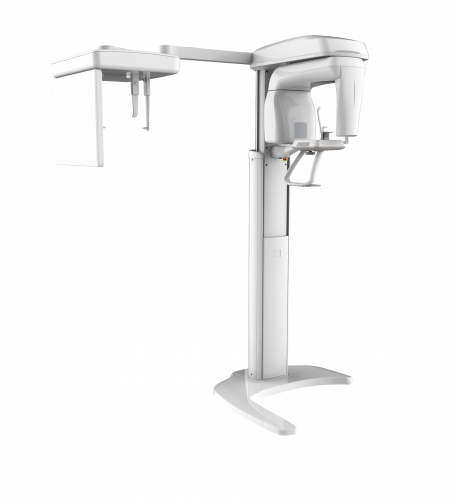

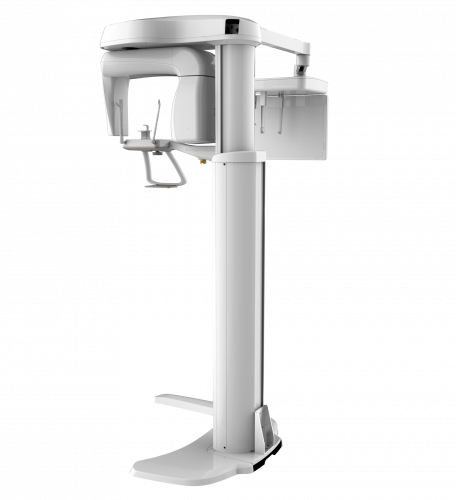

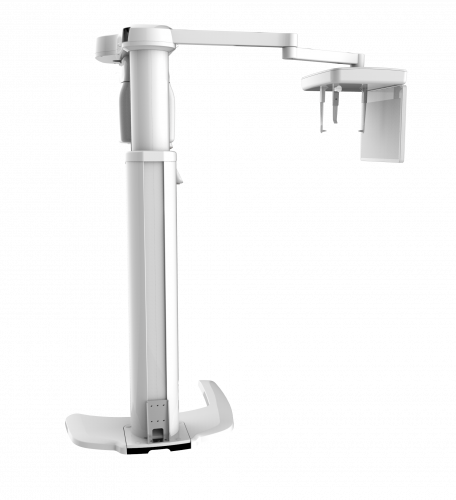

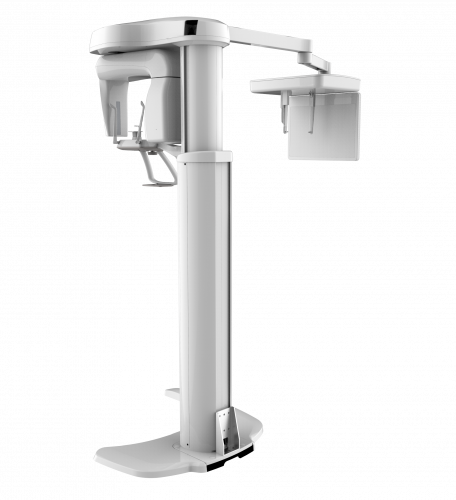

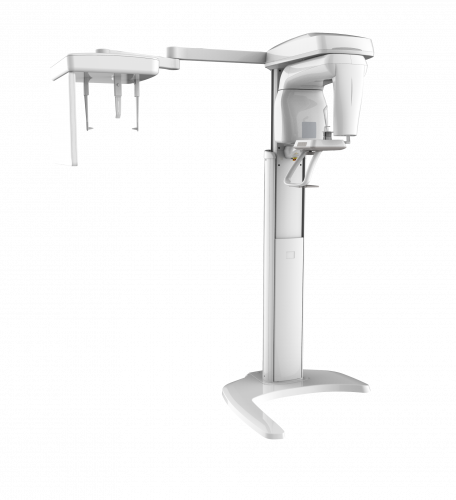

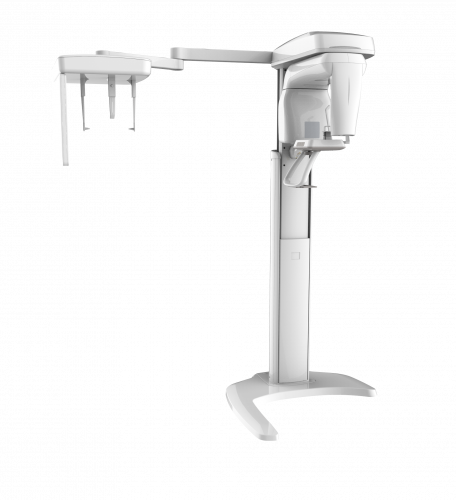

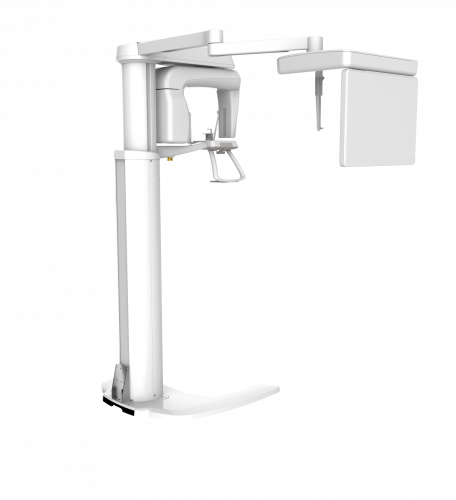

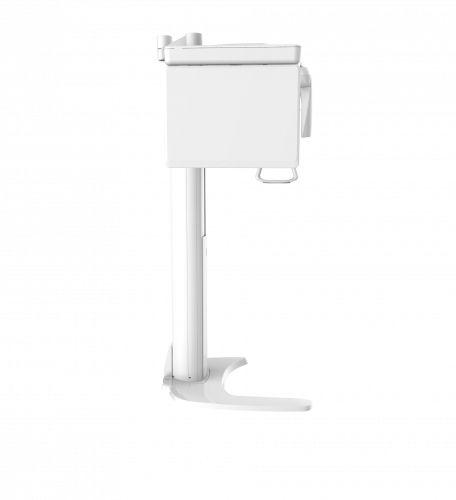

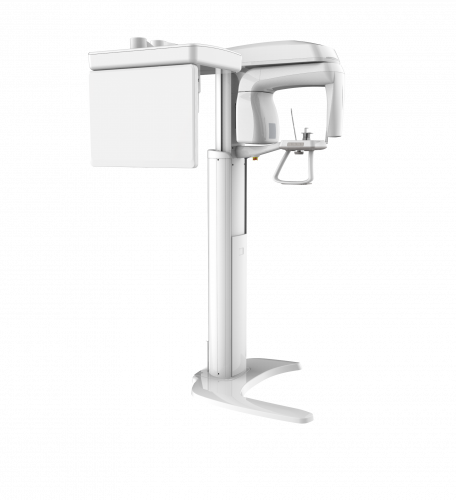

PaX-i SC
(Pano/Scan Ceph)

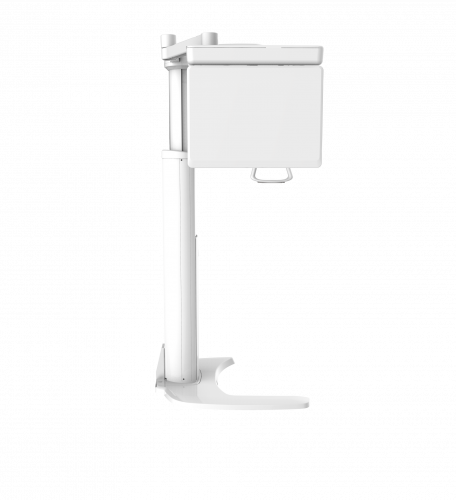

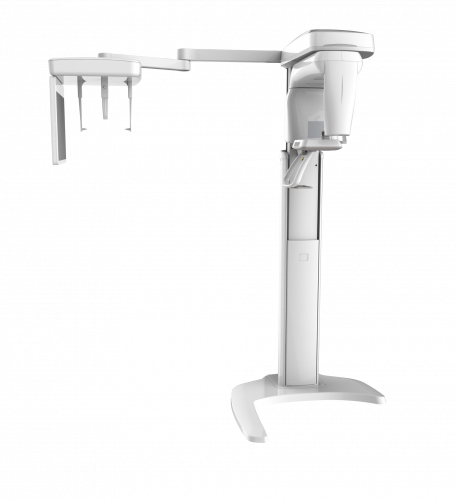

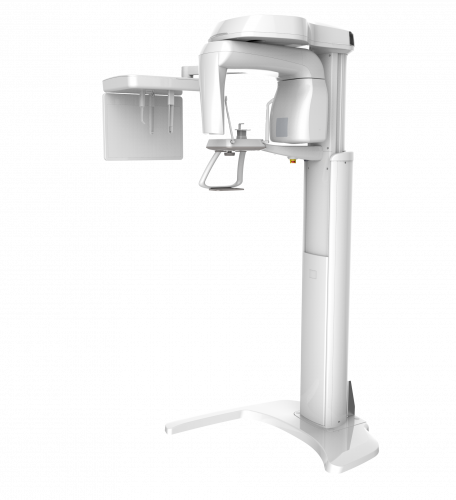

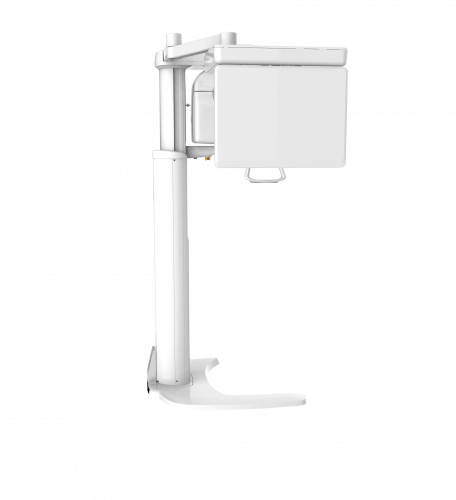

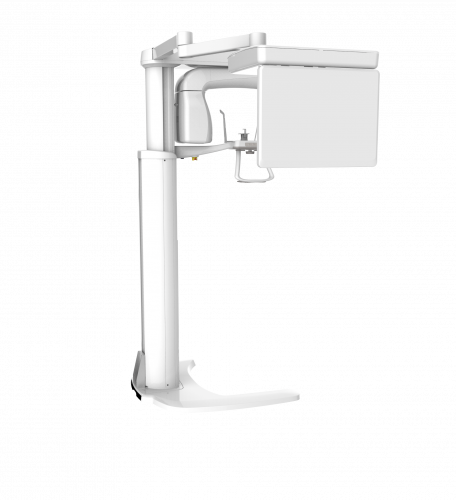

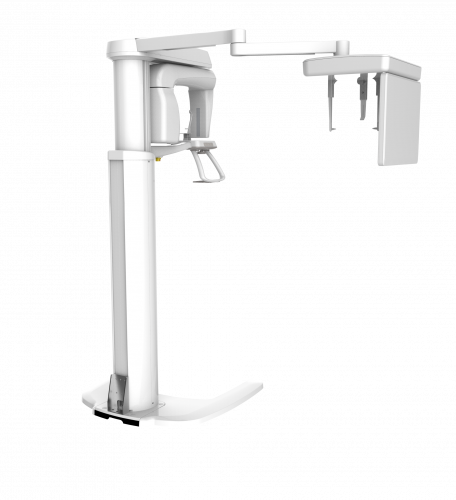

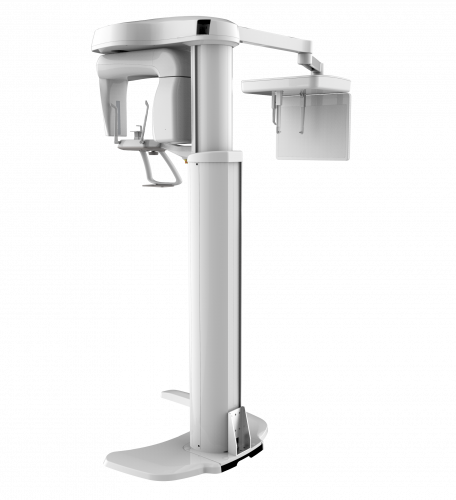

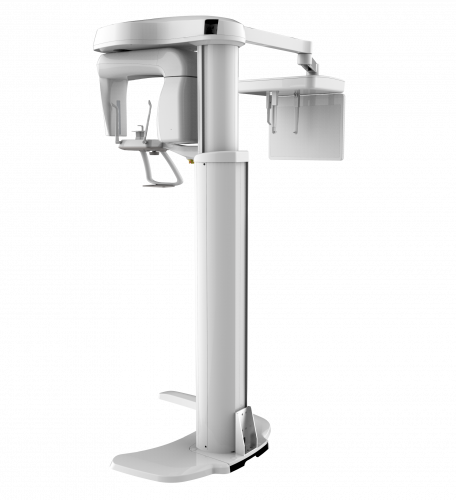

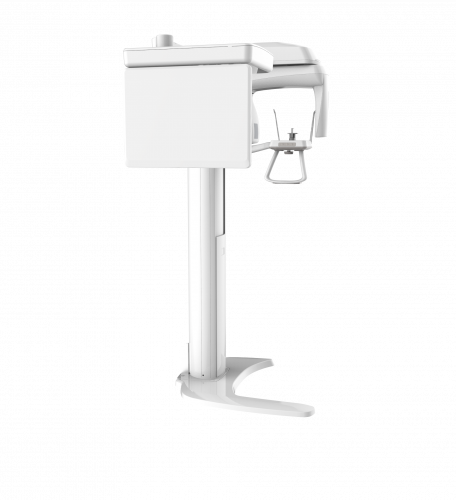

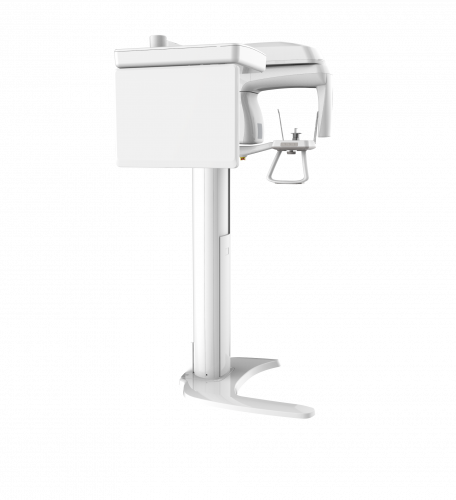

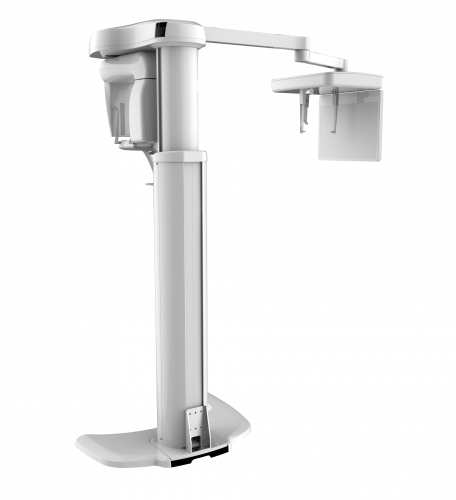

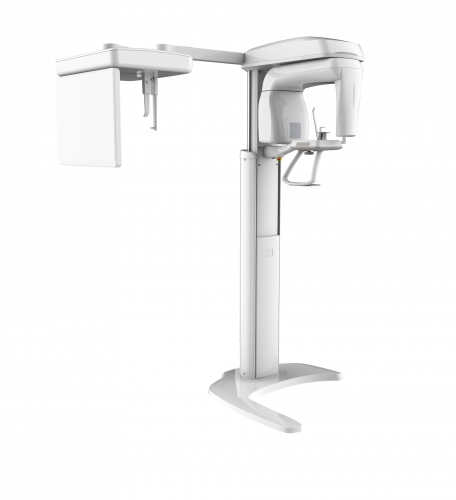

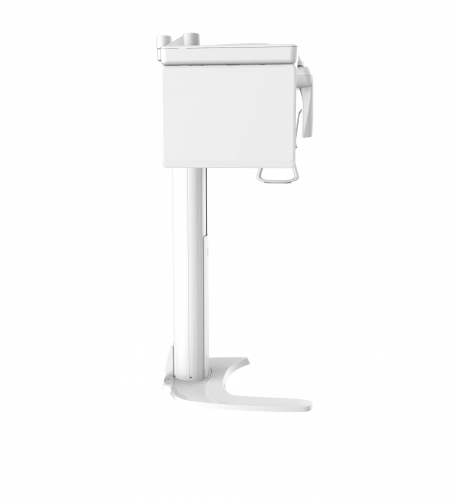

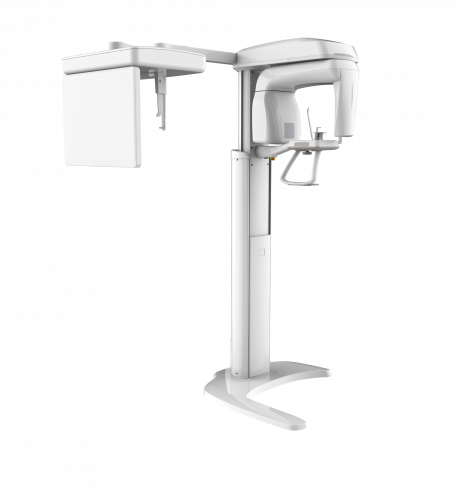

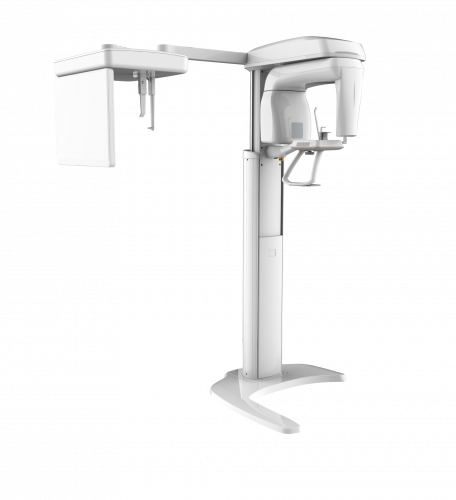

PaX-i OP
(Pano/One Shot Ceph)

* An additional 7.5 inches(191 mm) of space is required behind the unit for wall mount bracket installation (mandatory unless there is a base mount installation).

IMAGES

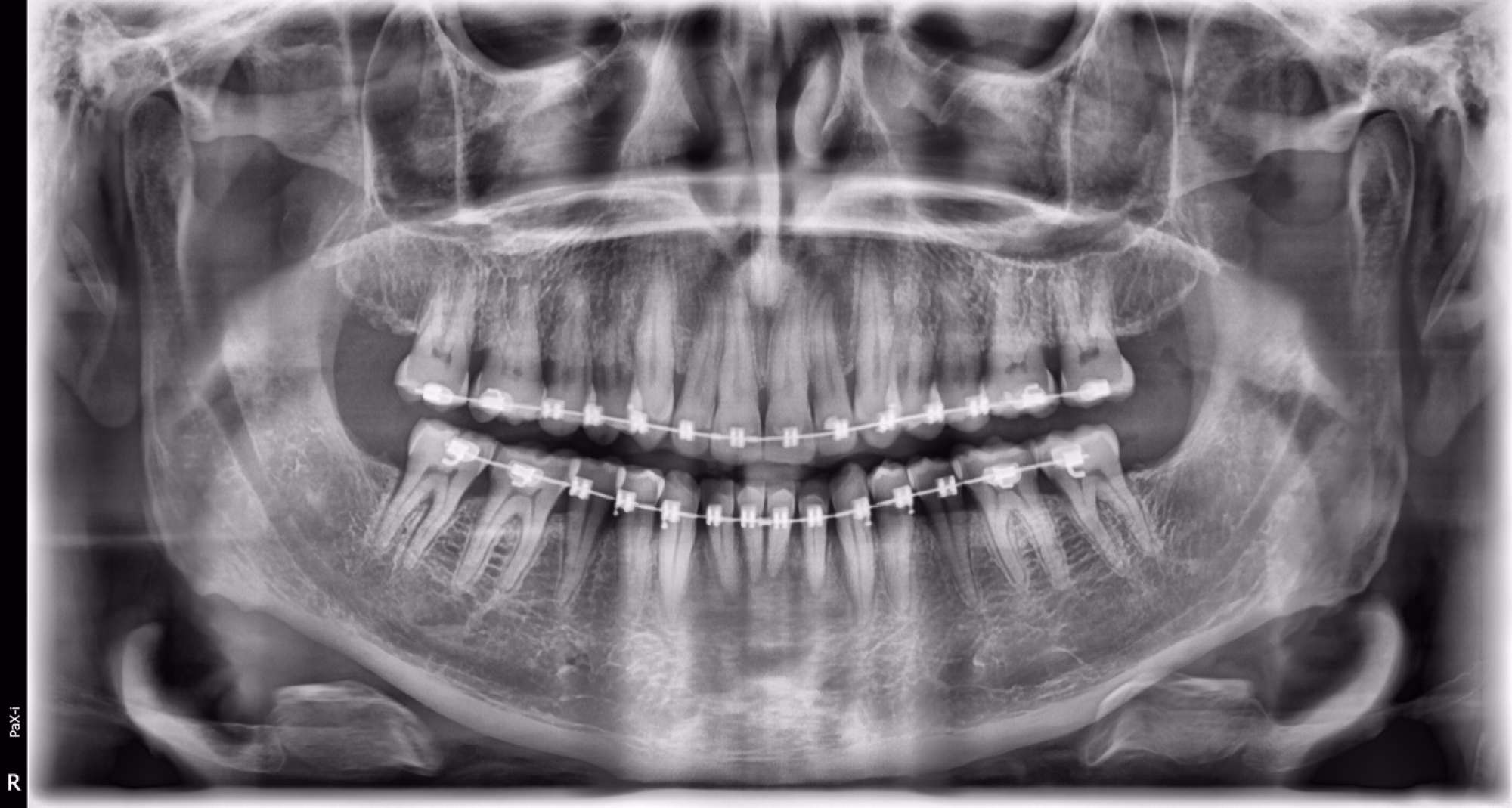

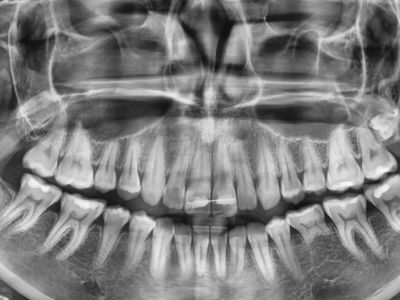

PANO

Click images to enlarge

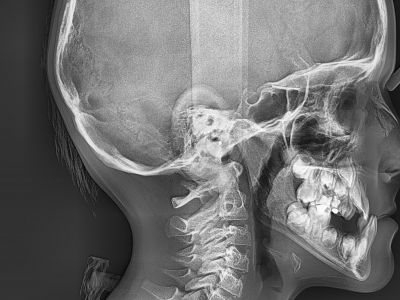

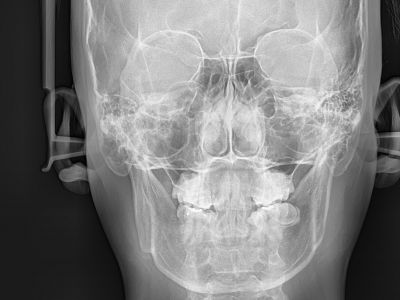

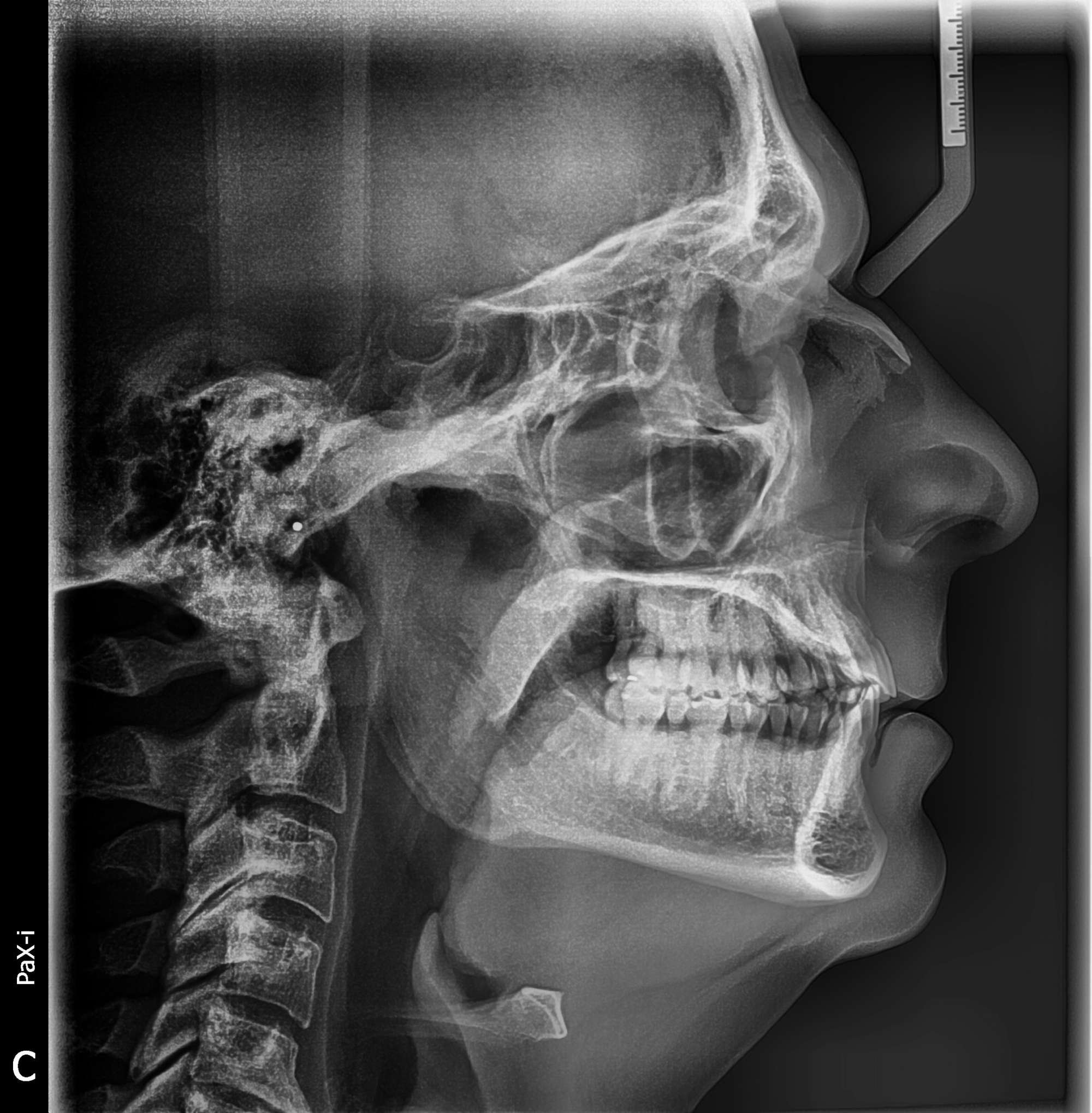

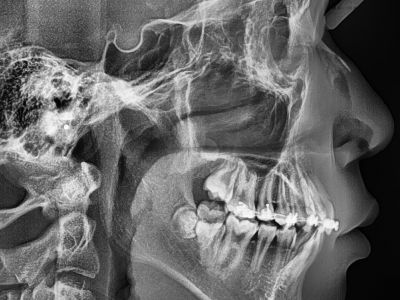

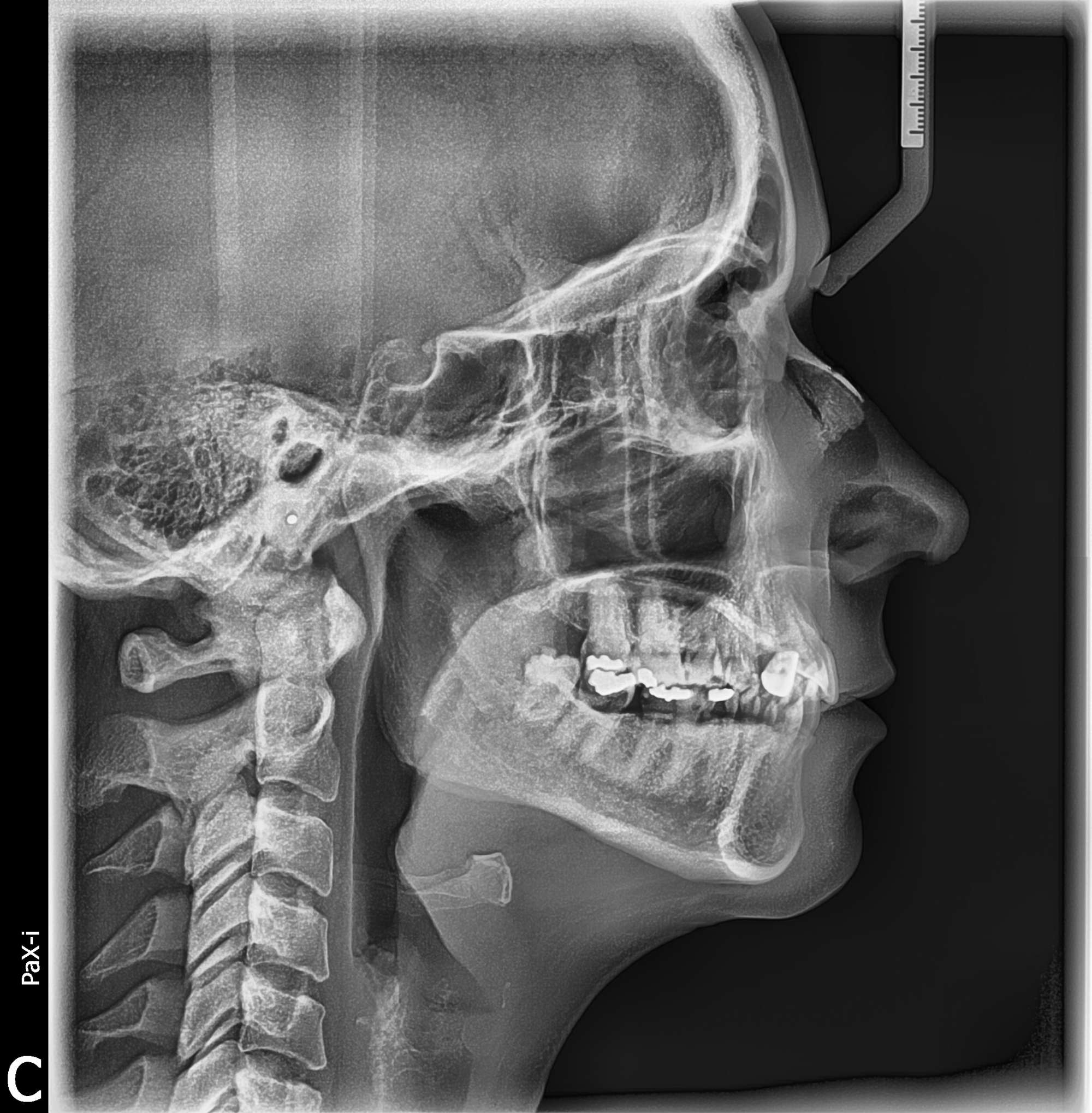

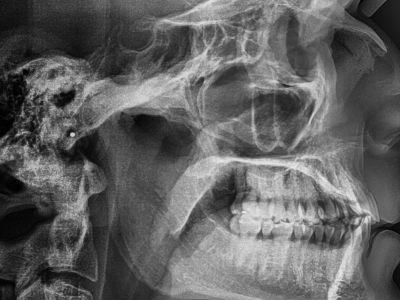

CEPH

Click images to enlarge

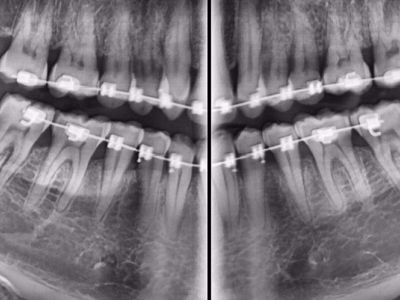

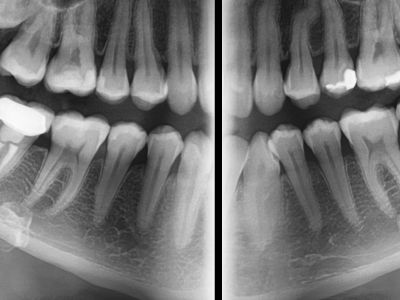

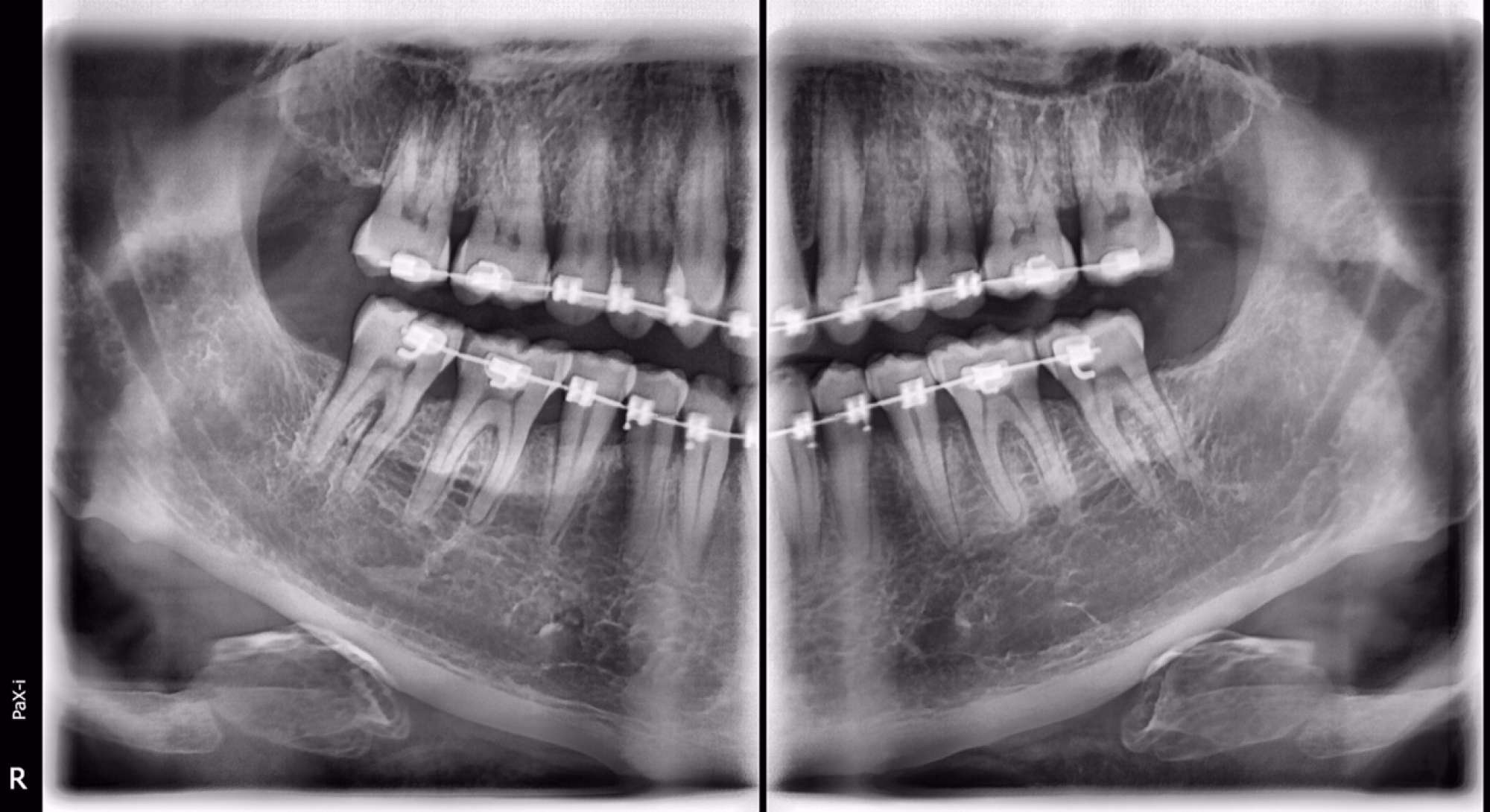

BITEWING
