The PaX-i Plus provides precise and high-quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech. This will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.
| SECTION | ARCH | EXAMINATION MODE |
|---|---|---|
| PANO EXAMINATION | Narrow / Normal Wide / Child | Standard / Right / Front / Left |
| PANO EXAMINATION | Orthogonal | Orthogonal Standard / Right / Front / Left Bitewing Standard / Right / Front / Left |
| SPECIAL EXAMINATION | Normal | TMJ LAT Open / Close TMJ PA Open / Close Sinus LAT / PA |
The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the high-quality digital images.
| PANO | CEPH | |
|---|---|---|
| PaX-i Plus RC | | |
| FUNCTION | FOCAL SPOT | SCAN TIME | GRAY SCALE |
|---|---|---|---|
| Pano + Ceph | 0.5 mm (IEC60336) | Pano - Normal (10.4 sec) / HD (14 sec) Ceph - 1.9 / 3.9 sec |
14 bit |
| TUBE VOLTAGE/CURRENT | WEIGHT | DIMENSIONS |
|---|---|---|
| 60 ~ 99 kV / 4 ~ 10 mA | With Ceph unit : 120 kg (264.5 lbs. – without Base) | With Ceph unit : 75.99 in (L) x 47.24 in (W) x 90.55 in (H) |
* The specifications are subject to change without prior notice.

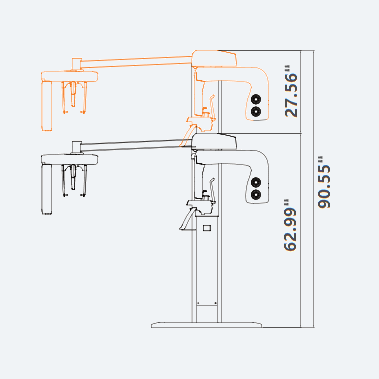

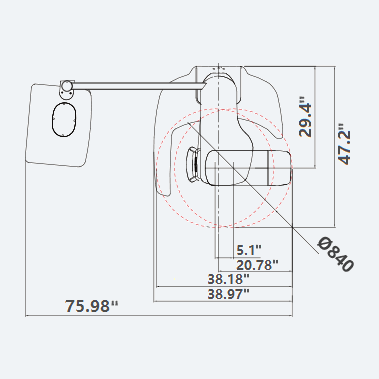

| TOP VIEW | FRONT VIEW | |
|---|---|---|
|
PaX-i RC (Rapid Ceph) |
|
|
