FEATURES

SPEED, QUALITY, PREDICTABILITY

NO COMPROMISE
pax-i-insight feature1

DESCRIPTION

Innovative 3rd Generation compressed sensing technology

Vatech dramatically improves its image quality with much less artifact and noise via its Compressed Sensing Technology (CST), iterating its reconstruction process 10 times more than the normal amount to depict the object’s true representation.

Normal Image Reconstruction
Green X Reconstruction

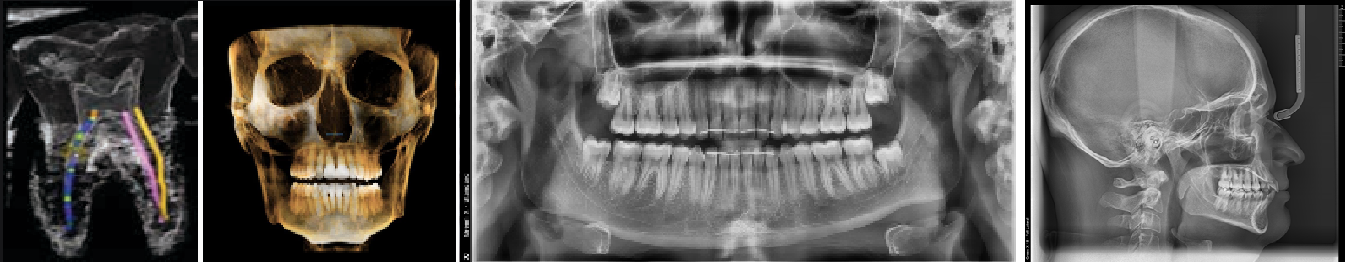

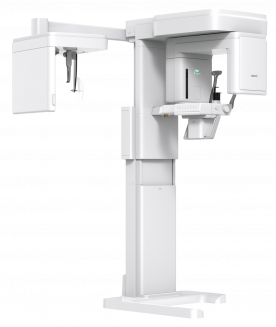

ADVANCED DIGITAL X-RAY

The Green X is an advanced digital X-ray imaging system that incorporates pano, ceph (Optional), CBCT and model scan. It provides high quality images with lower radiation by combining image processing with Vatech's extensive experience in the dental imaging field. This will improve your diagnostic accuracy, which will lead to increased treatment planning and patient satisfaction.

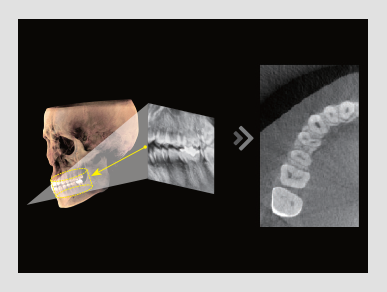

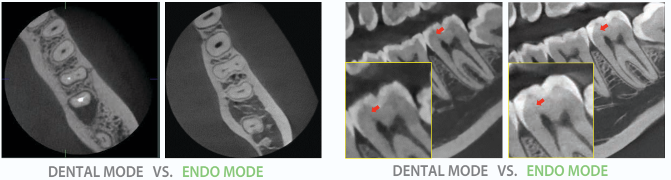

Highest resolution with 0.05 mm voxel size

With its 4cm x 4cm volume mode and 50 micron voxel size, the Endo mode will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

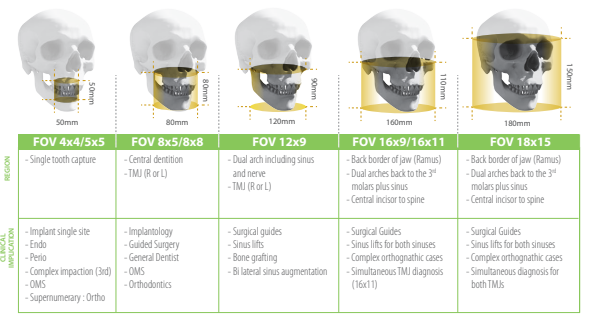

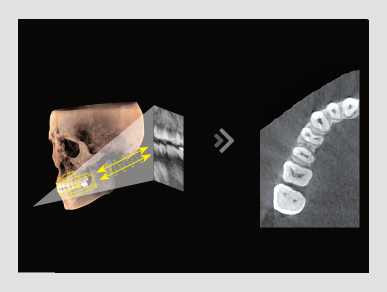

Large single scan FOV

The Green X offers a range of selectable fields of view. The Multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 18x15, 16x11, 12x9, 8x8, 8x5, 5x5 and 4x4. These options cover the full arch region, sinus and left/right TMJ, and suits most oral surgery cases and multiple implant surgeries.

Fastest Scan time

Due to its scan time, the Green X minimizes motion artifact and enables faster workflow. It produces superb diagnostic
images, which will be a source of pride for any dental practice. Focusing on the highest quality of patient care,
Vatech strives to improve the health and safety of your patients.

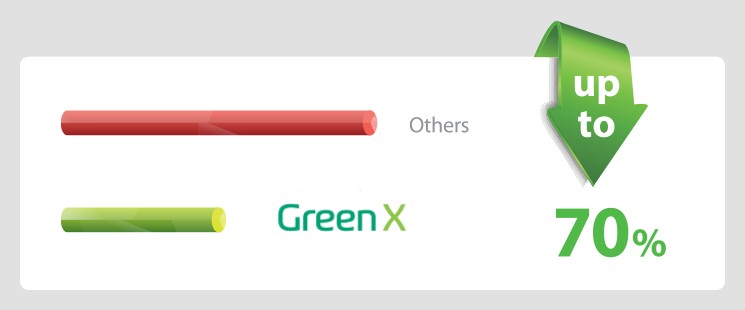

Green Low dose with high quality images

What Vatech has developed breaks many dental radiography conventions. It was always believed that with low radiation comes inferior image quality, which renders the image useless for a clinical diagnosis. However, the Green X provides clinically diagnosable x-ray scans at a low x-ray dosage. With low dose x-ray radiography, achieving clinically diagnosable image quality is the new gold standard.

EFFECTIVE DOSE DATA

SPECIFICATIONS

Green X 18 : PHT-75CHS
FUNCTION FOCAL SPOT SIZE CT FOV SIZE VOXEL SIZE SCAN TIME GRAY SCALE TUBE VOLTAGE / CURRENT WEIGHT DIMENSIONS
CT + Pano + Ceph + Model Scan 0.5 mm (IEC 60336) 4x4, 5x5, 8x5, 8x8, 12x9, 16x11, 18x15 cm 4x4 : 0.05 mm
5x5 : 0.08 mm / 0.12 mm
8x5 / 8x8 : 0.12 mm / 0.2 mm
12x9 / 16x11 / 18x15 : 0.2 mm / 0.3 mm
PANO 4.0 sec / 14.1 sec
CEPH 1.9 sec / 4.9 sec
CBCT 2.9 sec (5x5-8x8) / 9.0 sec (12x9-18x15) / 18.0 sec (4x4)
14 Bit 60 - 99 kVp / 4 - 16 mA Without CEPH unit
365.74 lbs - without Base / 487.00 lbs - with Base
With CEPH unit
420.86 lbs - without Base / 542.11 lbs - with Base
Without CEPH unit
42.716” (L) x 52.893” (W) x 91.157” (H) - without Base
42.716” (L) x 52.893” (W) x 92.338” (H) - with Base
With CEPH unit
75.019” (L) x 54.129” (W) x 91.157” (H) - without Base
75.019” (L) x 54.129” (W) x 92.338” (H) - with Base

* The specifications are subject to change without prior notice.

DIMENSIONS

With CEPH unit Without CEPH unit

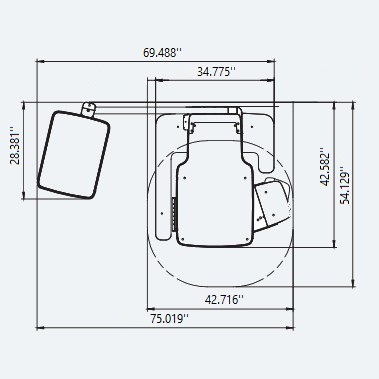

TOP VIEW

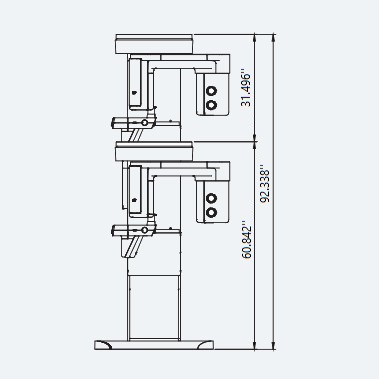

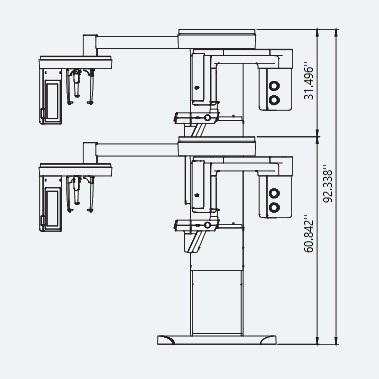

FRONT VIEW

* An additional 3 inches (76.2 mm) of space is required behind the unit for wall mount bracket installation
(mandatory unless there is a base mount installation).

IMAGES

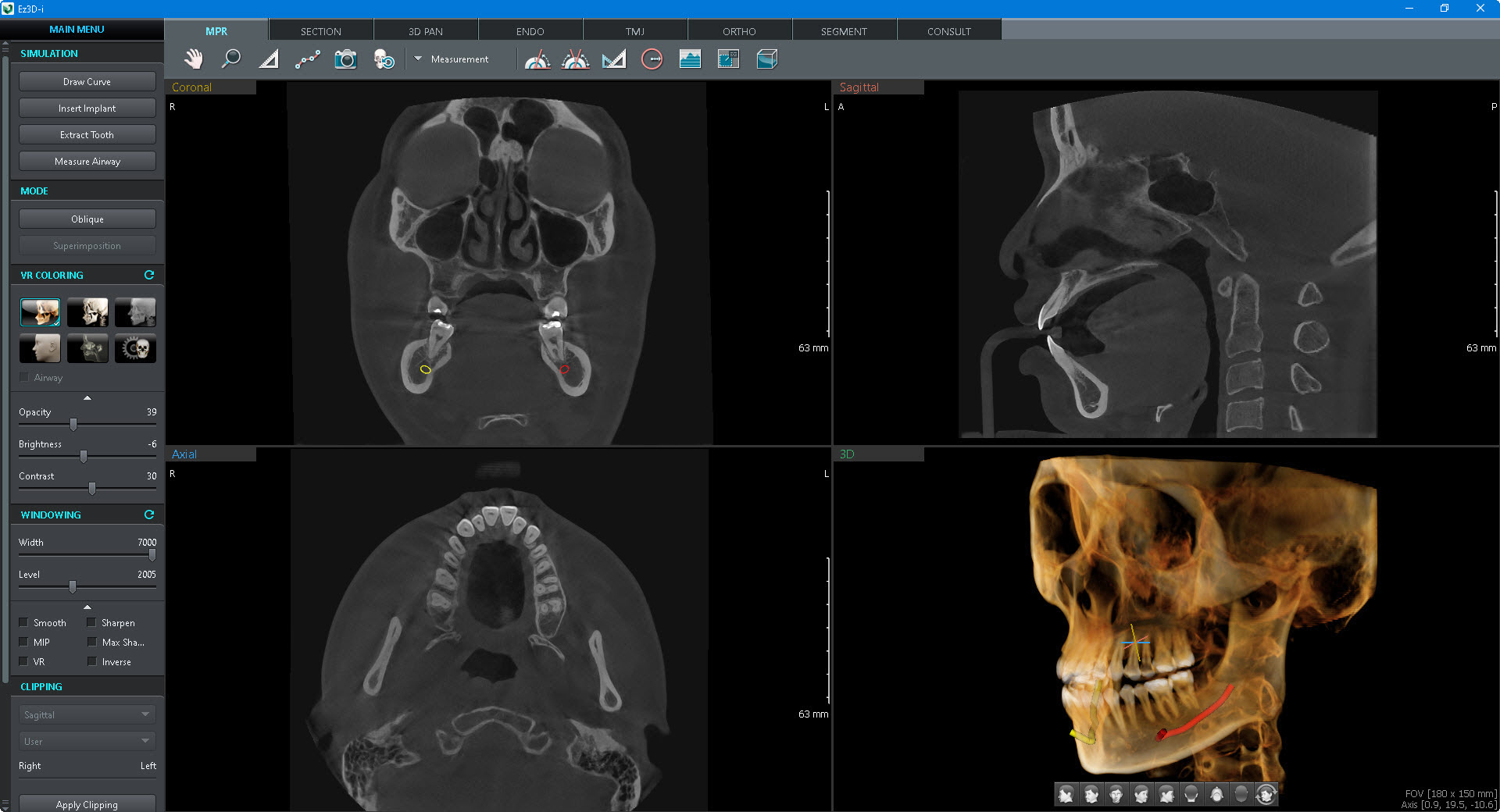

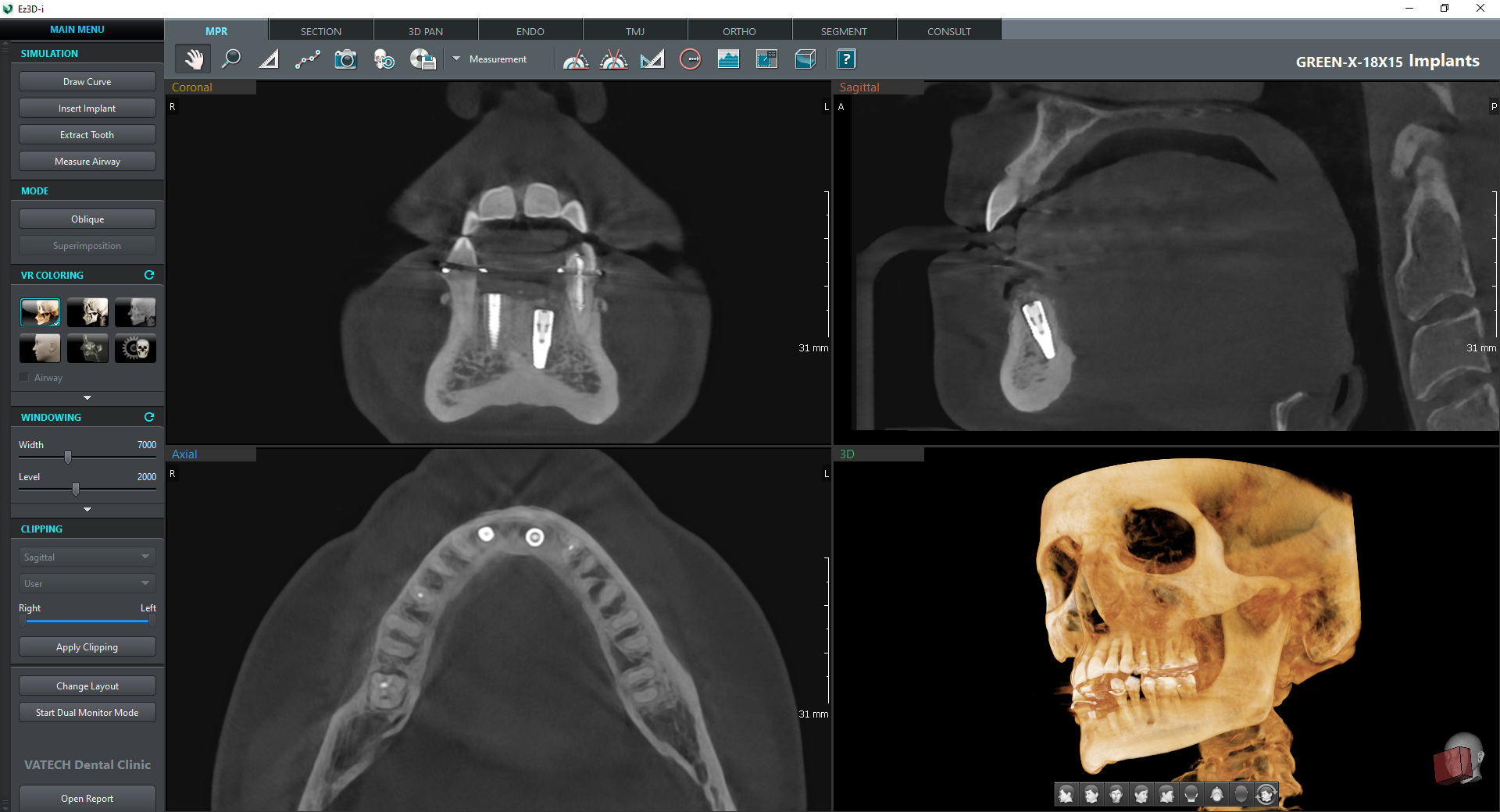

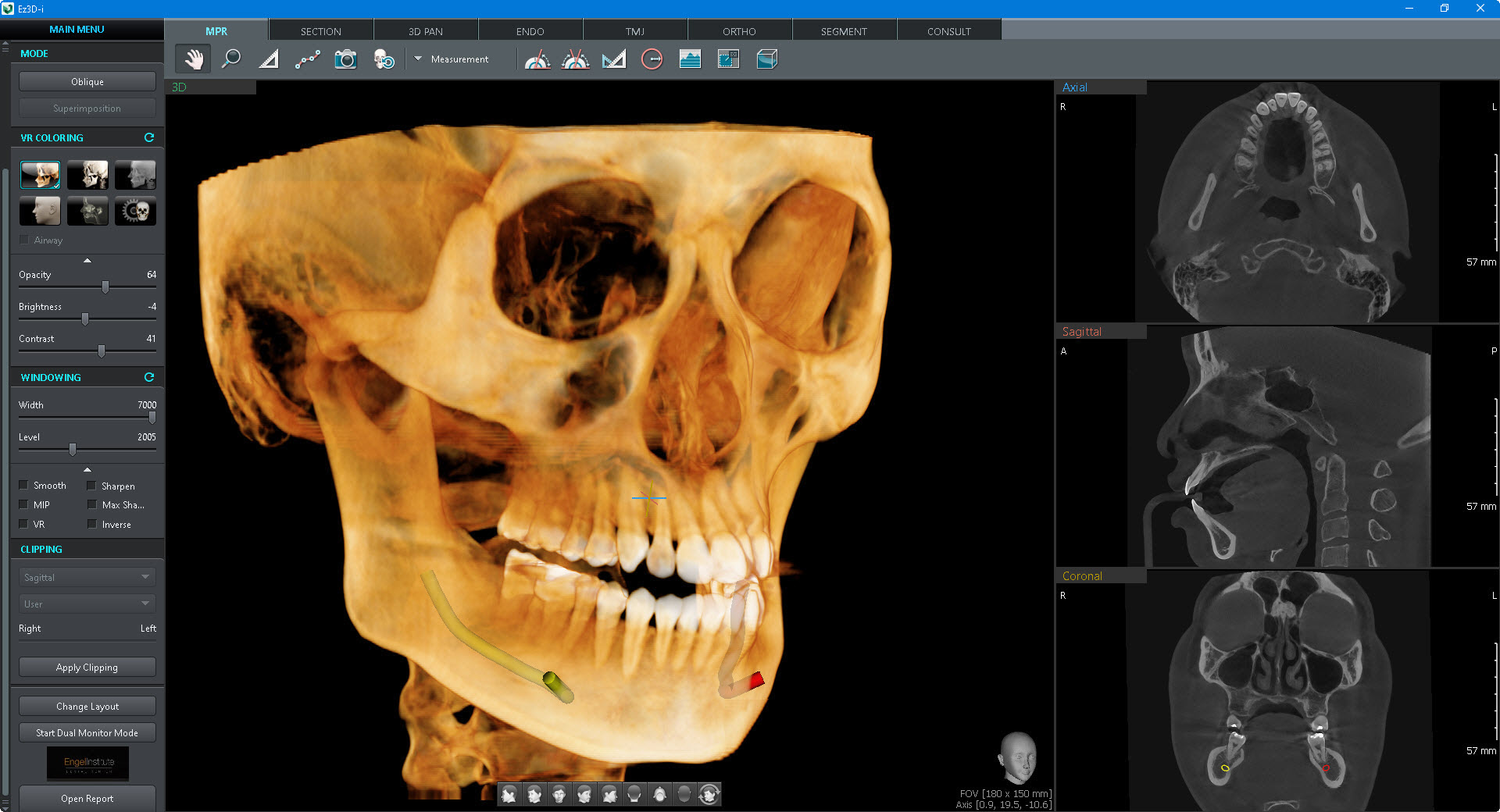

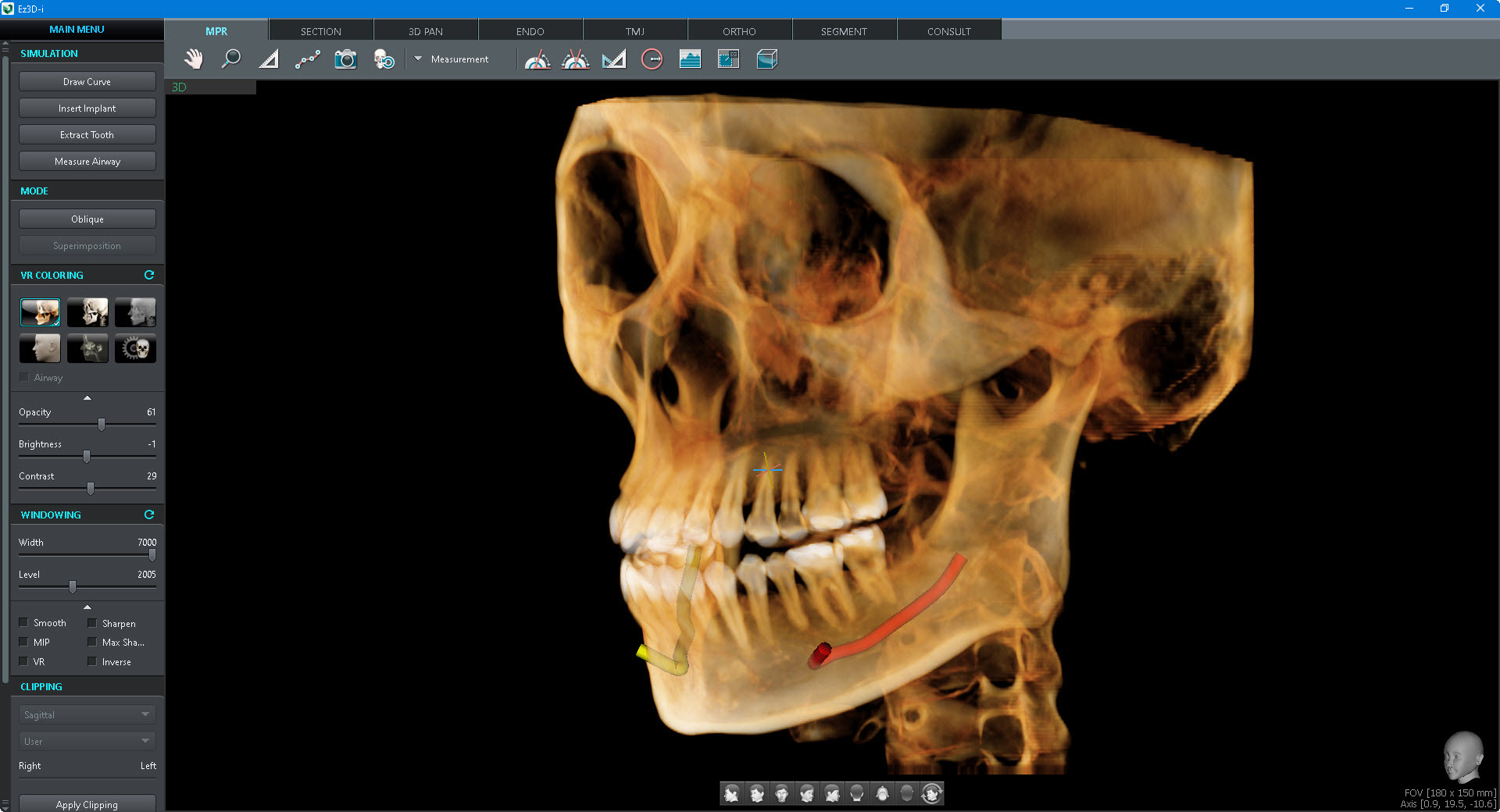

CT

Click images to enlarge

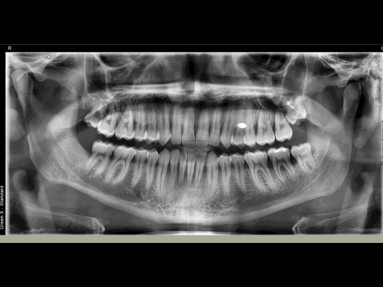

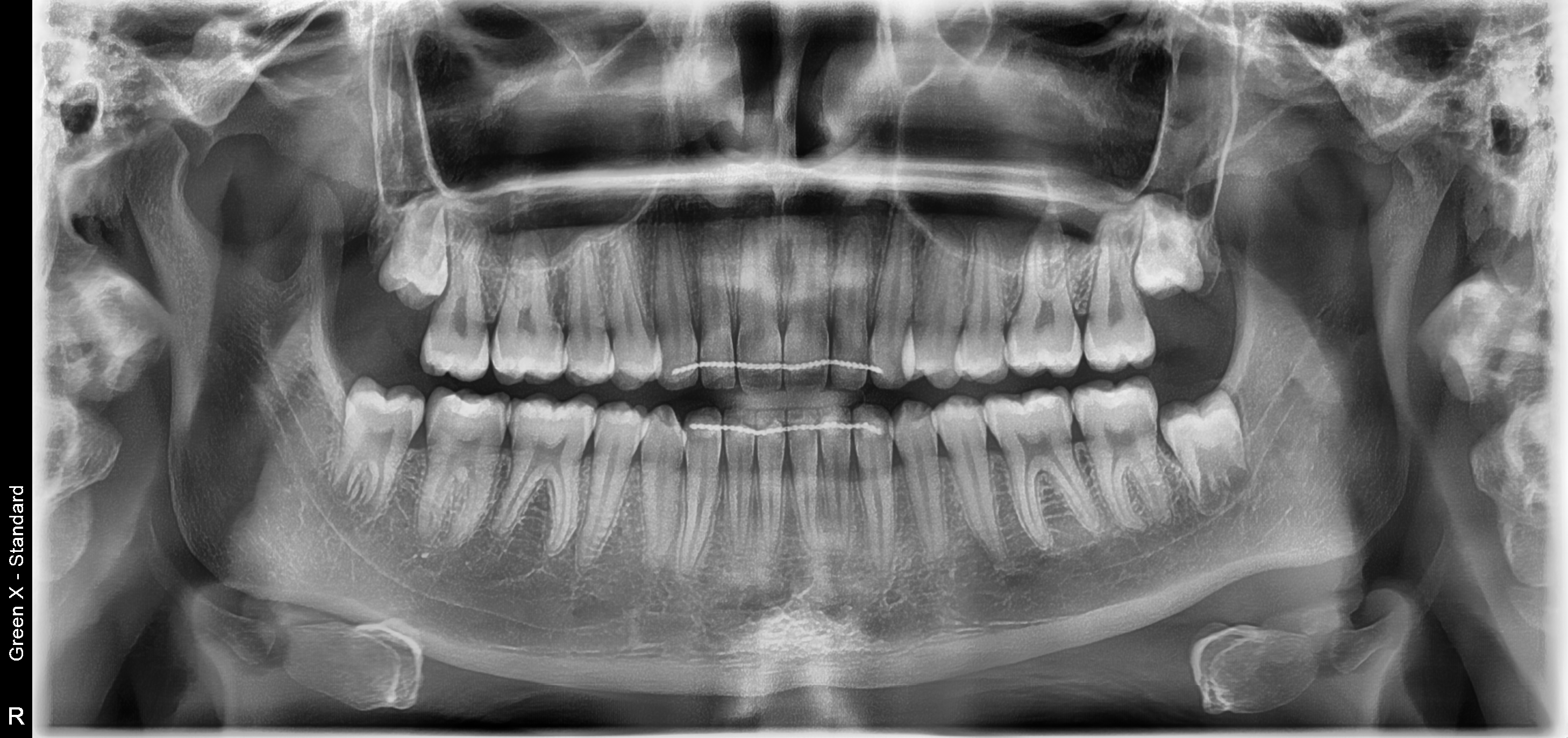

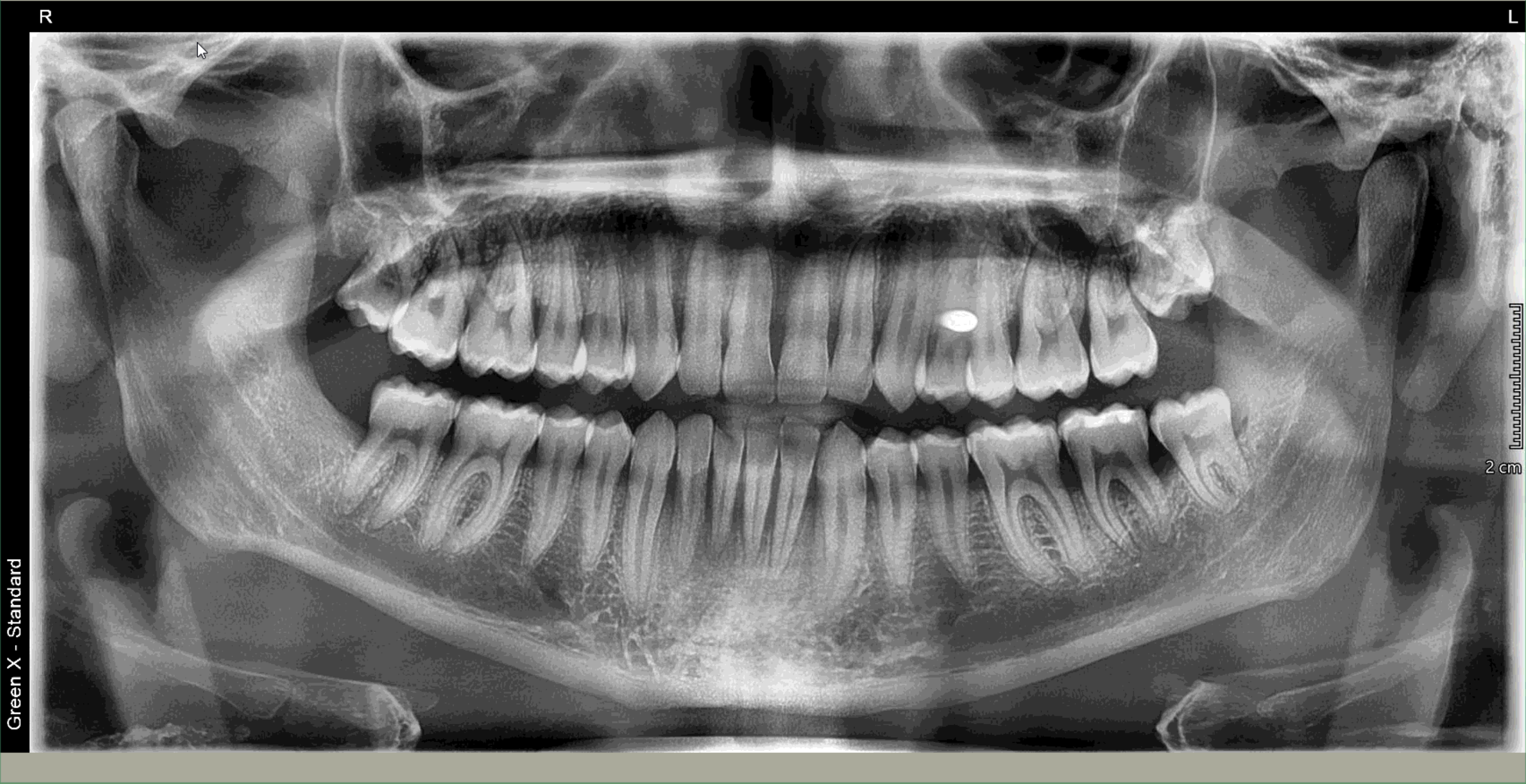

PANO

Click images to enlarge

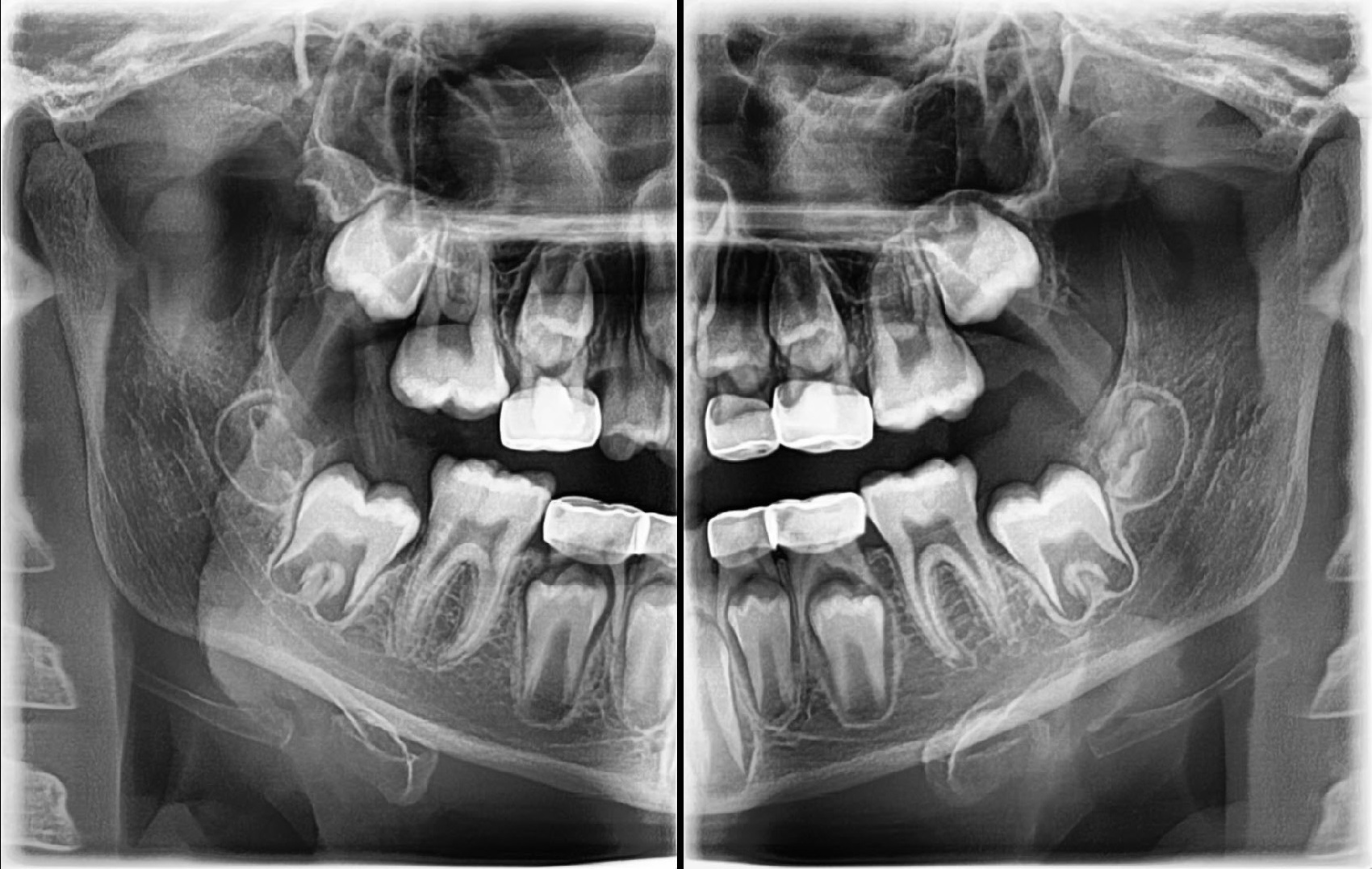

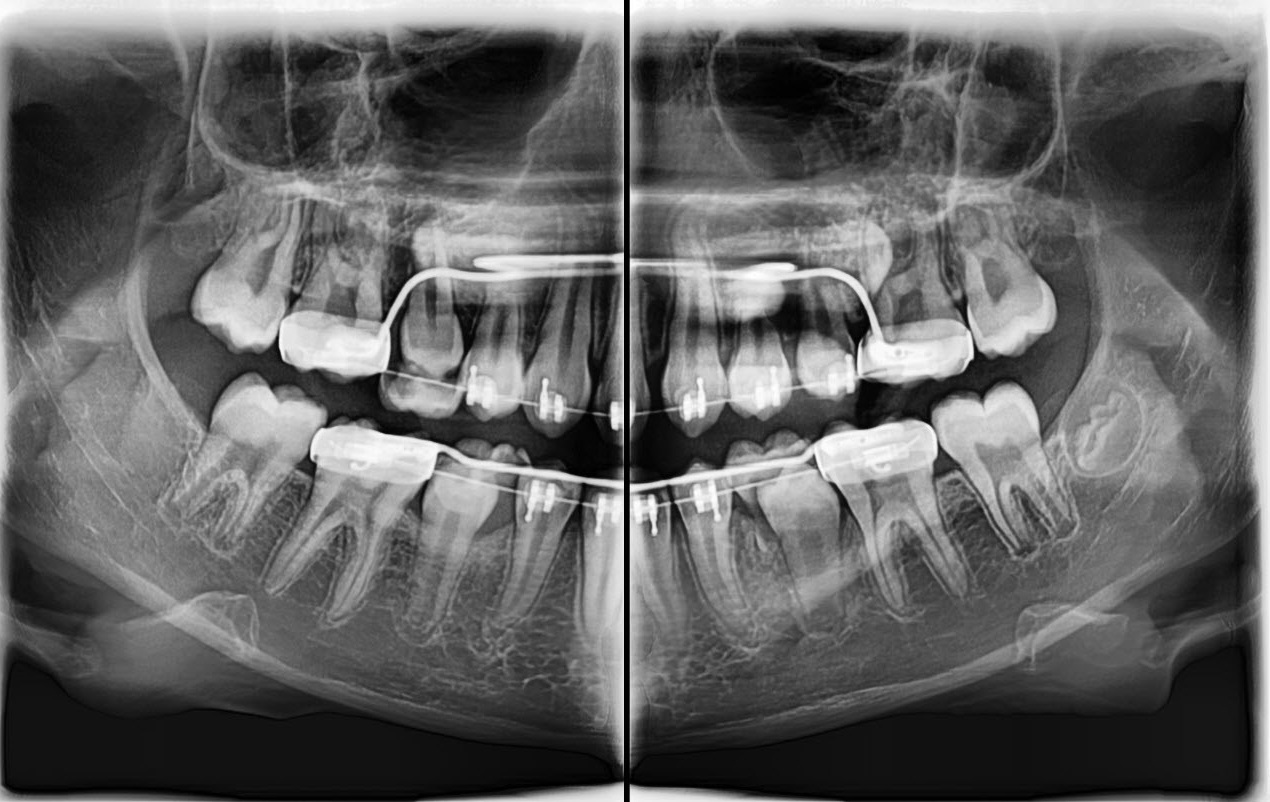

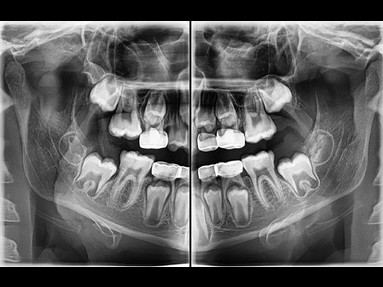

BITEWING

Click images to enlarge

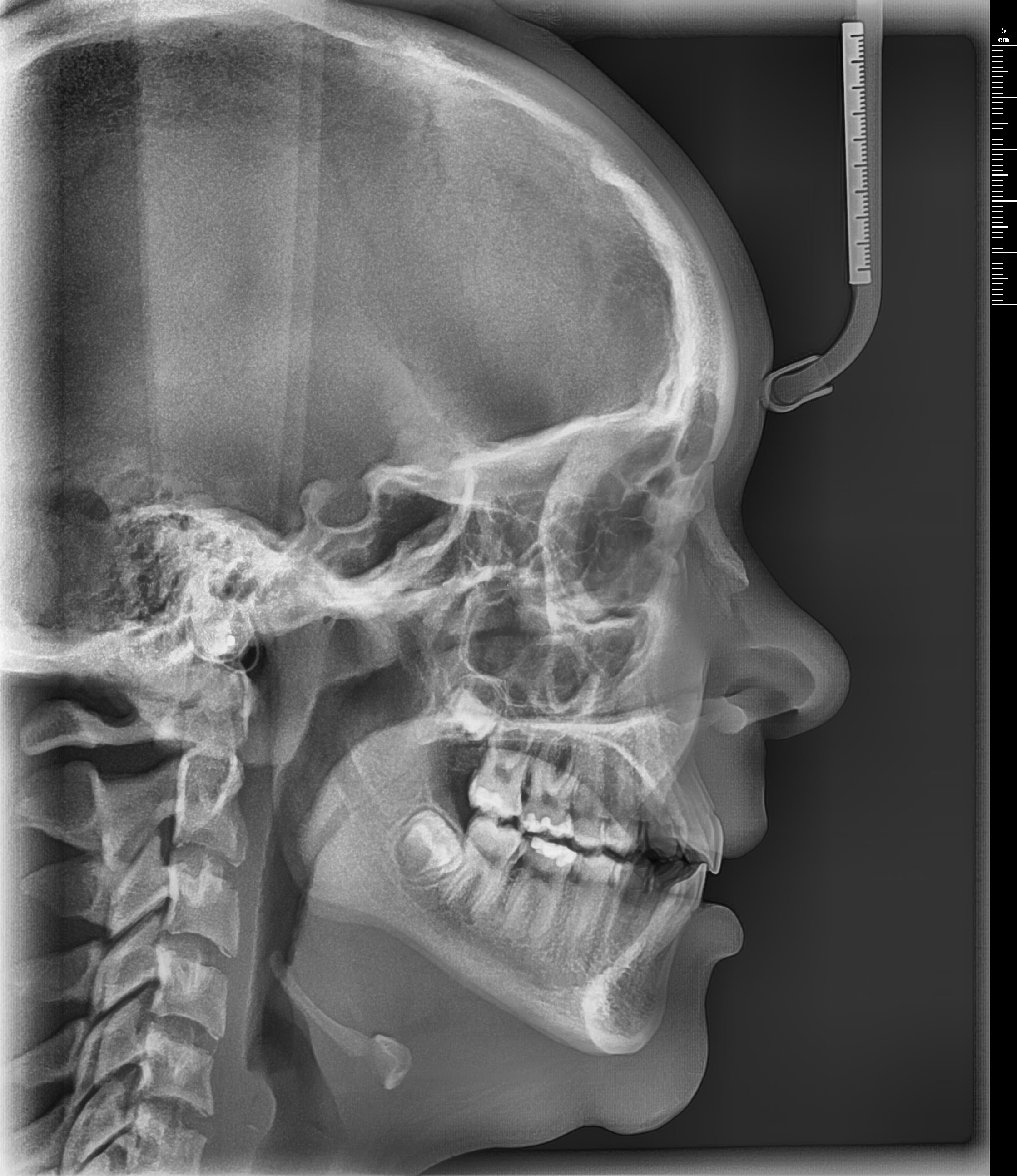

CEPH

Click images to enlarge
