FEATURES

THE START OF YOUR
CBCT JOURNEY

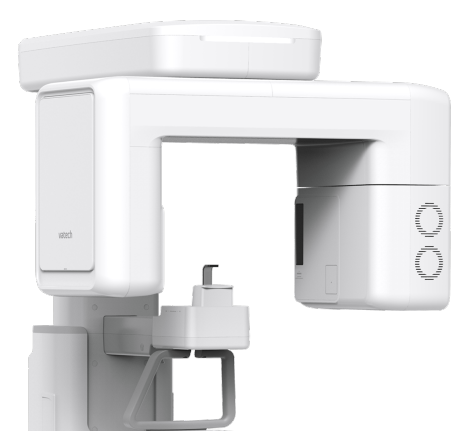

pax-i-insight feature1

DESCRIPTION

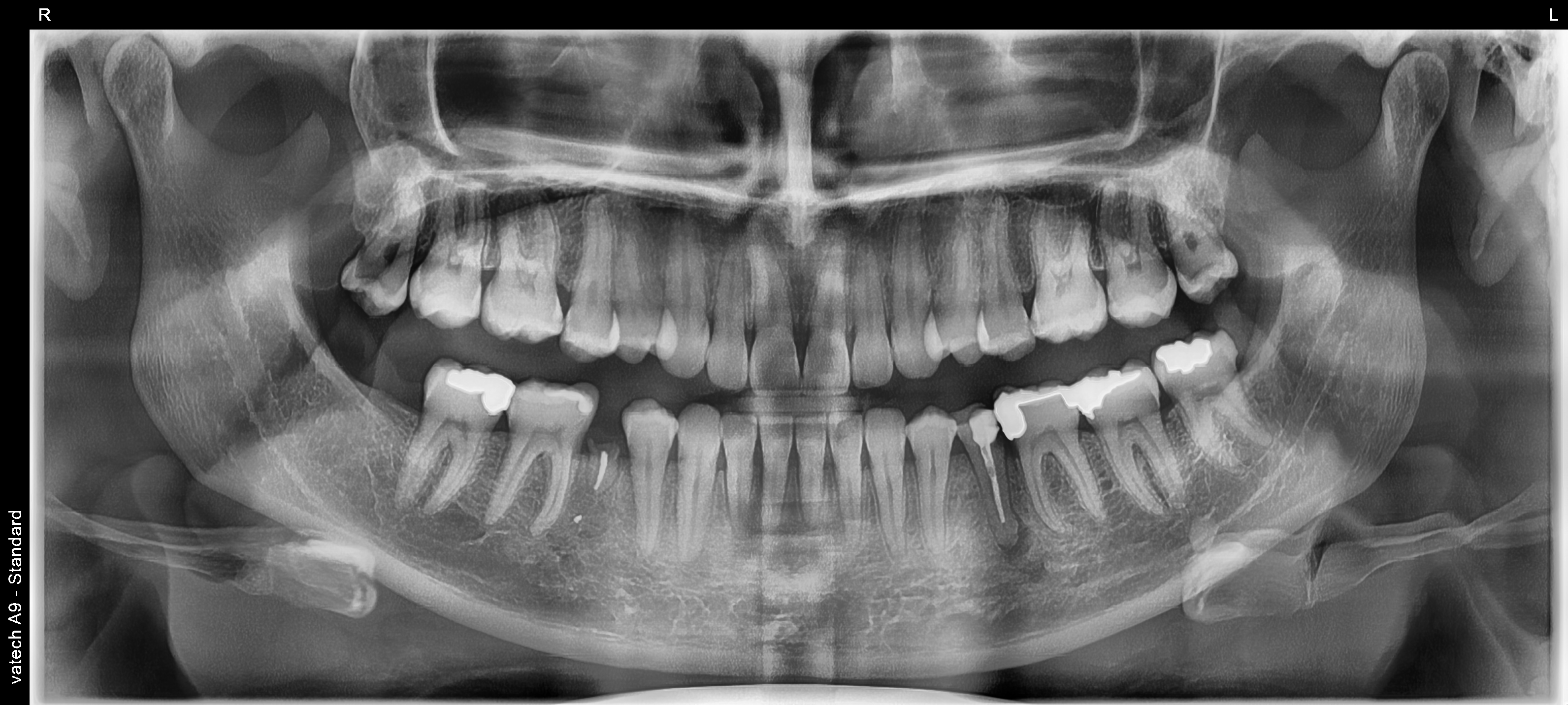

EMERGING AI TECHNOLOGY FEATURING MAGIC PAN

MAGIC PAN utilizes hundreds of layers of panoramic images during acquisition. Vatech Artificial Intelligence examines all layers, reconstructs, and provides the optimal image.

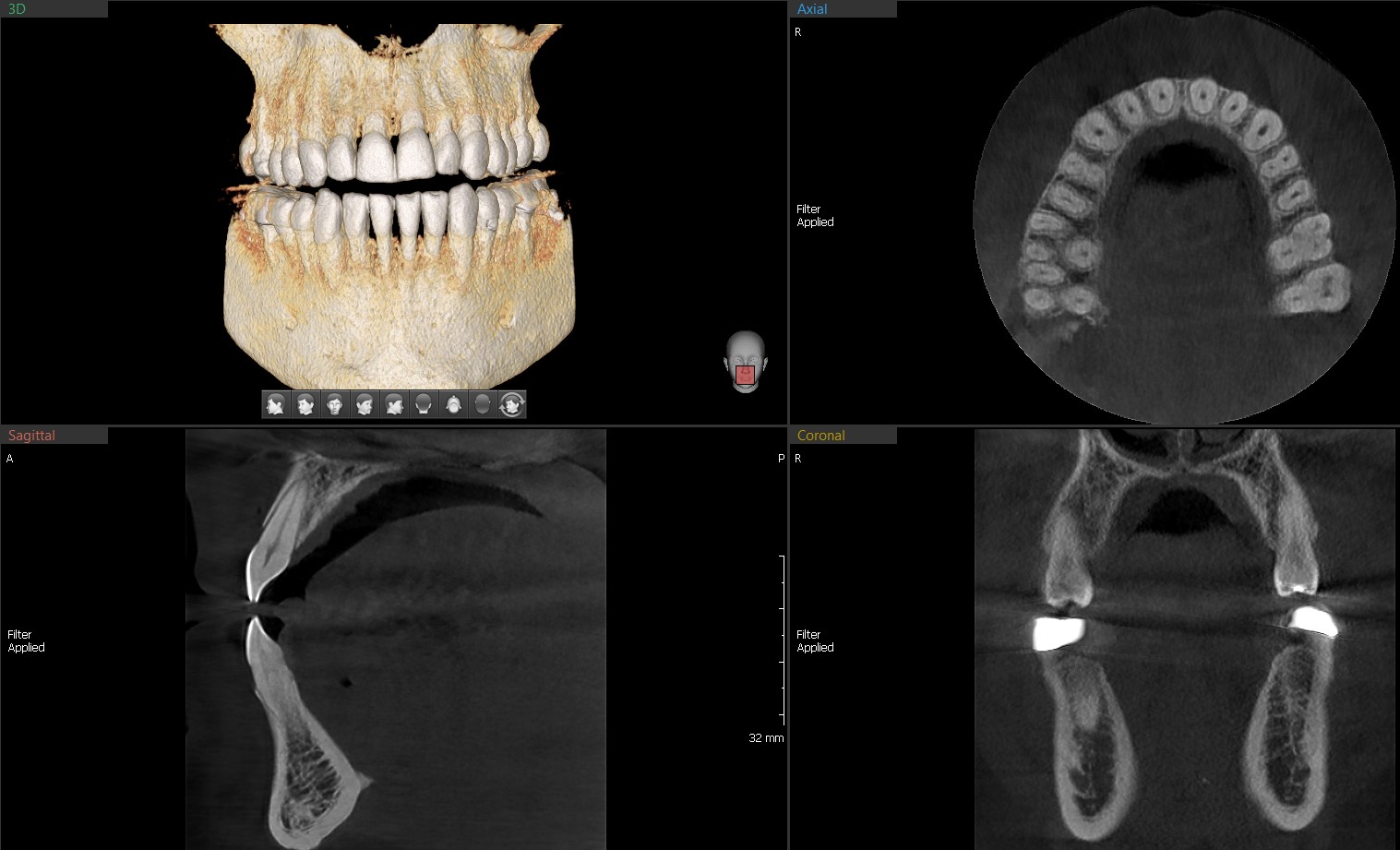

LIMITED FOV 8x8

8x8 images enable fundamental diagnoses and treatment planning, including both the maxillary and mandibular areas, in a single scan. It is useful for implant surgeries and diagnoses.

MINIMIZE MOTION ARTIFACTS WITH RAPID CEPH TECHNOLOGY

The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.

GREAT CLINICAL CARE WITH RAPID CEPH TECHNOLOGY

CONFIGURATION

CBCT PANO CEPH
Vatech A9

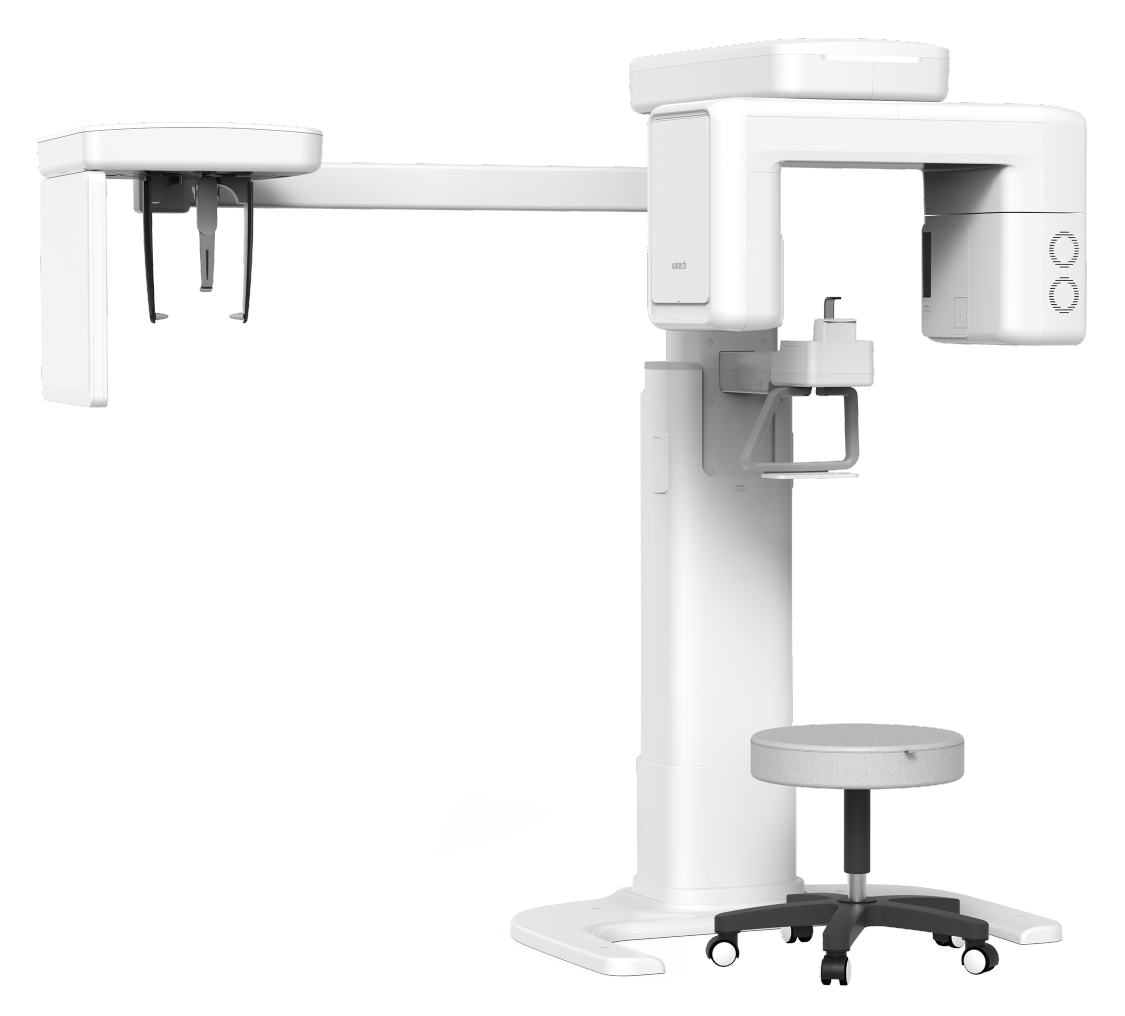

Vatech A9 RC

SPECIFICATIONS

FUNCTION FOCAL SPOT SIZE CT FOV SIZE VOXEL SIZE SCAN TIME GRAY SCALE TUBE VOLTAGE / CURRENT WEIGHT
CT + Pano + Ceph 0.5 mm (IEC 60336) 8x8 cm 0.2 mm / 0.3 mm CT 18 sec
PANO 11.9 sec / 14.1 sec
14 Bit 60 ~ 99 kV / 4 ~ 10 mA Without CEPH unit
238.76 lbs. (Without Base)
353.84 lbs. (With Base)
With CEPH unit
296.08 lbs. (Without Base)
411.16 lbs. (With Base)

* The specifications are subject to change without prior notice.

DIMENSIONS

Without CEPH unit With CEPH unit

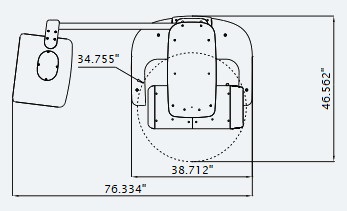

TOP VIEW

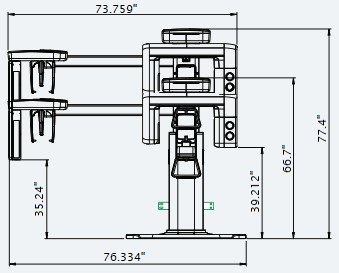

FRONT VIEW

*An additional 3 inches (76.2 mm) of space is required behind the unit for wall mount bracket installation
(mandatory unless there is a base mount installation).
