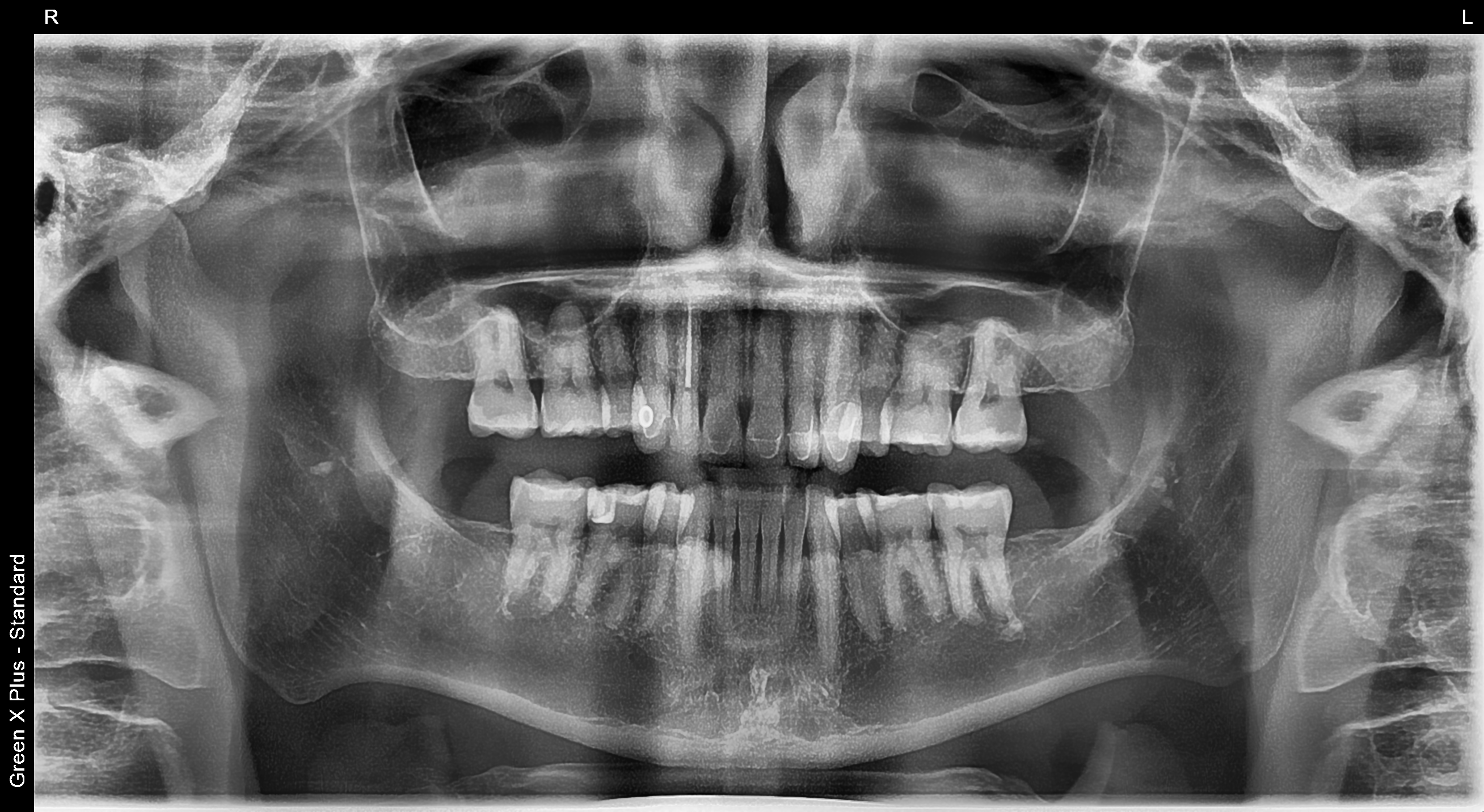

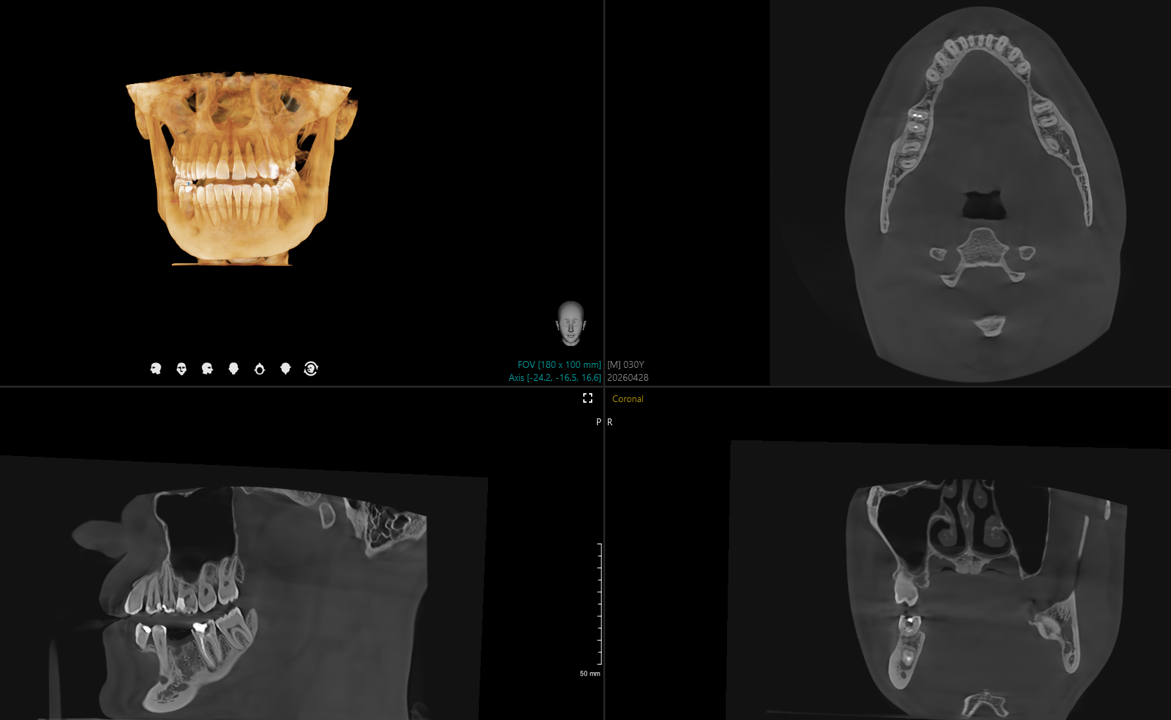

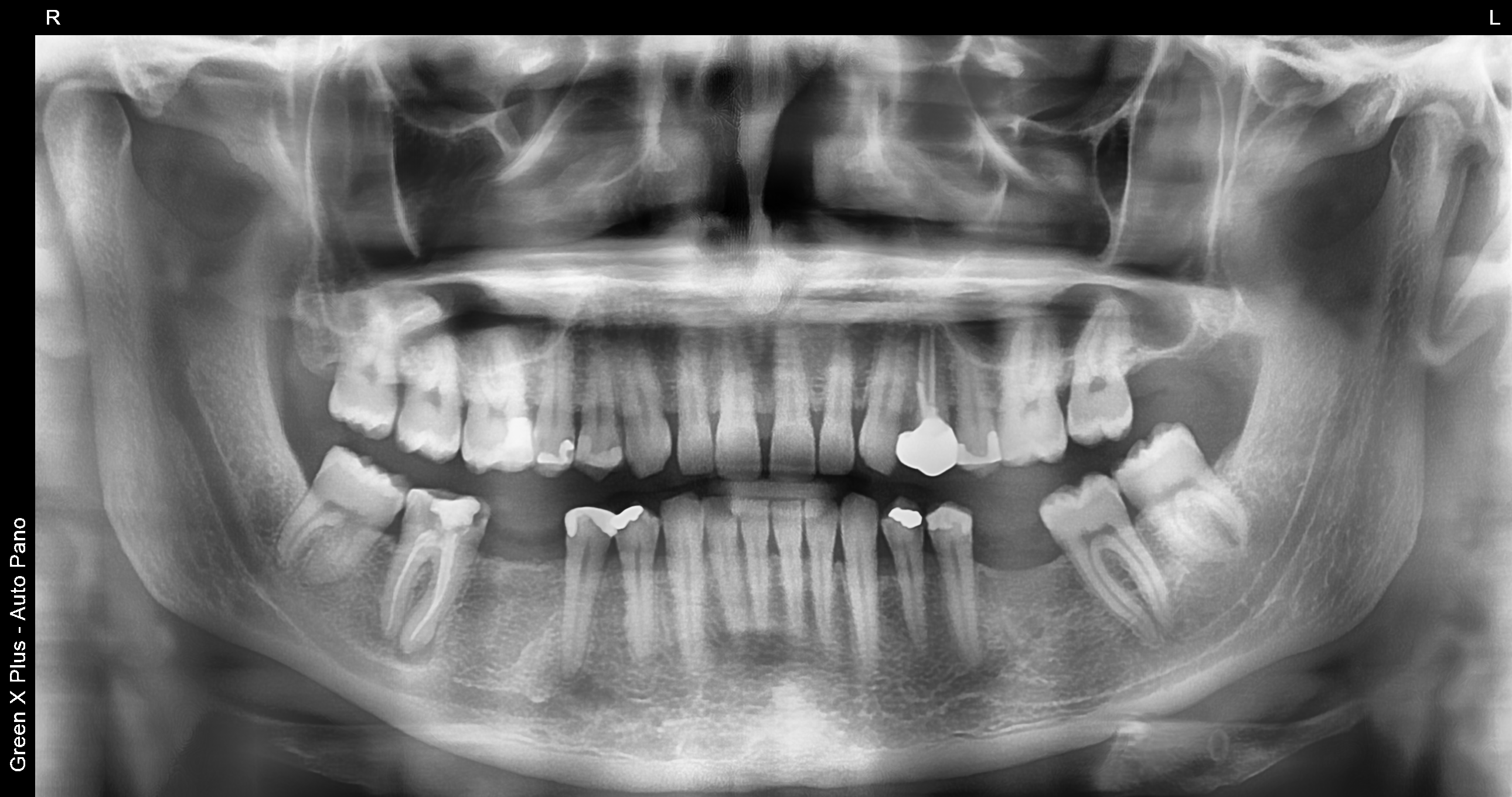

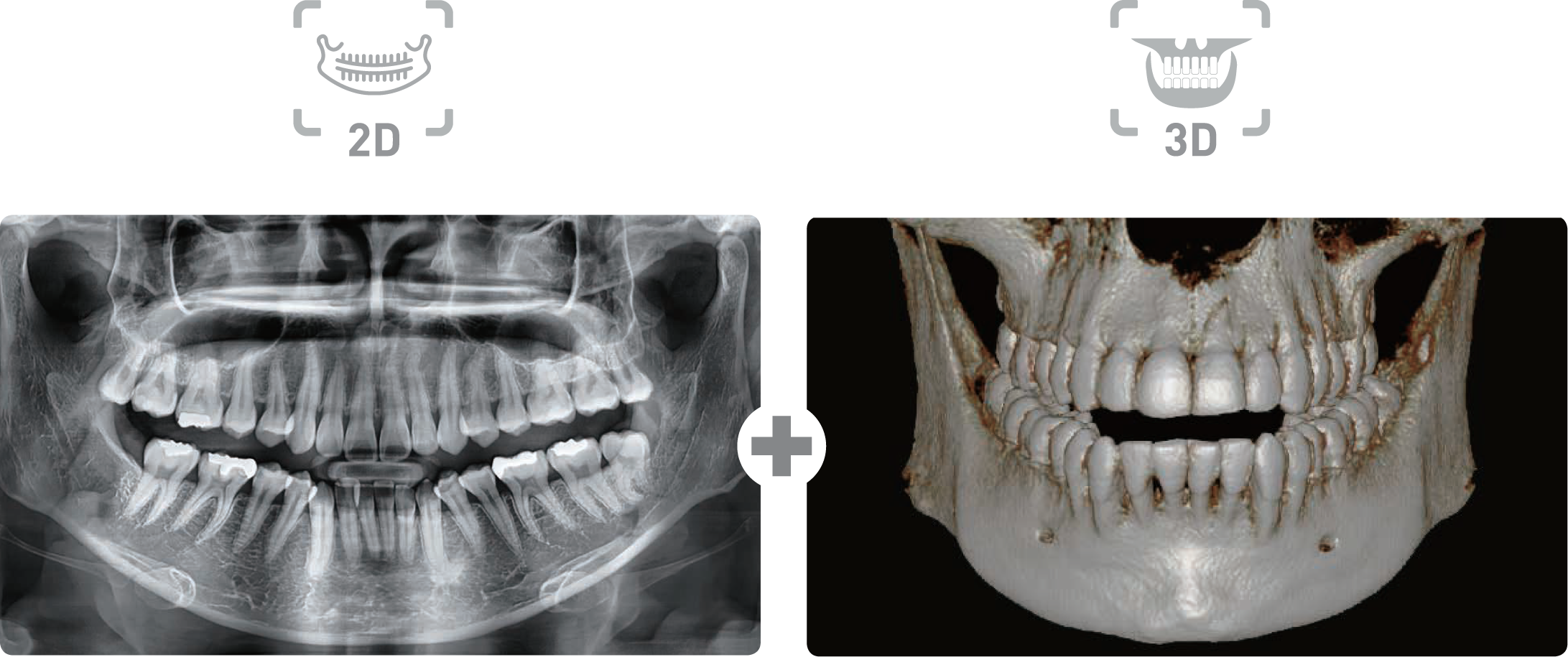

One scan with the Green X Plus gives you a CT image and Auto Pano image. This means that patients who require both images do not need to undergo two x-ray scans. The CT and Auto Pano images are displayed within One Viewer as well.

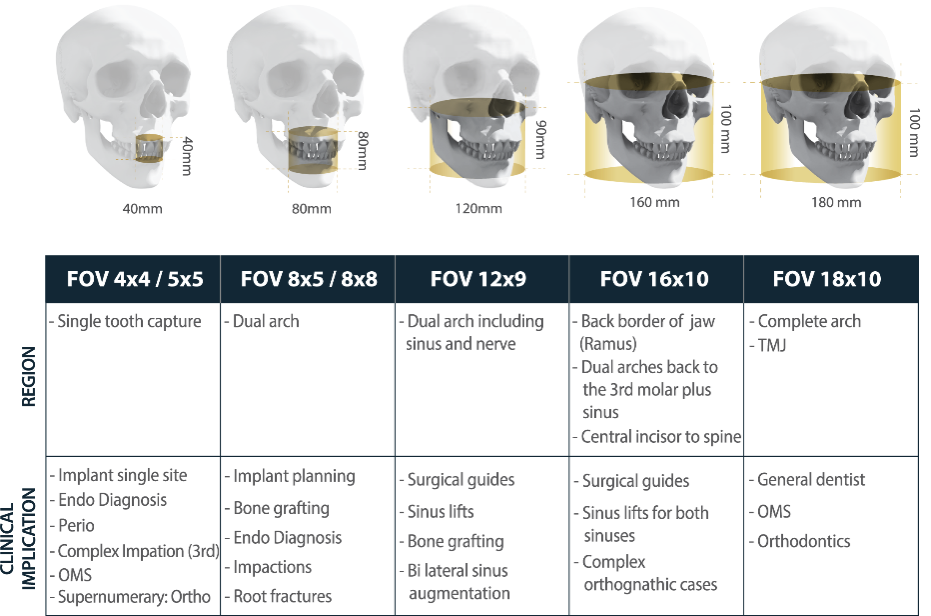

The Green X Plus offers a range of selectable fields of view. The Multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 18x10, 16x10, 12x9, 12x5, 8x8, 8x5, 5x5, and 4x4. These options cover the full arch region, sinus and left/right TMJ, and suits most oral surgery cases and multiple implant surgeries.

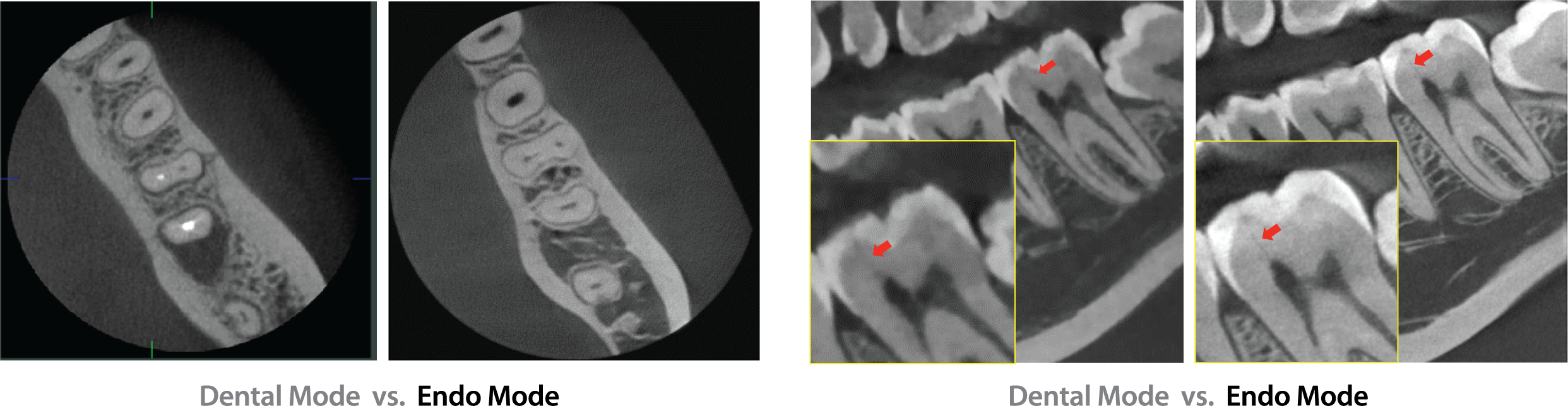

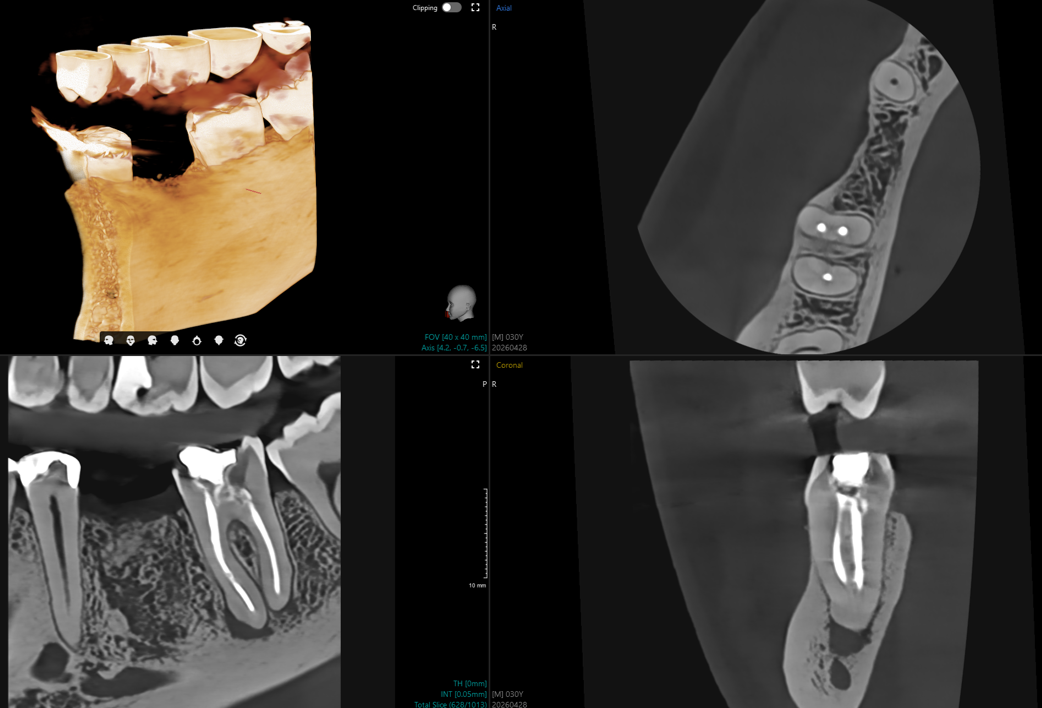

The endo mode with high resolution optimizes treatment of highly focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

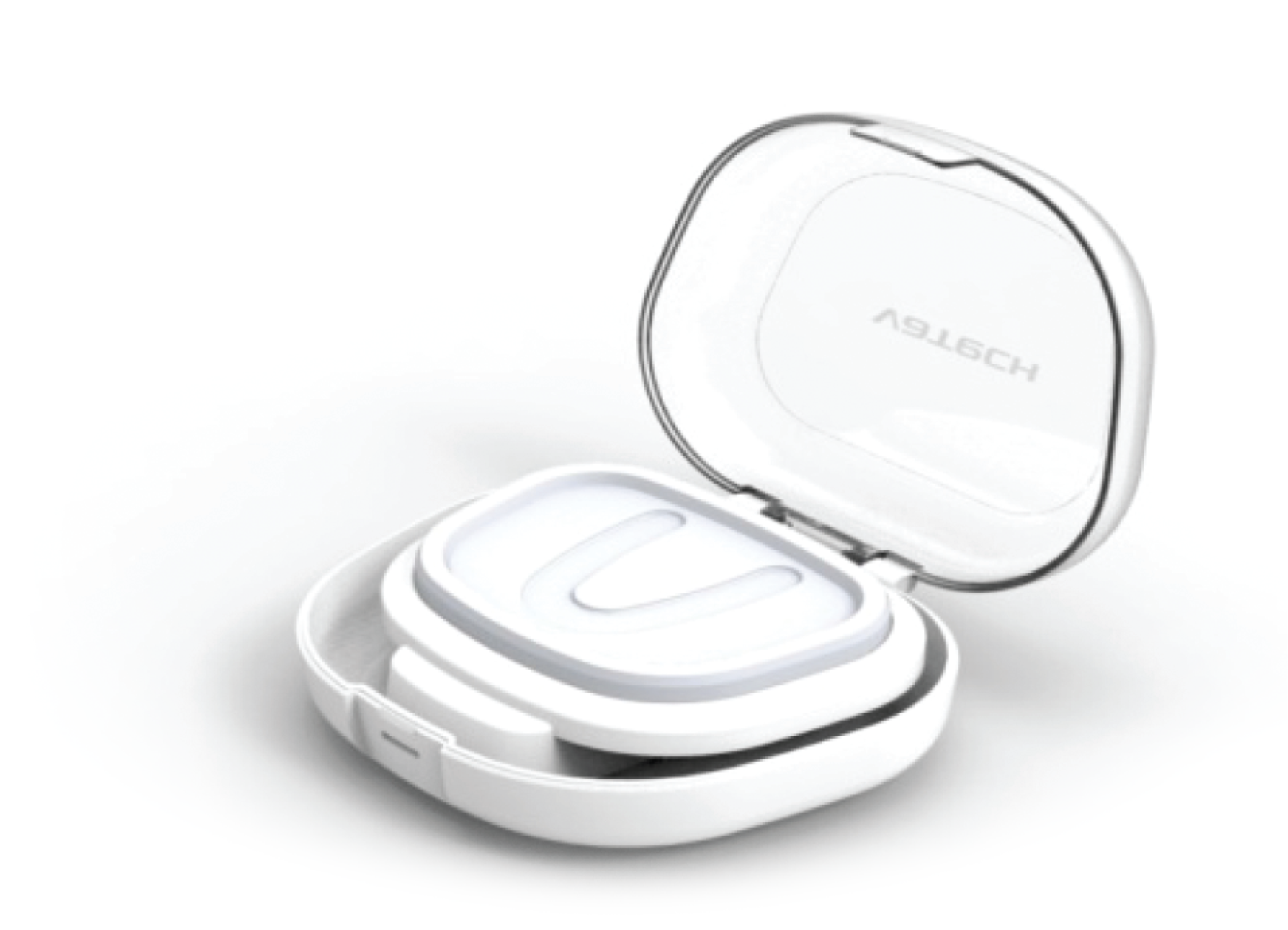

3D model scan enables users to store plasters as digital models. The specially designed Jig offers stable protection from partial model to full model.
| FUNCTION | FOCAL SPOT SIZE | CT FOV SIZE | VOXEL SIZE | SCAN TIME | GRAY SCALE | TUBE VOLTAGE / CURRENT | WEIGHT | DIMENSIONS |
|---|---|---|---|---|---|---|---|---|
| CT + Pano + Ceph + Model Scan | 0.5 mm (IEC 60336) | 4x4, 5x5, 8x5, 8x8, 12x5, 12x9, 16x10, 18x10 cm |
4x4 : 0.05 mm 5x5 : 0.08 mm / 0.12 mm 8x5 / 8x8 : 0.12 mm / 0.2 mm 12x9 / 16x9 / 16x11 / 18x15 : 0.2 mm / 0.3 mm |
PANO 4.0 sec / 14.1 sec CEPH 1.9 sec / 4.9 sec CBCT 7.0 sec (5x5-8x8) / 15.2 sec (12x5, 12x9, 16x10, 18x10) / 18.0 sec (Endo 4x4) |
PANO, CBCT 14 Bit CEPH 16 Bit |
60 - 99 kVp / 4 - 16 mA |
Without CEPH unit 320.1 lbs - without Base / 437.0 lbs - with Base With CEPH unit 375.2 lbs - without Base / 492.1 lbs - with Base |
Without CEPH unit 44.5" (L) x 61.6" (W) x 91.5" (H) - without Base 44.5" (L) x 61.6" (W) x 92.8" (H) - with Base With CEPH unit 75.7" (L) x 61.6" (W) x 91.5" (H) - without Base 75.7" (L) x 61.6" (W) x 92.8"(H) - with Base |
* The specifications are subject to change without prior notice.
