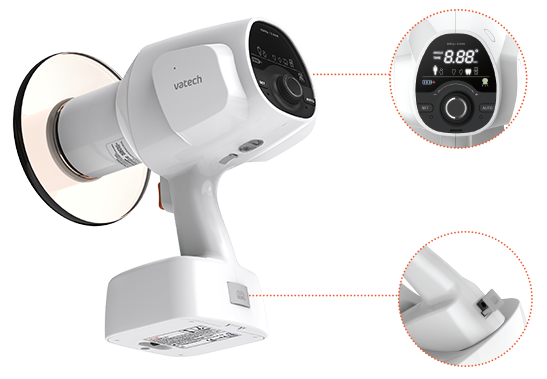

Drag the product with your mouse or fingers; or click on the feature from the list.
Vatech’s EzRay Air P provides users with a stable and easy-to-use x-ray source that maximizes image clarity and optimizes workflow.

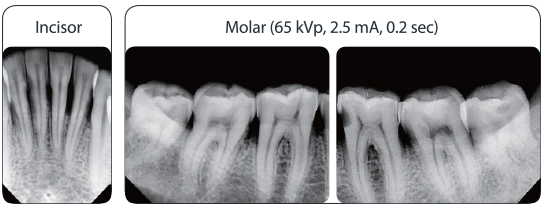

The EzRay Air P is a lightweight portable x-ray device that is designed for easy handling and stable positioning. It delivers optimal image quality for your intraoral x-ray images.

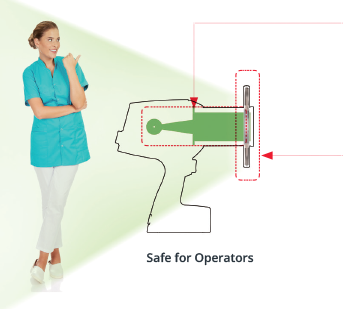

The internal radiation shielding is perfectly designed to protect the operator from radiation leakage.
Radiation exposure results from the beam interacting with the surface of the patient, which causes radiation to bounce off and scatter in different directions. The backscatter shield significantly reduces the amount of radiation being dispersed.

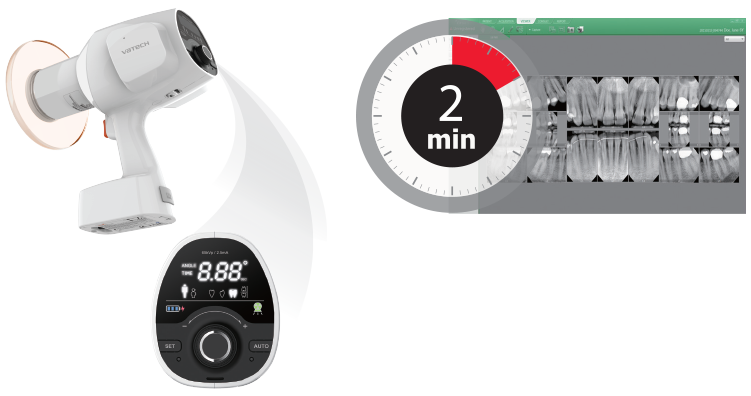

The EzRay Air Portable's unique carbon nano technology efficiencies, which are not available in traditional x-ray generation methods, allow a reduction in cool-down time between shots when compared to leading competitor's devices. This allows users to spend less time waiting for their x-ray to be ready and more time diagnosing and treating the patient.
| FOCAL SPOT | TUBE VOLTAGE (kV) | TUBE CURRENT (mA) | EXPOSURE TIME RANGE | TOTAL FILTRATION | SOURCE TO SKIN DISTANCE | X-RAY FIELD | MAXIMUM DUTY CYCLE | POWER INPUT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 0.4 mm (IEC 60336) | 65 kV | 2.5 mA | 0.05 ~ 1.0 sec | Min. 1.5 mm AI | 200 mm | Default: 60 mm Round, 30 x 40 mm Rectangular Optional: 20 x 30 mm Rectangular |
1 : 60 | 21.6 V | 4.7 lbs. (2.1 kg) |
* The specifications are subject to change without prior notice.

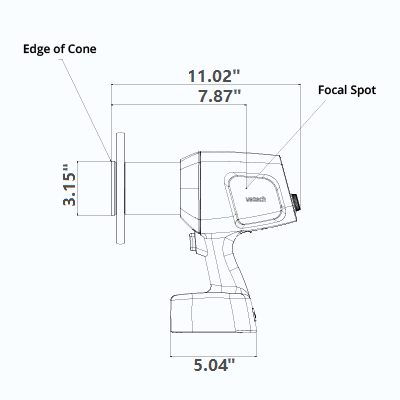

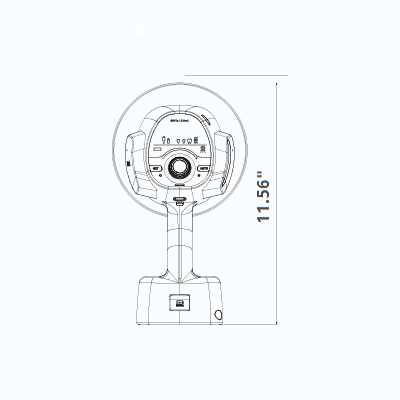

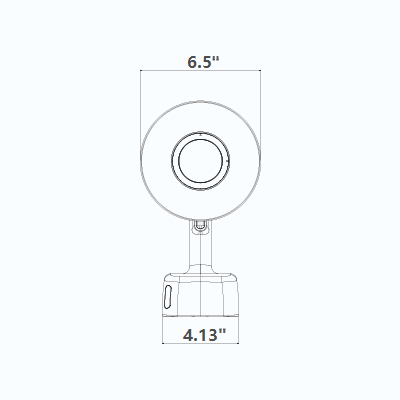

| TOP VIEW | SIDE VIEW | BACK VIEW |
|---|---|---|
|
|
|
