FEATURES

SPEED, QUALITY, PREDICTABILITY

NO COMPROMISE

DESCRIPTION

ENDO MODE WITH HIGH RESOLUTION

With the endo mode will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

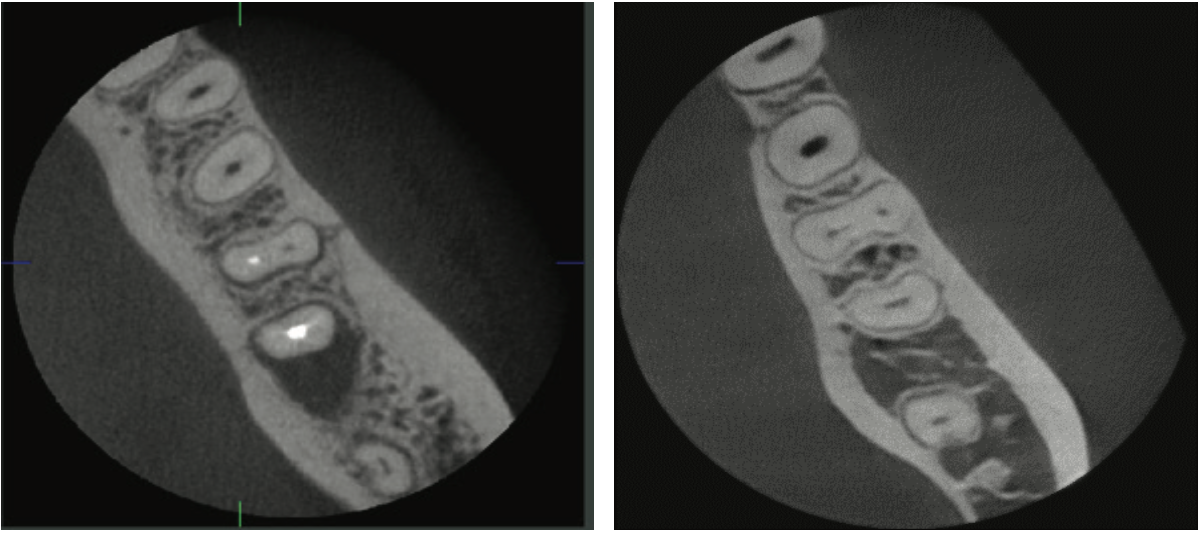

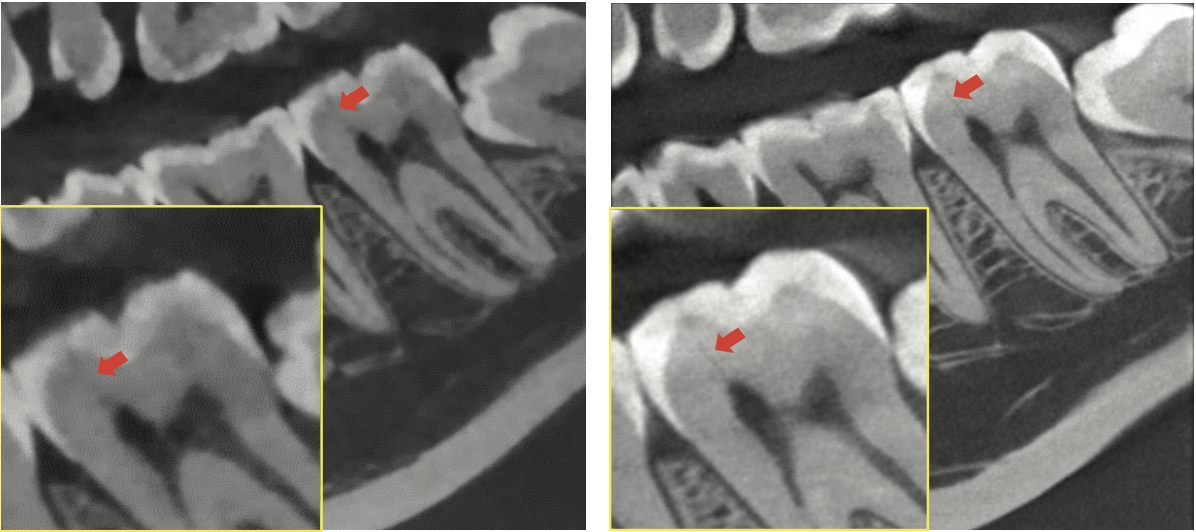

Dental Mode vs. Endo Mode
Dental Mode vs. Endo Mode

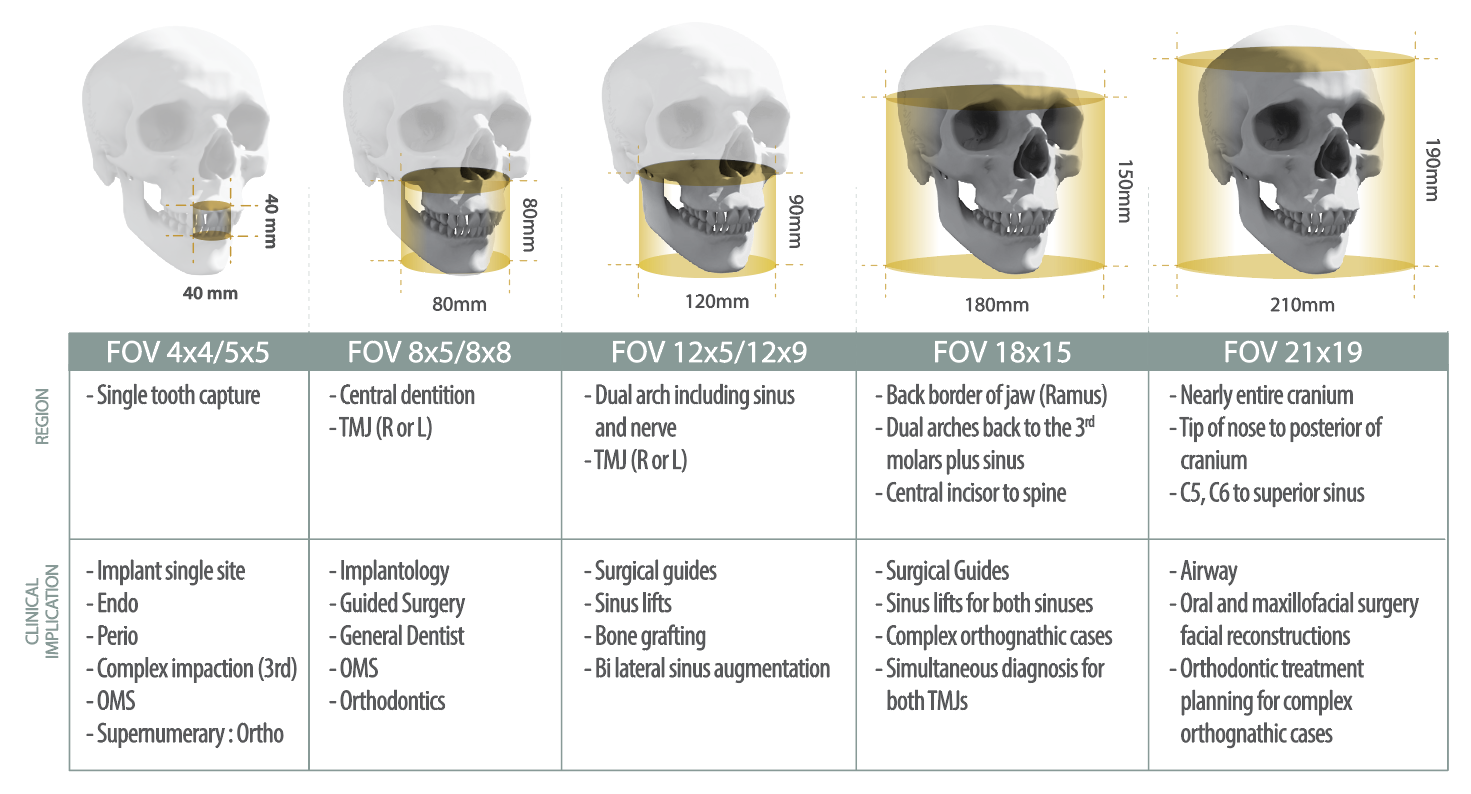

MULTI FOV SELECTION

The Green X 21 offers a range of selectable fields of view. The Multi FOV option allows users to select the optimum FOV mode while minimizing exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 21x19, 18x15, 12x9, 12x5, 8x8, 8x5, 5x5 and 4x4. These options cover the full arch region, sinus and left/right TMJ, and suits most oral surgery cases and multiple implant surgeries.

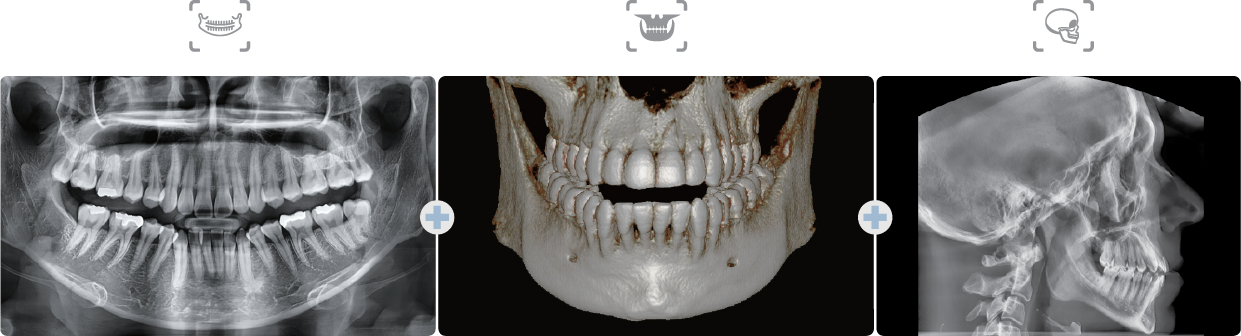

ONE SCAN, THREE IMAGES

One scan with the Green X 21 gives you a CT, Auto Pano and Auto Ceph image. This means that patients who require all images do not need to undergo three x-ray scans.

MINIMIZE MOTION ARTIFACTS WITH ONE SHOT TECHNOLOGY

The next step in cephalometric technology, Vatech's new One Shot minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.

SPECIFICATIONS

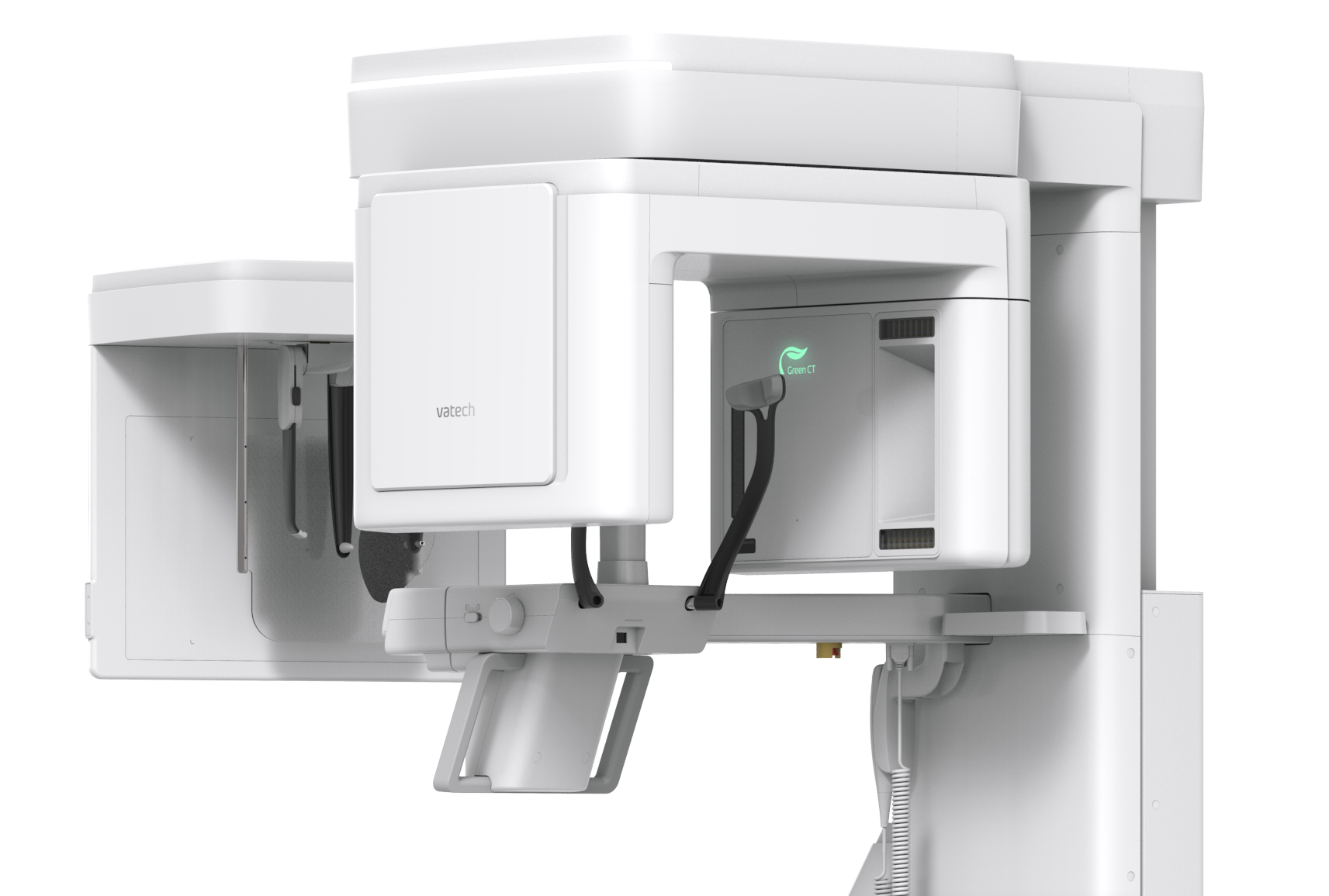

Green X 21 : PHT-90CHO
FUNCTION FOCAL SPOT SIZE CT FOV SIZE FACE SCAN FOV SIZE VOXEL SIZE SCAN TIME GRAY SCALE TUBE VOLTAGE / CURRENT WEIGHT DIMENSIONS

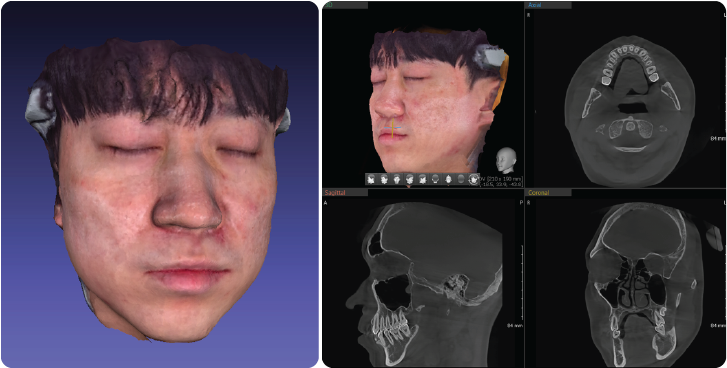

CT + Pano + Ceph + Face Scan + Model Scan 0.5 mm (IEC 60336) 4x4, 5x5, 8x5, 8x8, 12x5, 12x9, 18x15, 21x19 cm 12x9, 18x15, 21x19 cm 4x4 : 0.05 mm
5x5 : 0.08 mm / 0.12 mm
8x5 / 8x8 : 0.12 mm / 0.2 mm
12x5 / 12x9 / 18x15 / 21x19 : 0.2 mm / 0.3 mm
PANO 4.0 sec / 14.1 sec
CEPH 0.9 sec
CBCT 7.0 sec (5x5 - 12x9) / 15.2 sec (18x15, 21x19) / 18.0 sec (Endo 4x4)
16 Bit 60 - 99 kVp / 4 - 16 mA Without CEPH unit
364.64 lbs - without Base / 486.56 lbs - with Base
With CEPH unit
418.88 lbs - without Base / 540.79 lbs - with Base
Without CEPH unit
42.72” (L) x 52.89” (W) x 91.24” (H) - without Base
42.72” (L) x 52.89” (W) x 92.34” (H) - with Base
With CEPH unit
75.29” (L) x 52.89” (W) x 91.24” (H) - without Base
75.29” (L) x 52.89” (W) x 92.34” (H) - with Base

* The specifications are subject to change without prior notice.

DIMENSIONS

Unit: Inch
With CEPH unit Without CEPH unit

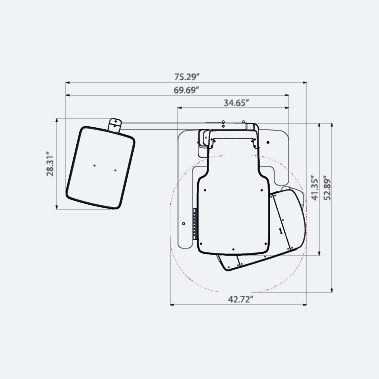

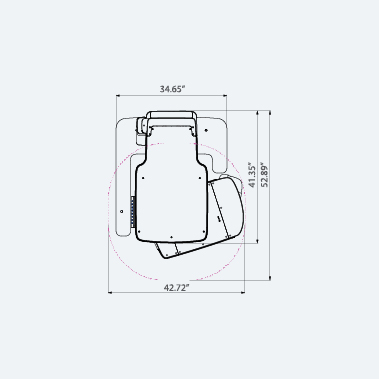

TOP VIEW

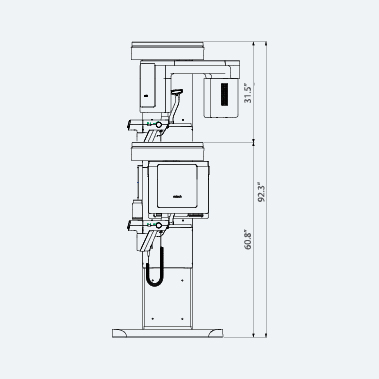

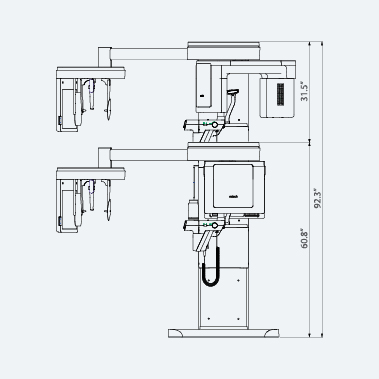

FRONT VIEW

* An additional 3 inches (76.2 mm) of space is required behind the unit for wall mount bracket installation
(mandatory unless there is a base mount installation).

IMAGES

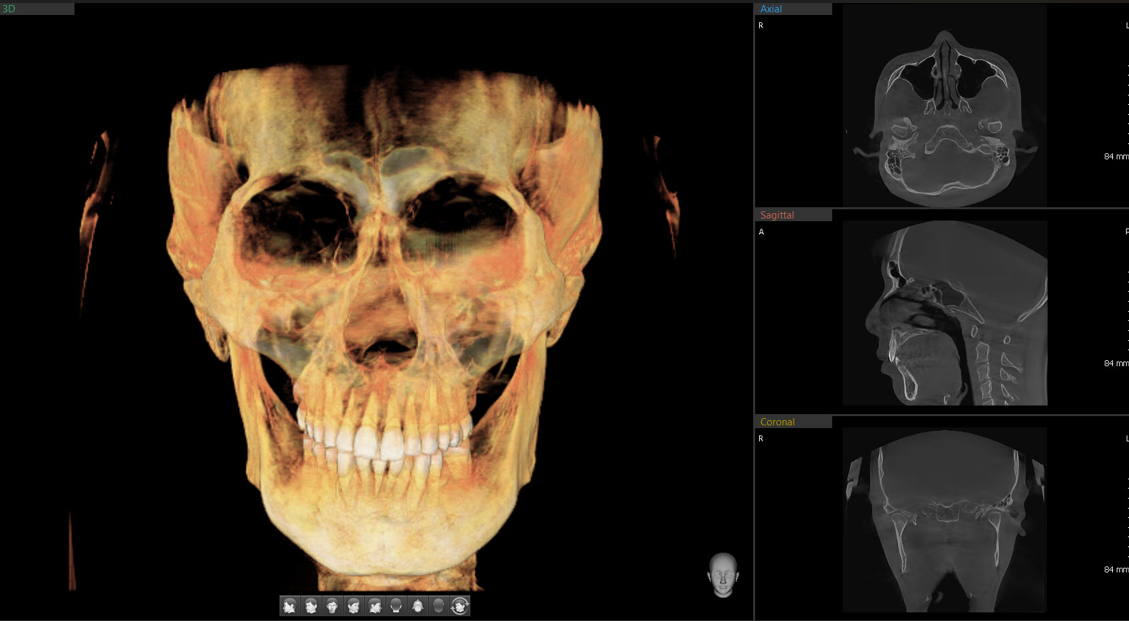

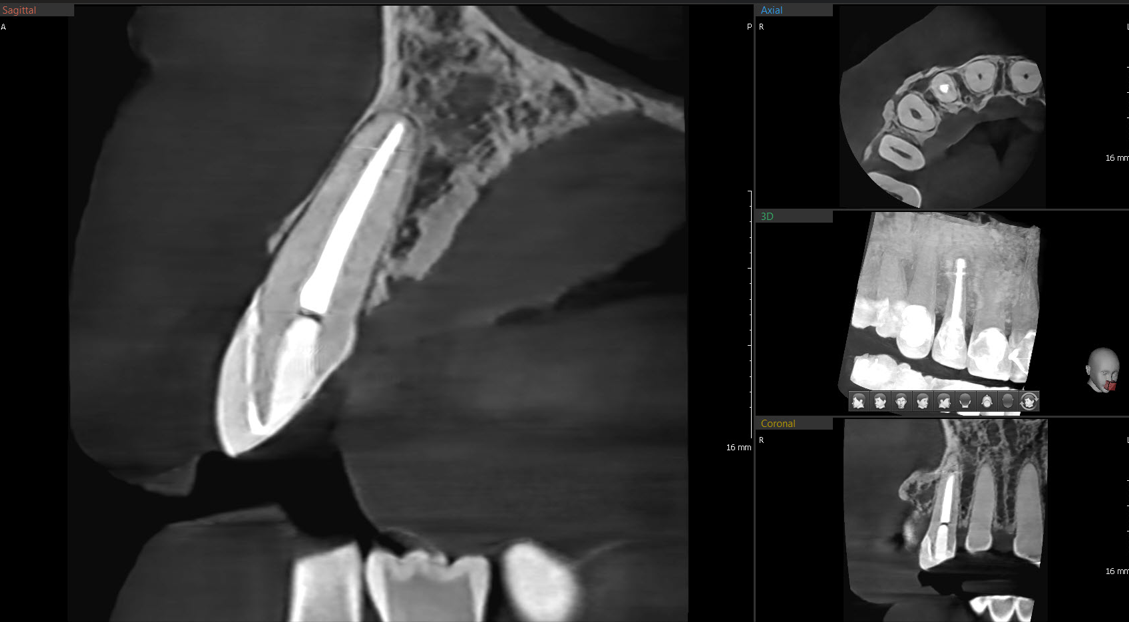

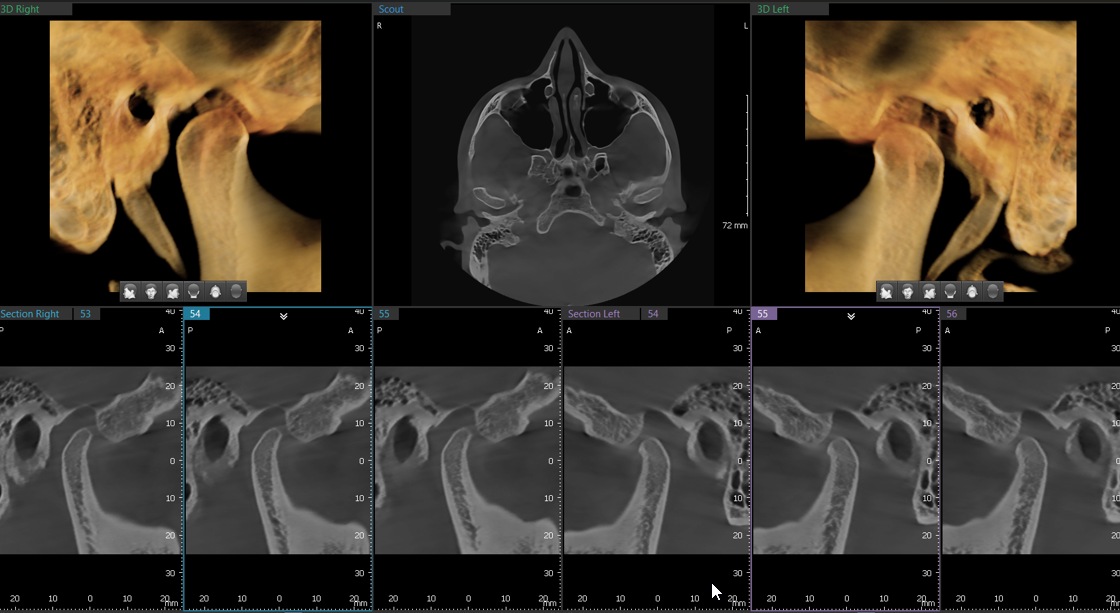

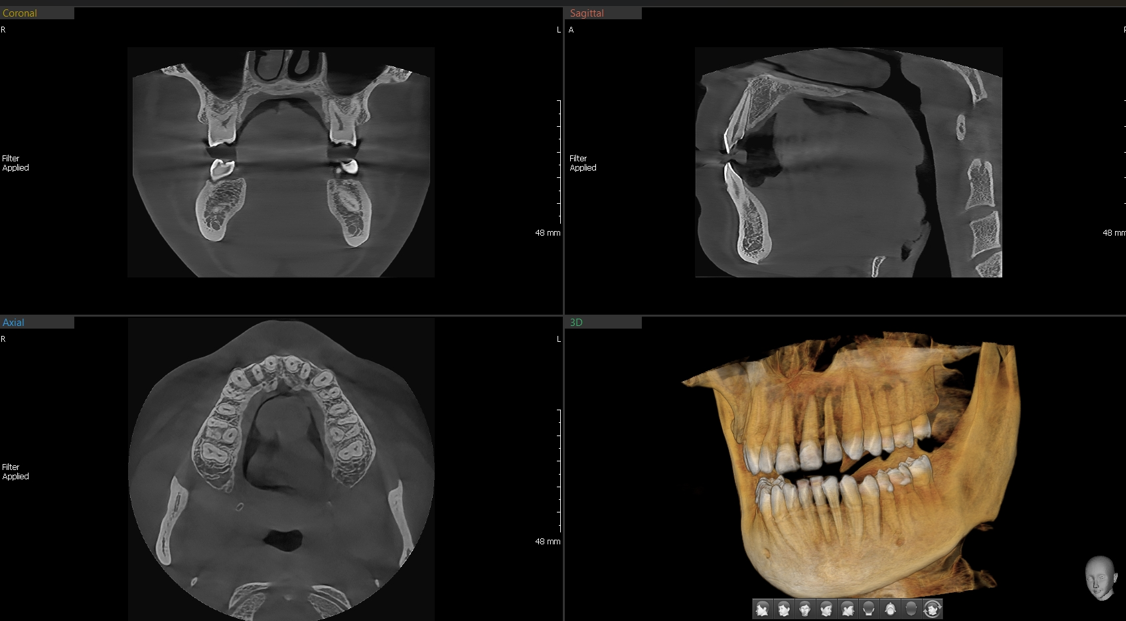

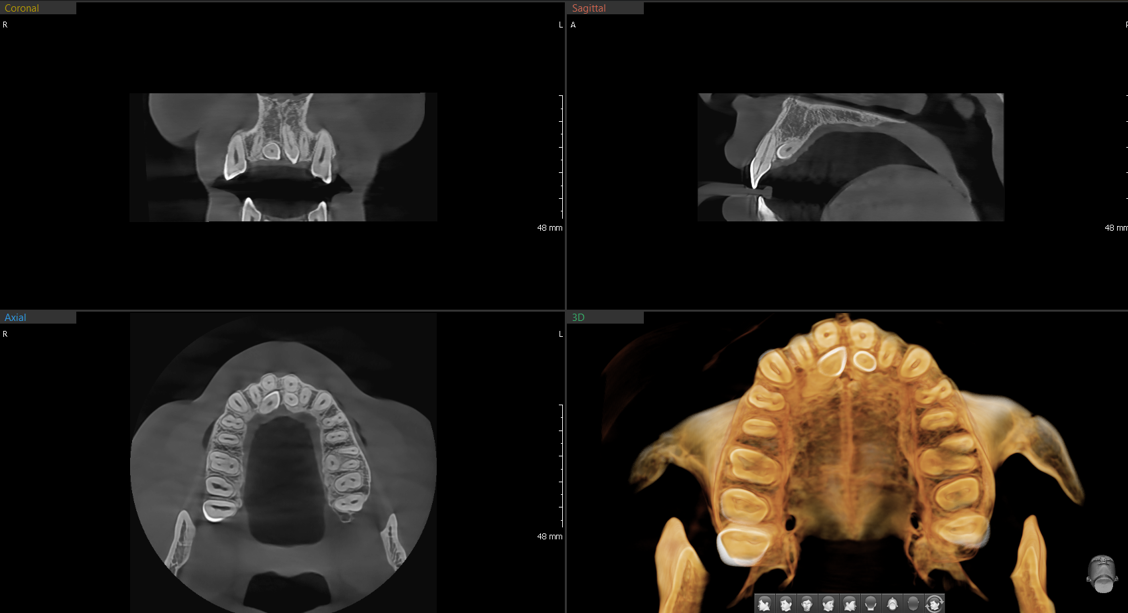

CT

Click images to enlarge

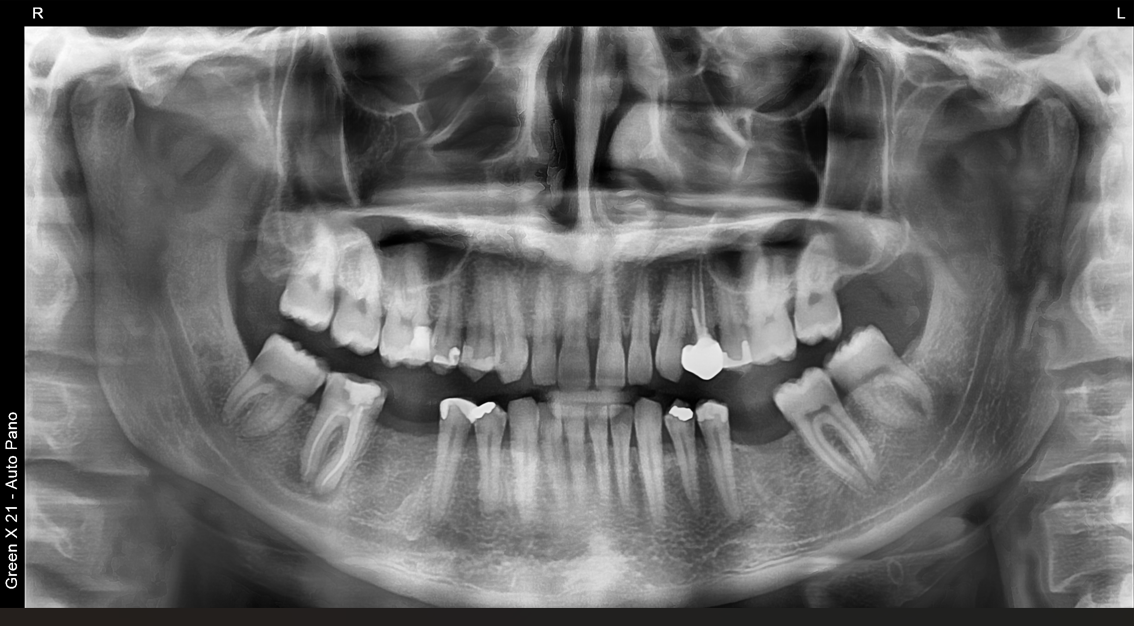

PANO

Click images to enlarge

AUTO PAN

Click images to enlarge

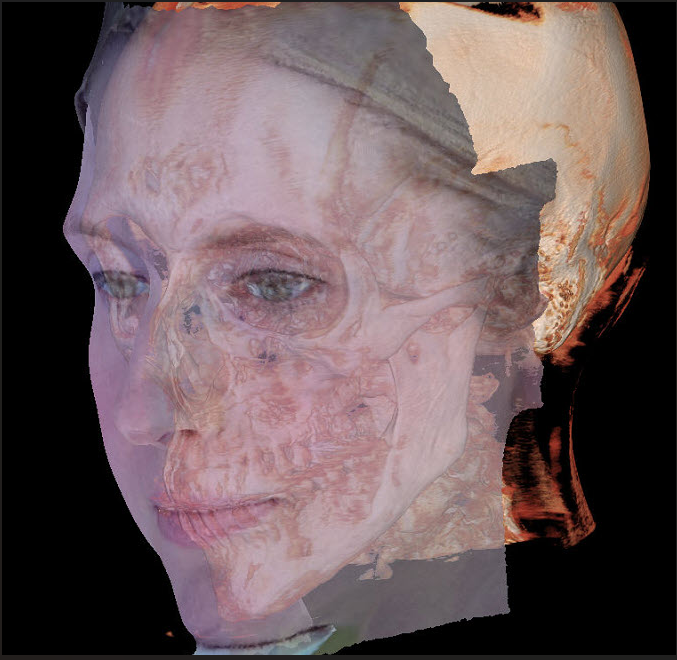

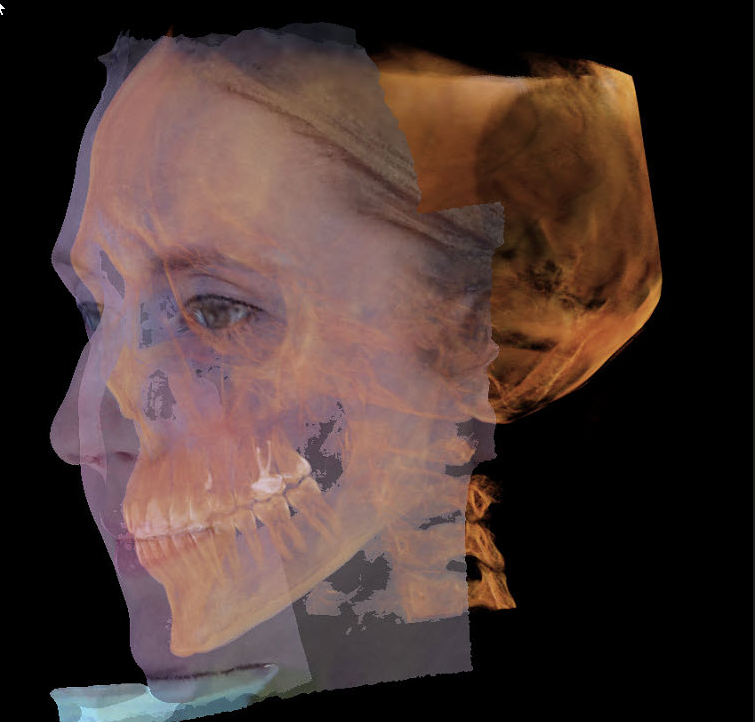

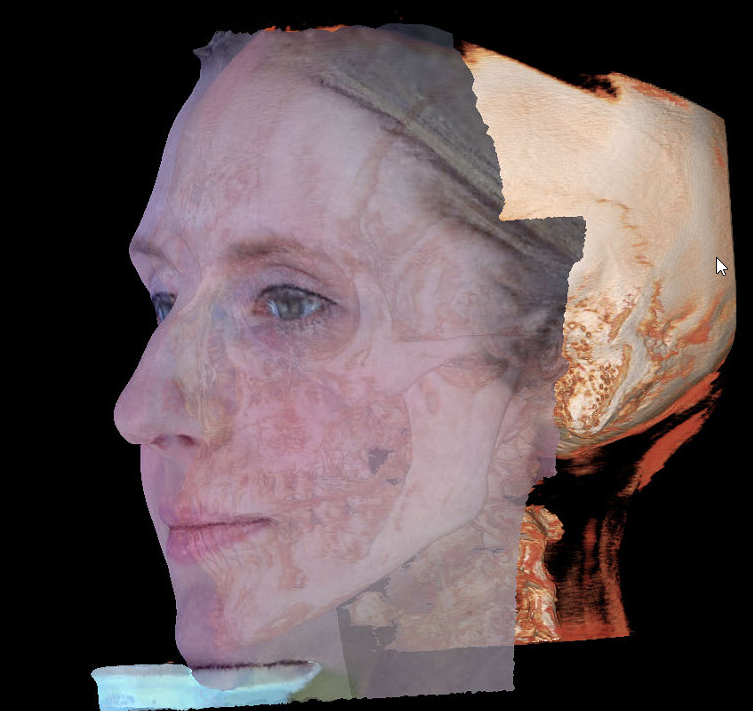

3D PHOTO

Click images to enlarge
