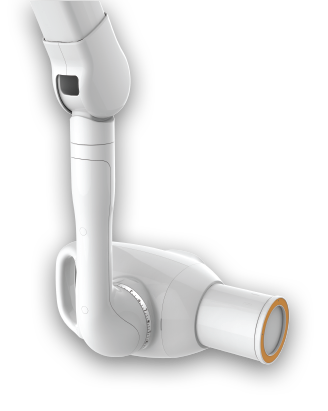

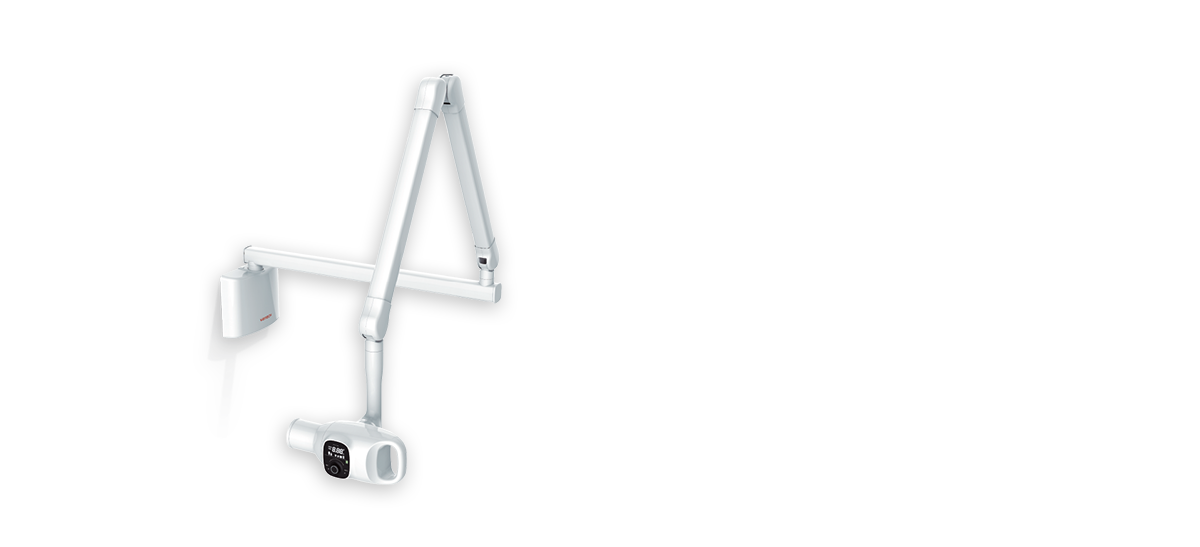

The wall-mounted EzRay Air is a lightweight x-ray device designed for easy handling and stable positioning,

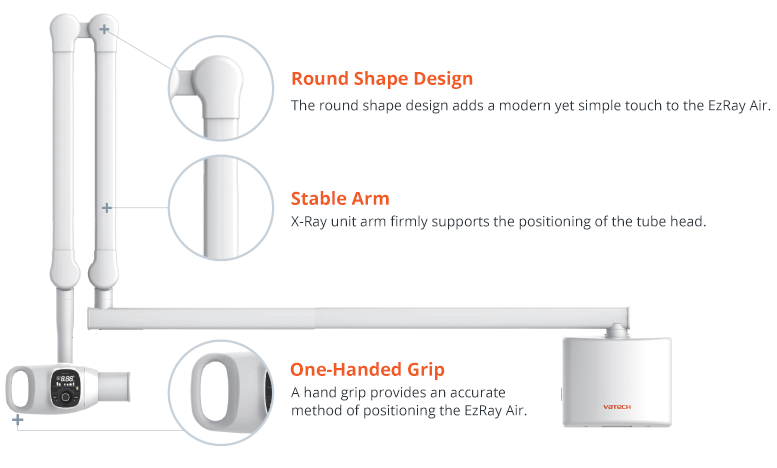

giving you optimal intraoral x-ray image quality. The EzRay Air’s lightweight tube head provides users with a stable,
easy-to-use x-ray source that maximizes image clarity and optimizes workflow.

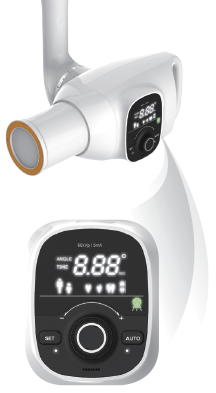

The operating panel, located on the tube head, creates a much simpler and faster workflow. Practitioners who use the Smart Dial will notice a decrease in preparation time. There will be no need to remember complicated control buttons and configurations.

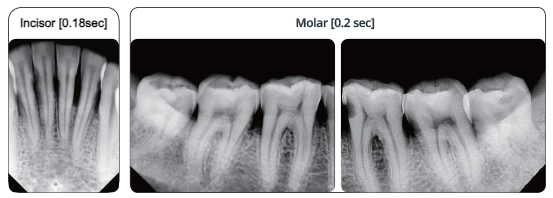

Compared to other intraoral sensors in the market, the EzRay Air provides optimal image quality and additional diagnostic value with a 0.4mm focal spot.
* Exposure Condition: 65kV, 3.0mA
| FOCAL SPOT | TUBE VOLTAGE | TUBE CURRENT | EXPOSURE TIME RANGE | SOURCE TO SKIN DISTANCE | X-RAY FIELD | ARM LENGTH [OPTION] | ACCESSORIES | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| 0.4 mm (IEC 60336) | 65 kVp | 3.0 mA | 0.05 ~ 0.5 (0.01s increment) | Min. 7.9 inch | Default: 60 mm Round, 30 x 40 mm Rectangular Optional: 20 x 30 mm Rectangular |
62”/ 68”/ 80” *See note A | Remote Exposure Switch (Hand Switch / Doorbell Switch) | 56.9 Ib (Arm Length 62") 58.0 Ib (Arm Length 68") 61.1 Ib (Arm Length 80") |
* The specifications are subject to change without prior notice.
|
|
