How to configure Dexis to use Vatech IOS/EOX twain

Written on Jun 4, 2025

To configure Dexis twain you will either need to have purchased the images for Version 9 or have already upgraded to Version 10 or higher.

The following guide is based on Version 10+

Note: For IOS - Sensors - Autoadvance twain functions; you must have Dexis Version 10 or higher* using the Advanced - AutoAdvance Twain.

         For EOX - Pano/Ceph - Native twain installation is acceptable. No updates required.

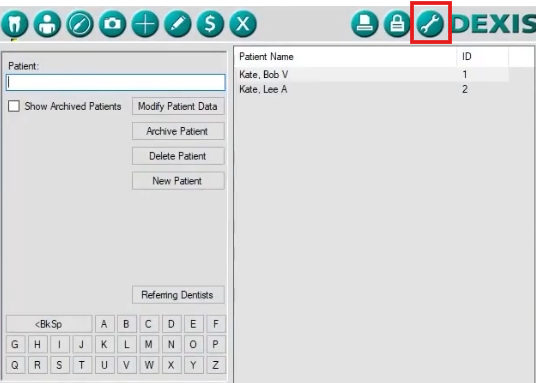

  • Open Dexis Imagine and Select the 'Wrench' icon to open the preferences / settings window

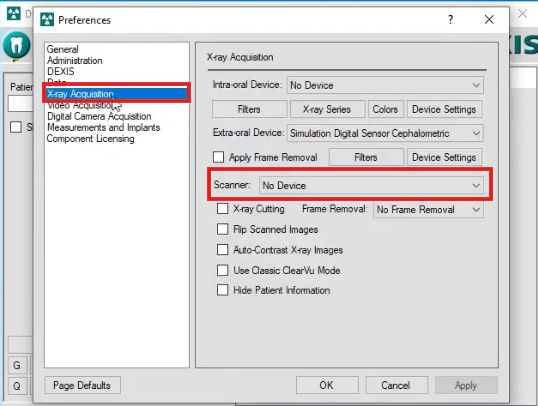

  • Next select the "X-Ray Acquisition" and Select "Scanner" Drop down menu.



  • Select the appropriate twain source

    IntraOra USB Senosr  (IOS)
    Vatech VCaptureSW (Pano/Ceph - IOX)



  • Once selected click "Apply" then click "Ok"




Example Capture Proceedure - EOX
