How to export 3D CT Images from EzDenti

Written on Jan 27, 2017

You can export them to save on local Hard drive, USB Flash drive, for upload to FTP  or CD .

Note: due to file size you are not able to e-mail 3D CT volumes.

If you would rather export them locally for saving onto USB drive, CD or other media the first thing you will want to do is open the patient chart to access the images as shown in the figure below.

Video Guide:


Written Guide:

There are 2 ways you can export the image; choose the most productive manner for you.

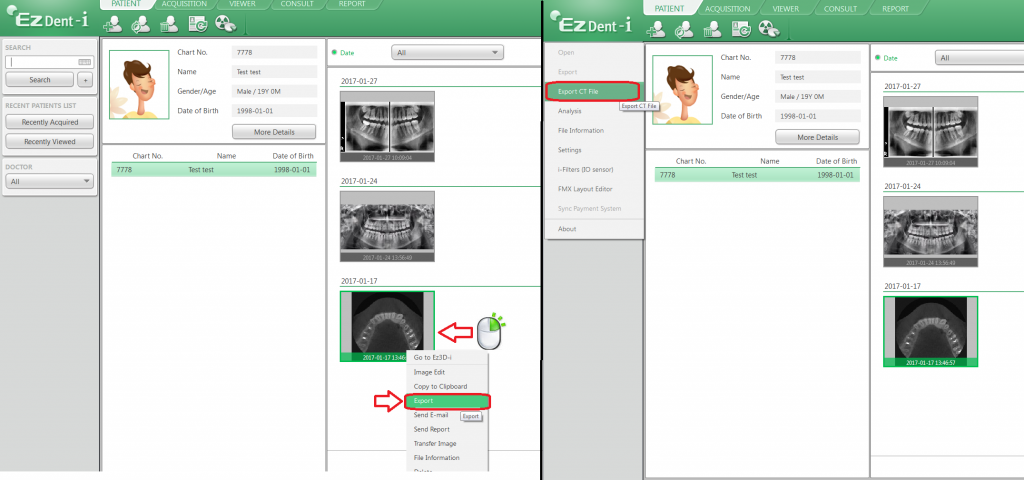

Option 1 is to select the image as shown below and by 'right clicking' on the image you can choose 'Export'

Option 2 is to select the image as shown below and clicking the "EzDent-i" logo and then from the drop down clicking 'Export'

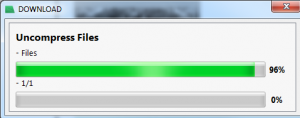

Once you have selected to export the CT; you will get an Uncompress Files window/ progress bar; do no close while this is processing.

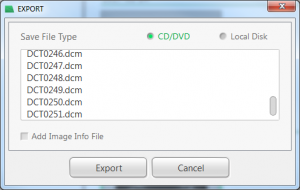

In either option you will open the same Export window where you can either choose to Save the File to CD/DVD directly -OR- to the Local Disk.

To Export directly to CD/DVD, select the CD/DVD option if not already selected and click "Export" this will then burn the Image selected to a black disk you can then send with the patient.

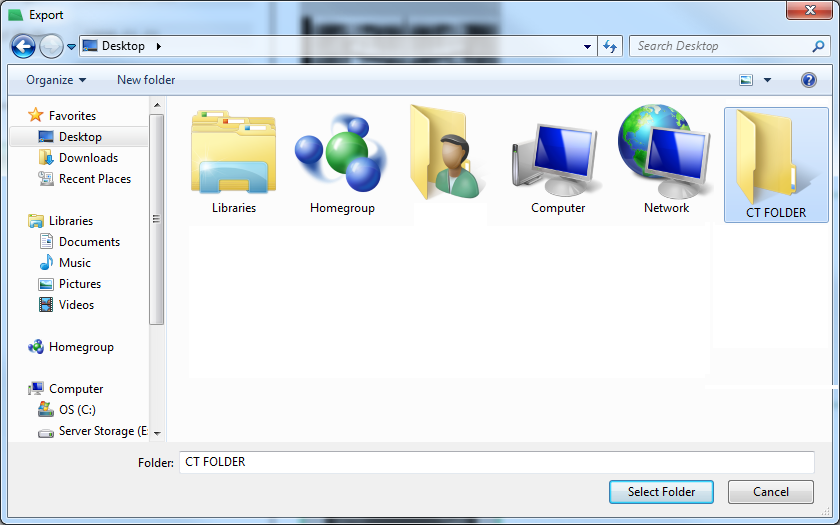

If you would rather Save the image locally for USB or other media such as to upload to an FTP, simply choose 'Local Disk' instead and click Export. This will open a pop up windows which is essentially a 'Save as' browse window normally seen in most programs.

Simply choose the export location of your chose (in this example we are saving to the desktop folder as shown below), in the File Name Field give the image a name. Typically the patients name will suffice.

Click Save and exporting will be started. Please do not turn off the PC or disconnect power while saving from the database is under way.

Once export is finished you can then access the image in the file path chosen at the time of saving.

Zipping with password protection

You may also export the CT scan and compress it into a zip file directly from EzDent-I.

Note: This option works for both Local Disk and CD/DVD export and is only available in EzDent-I v or higher.

  • Check the 'Compress to Zip' box as shown below before clicking Export:
  • You may also add a password to safely secure the file for the protection of the patient’s identity.

By clicking on Show Password, it will simply reveal your intended password for your verification.
