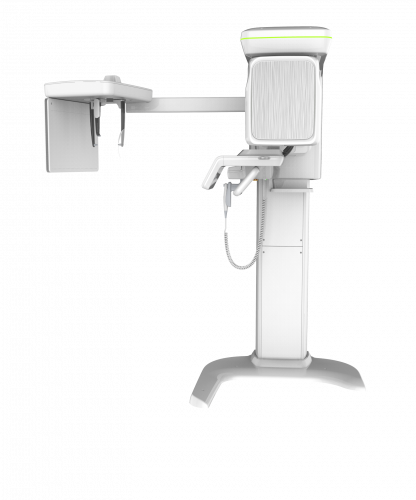

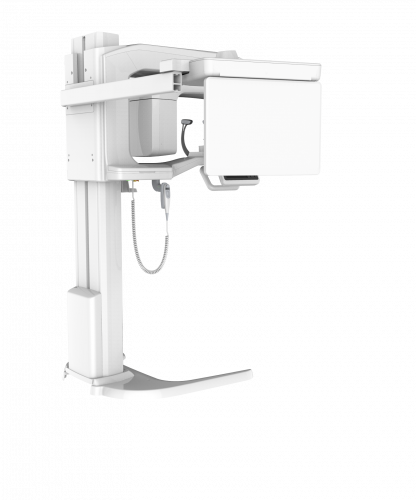

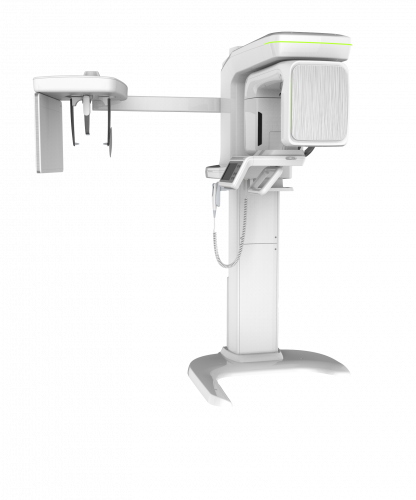

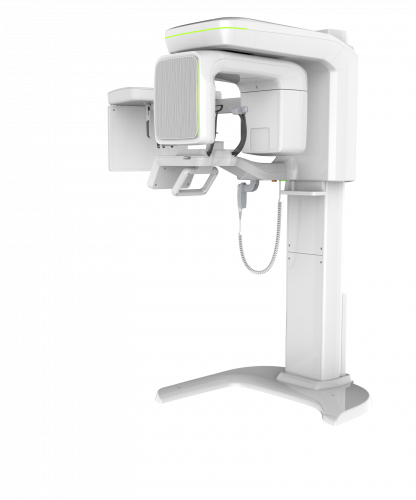

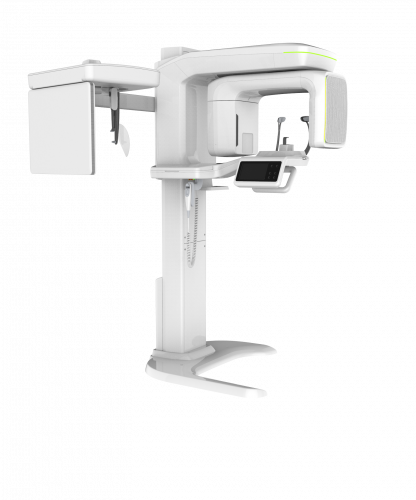

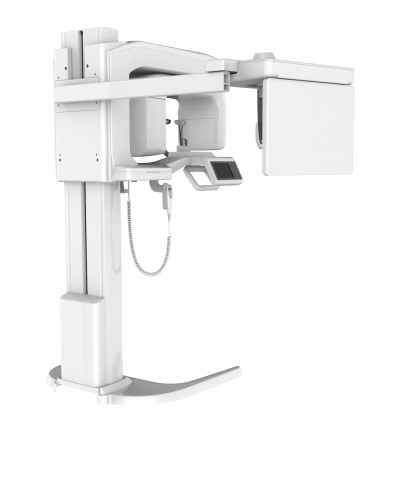

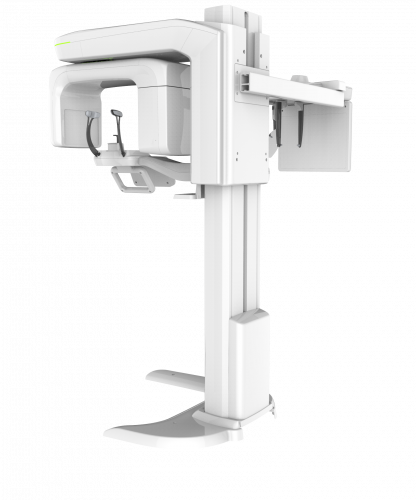

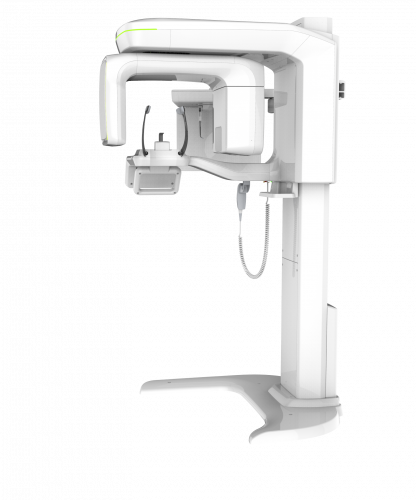

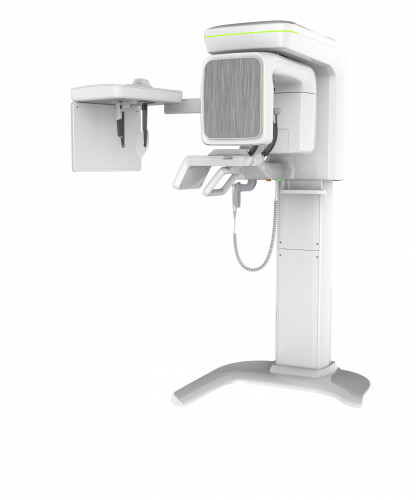

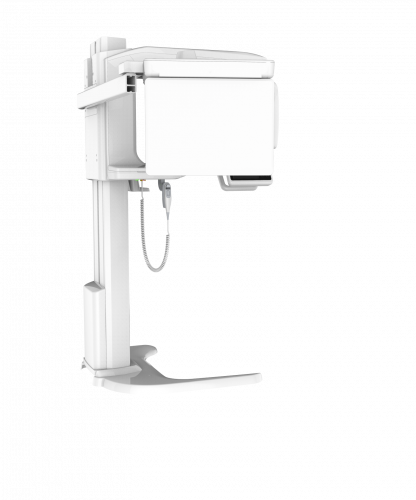

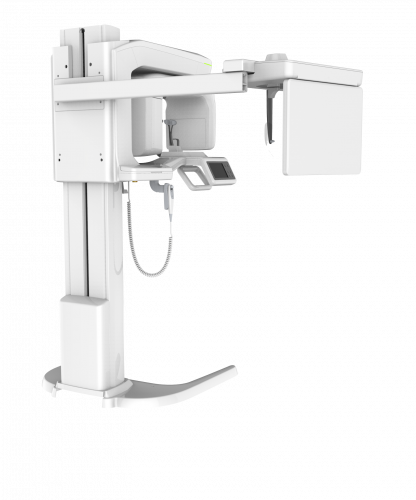

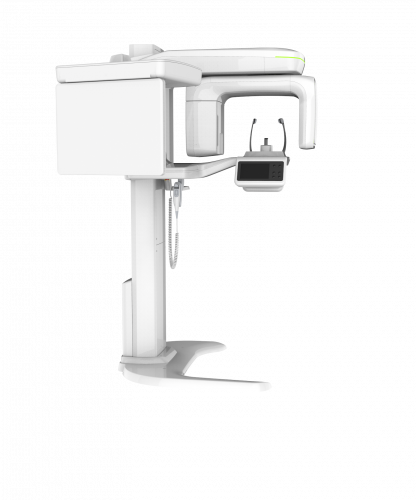

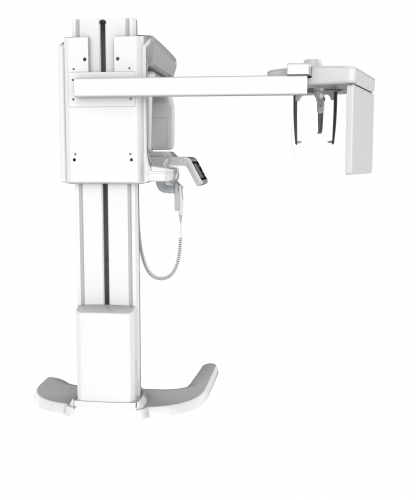

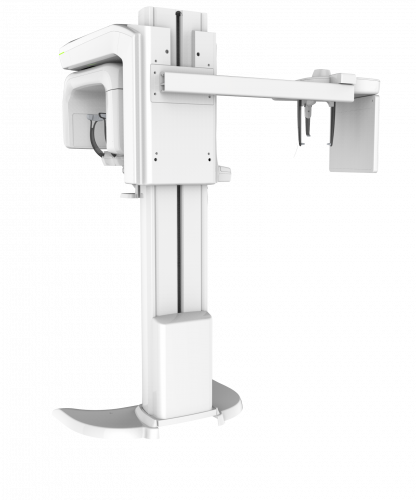

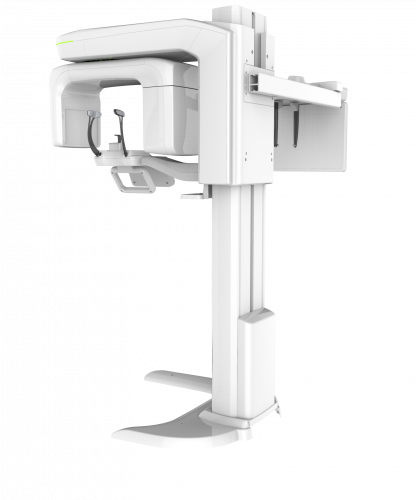

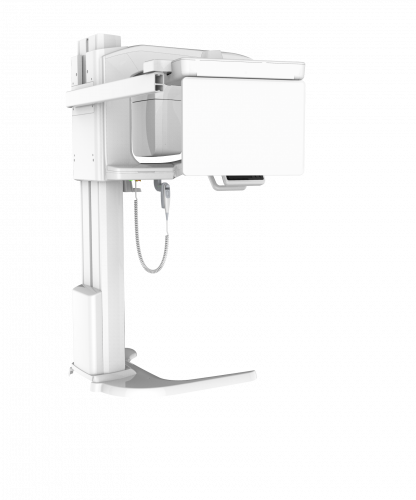

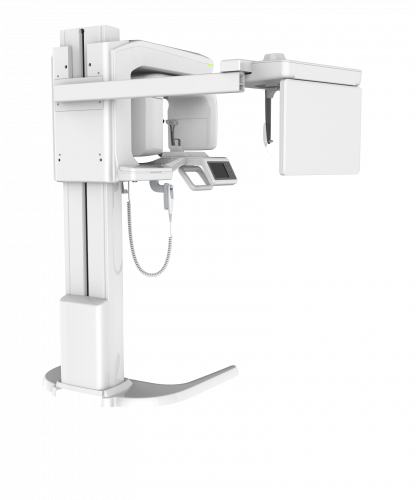

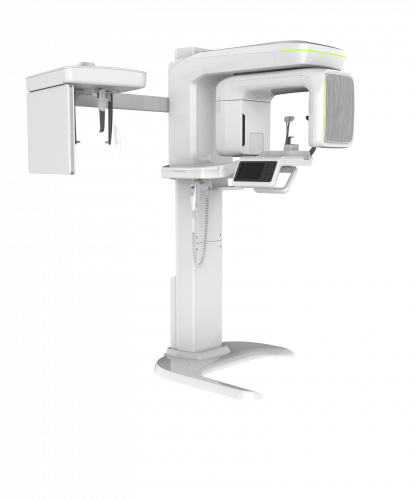

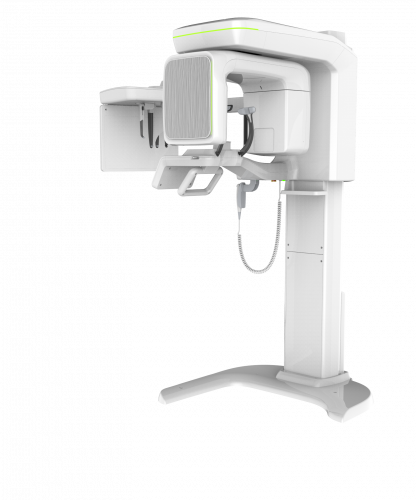

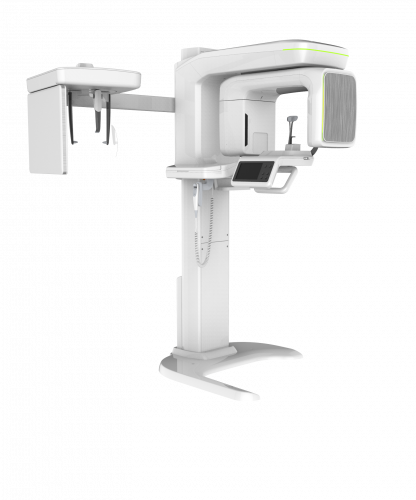

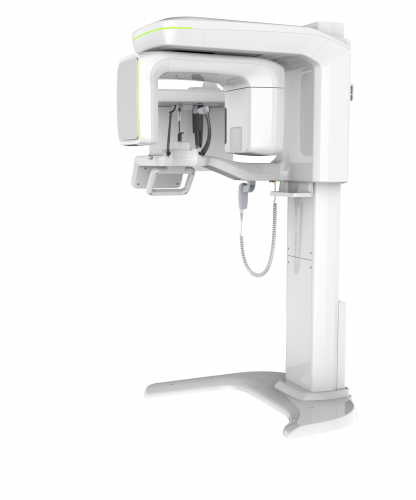

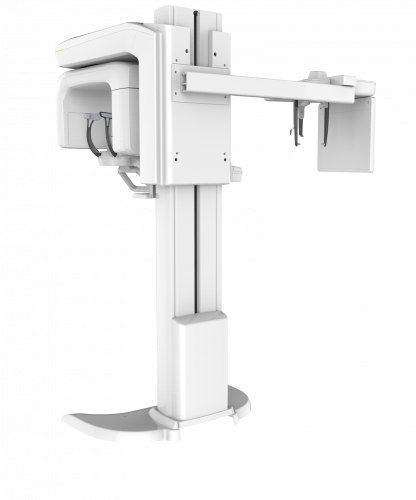

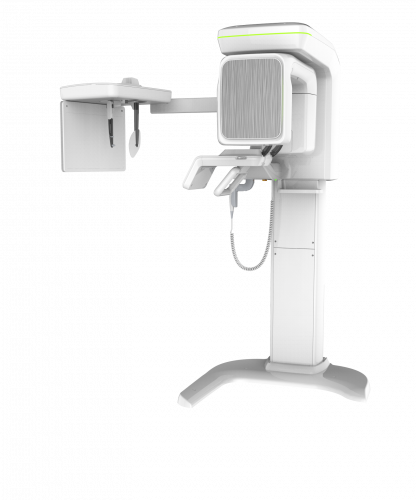

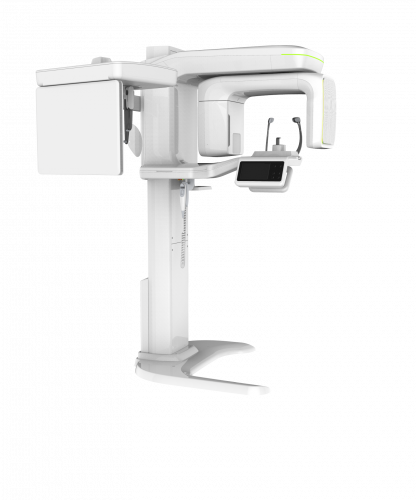

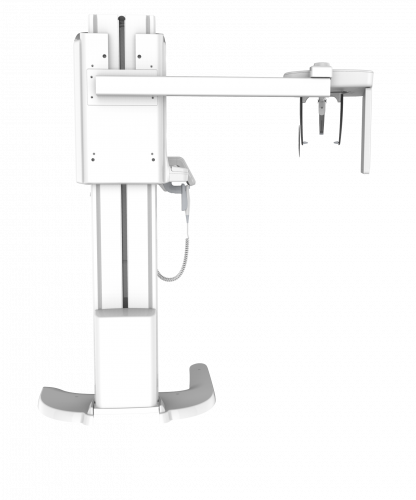

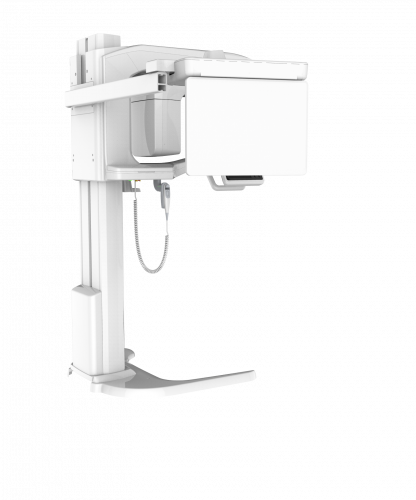

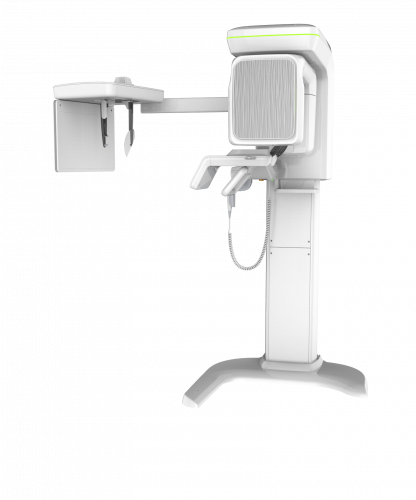

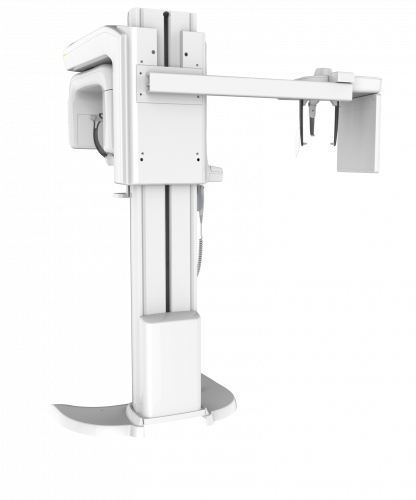

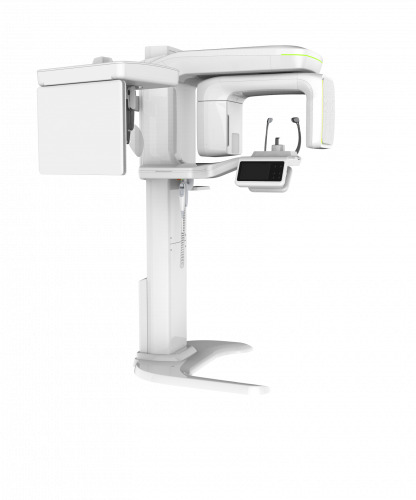

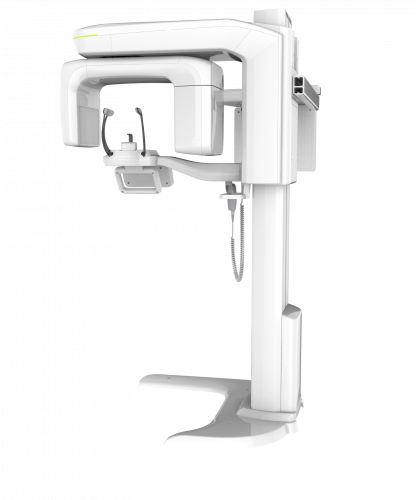

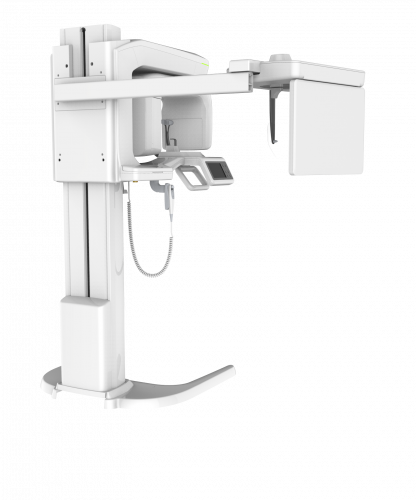

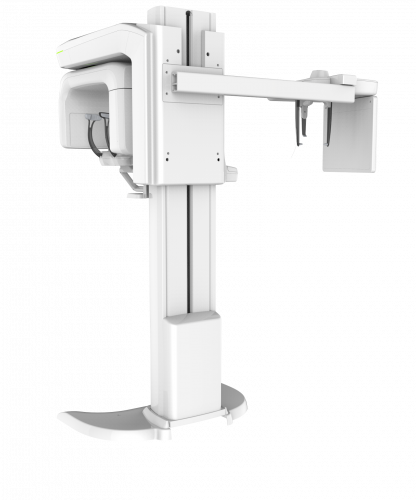

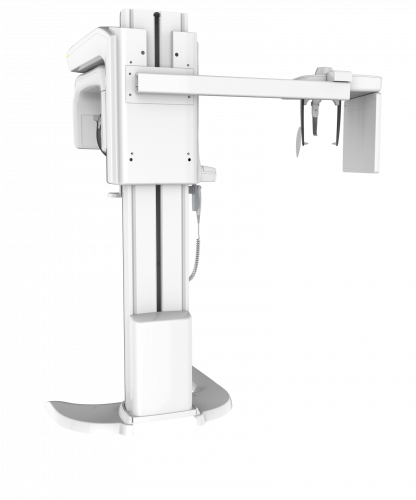

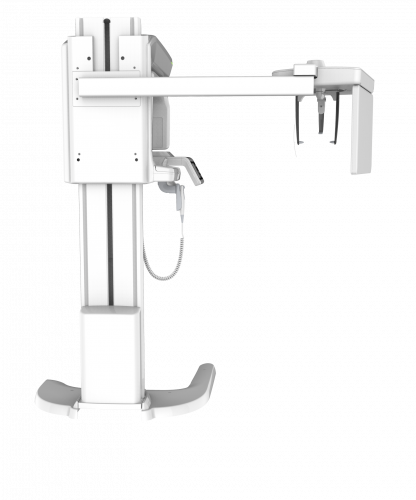

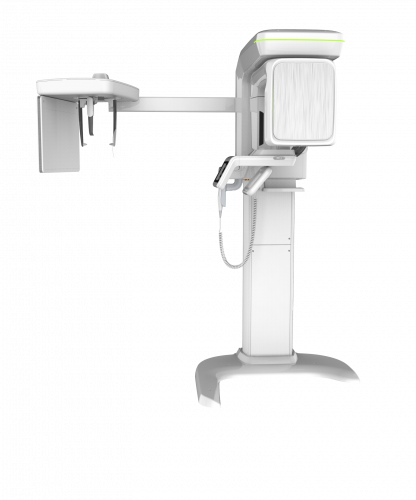

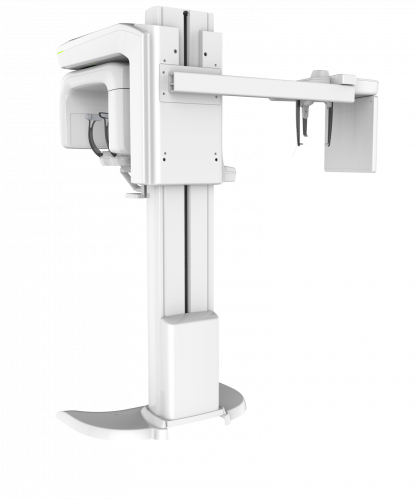

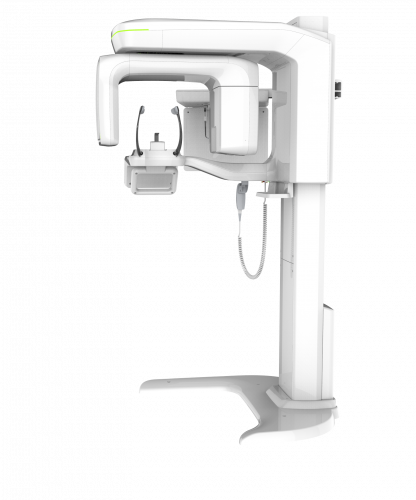

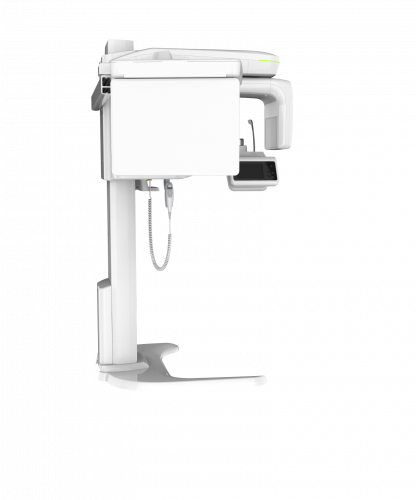

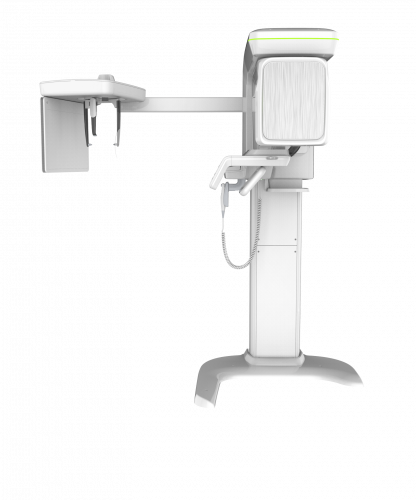

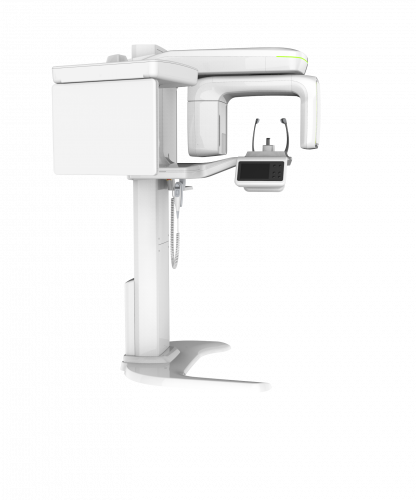

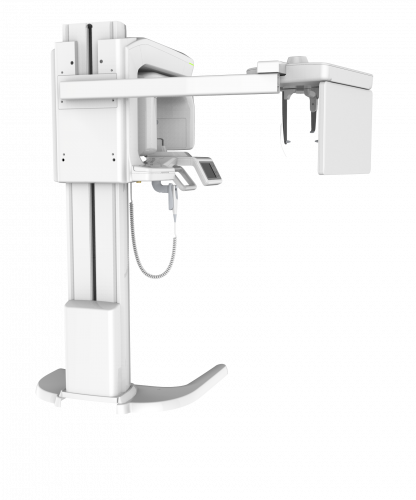

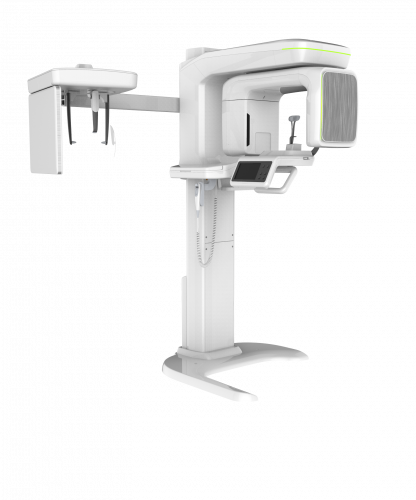

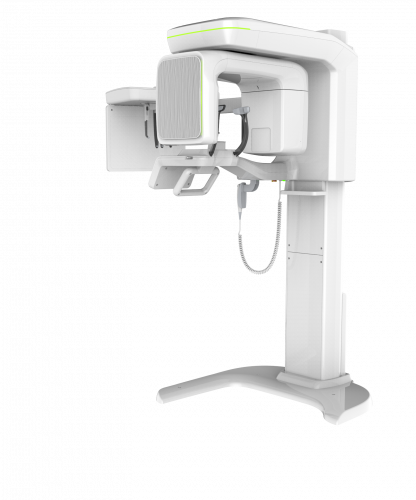

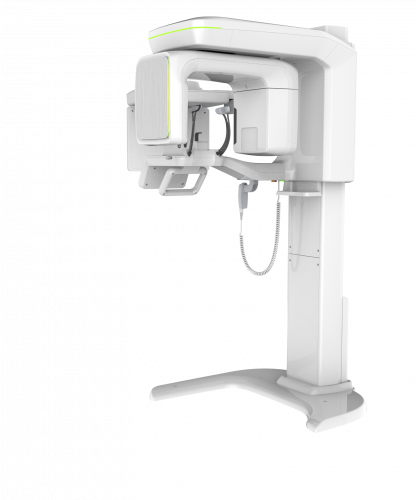

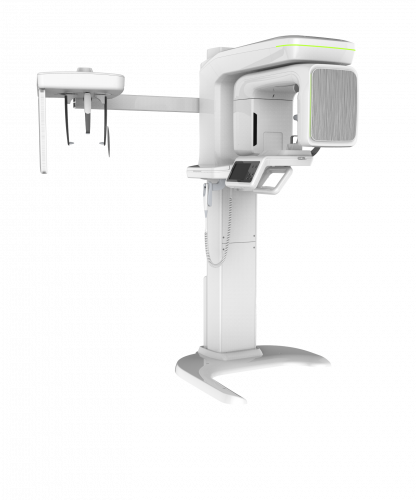

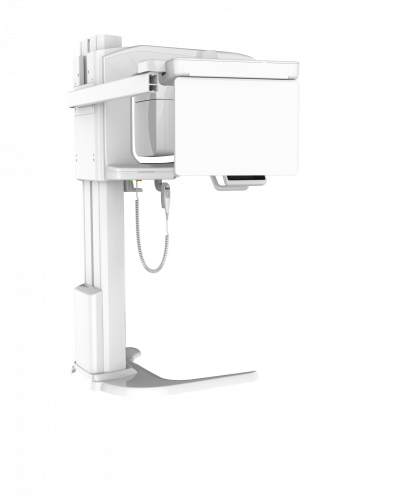

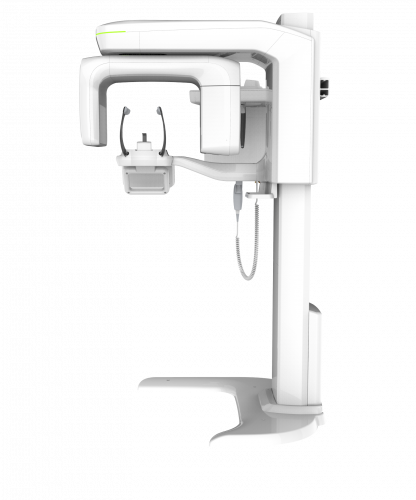

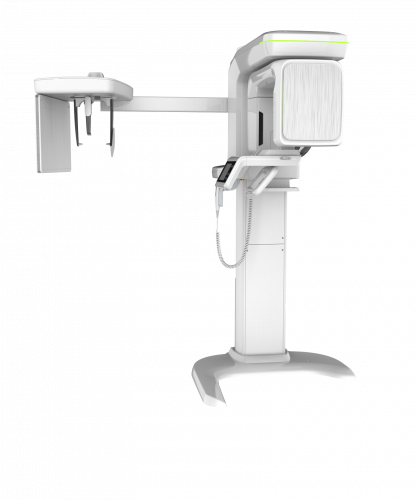

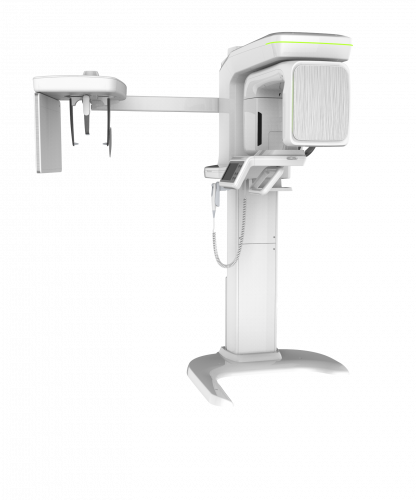

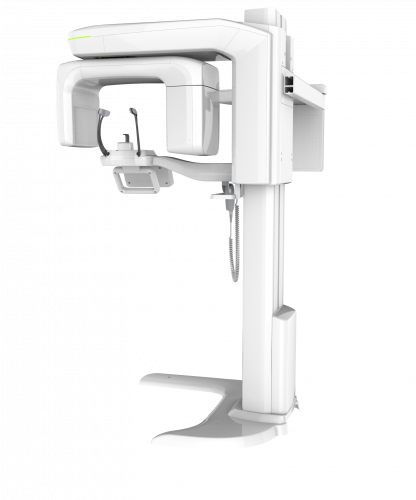

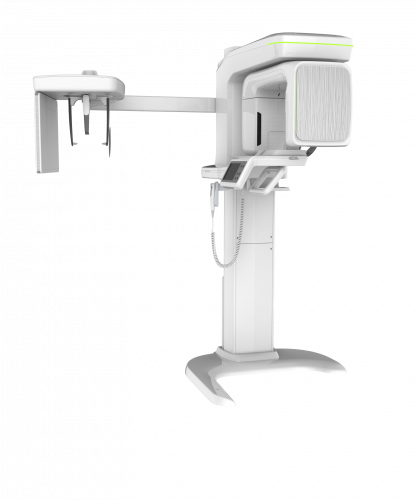

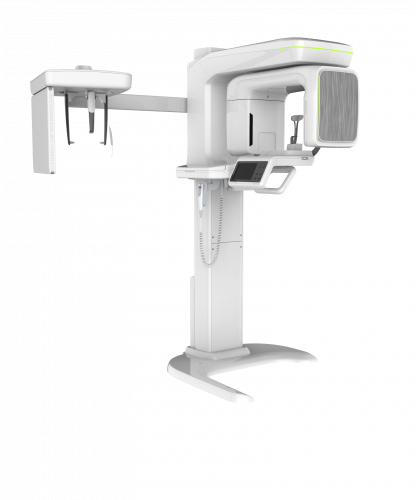

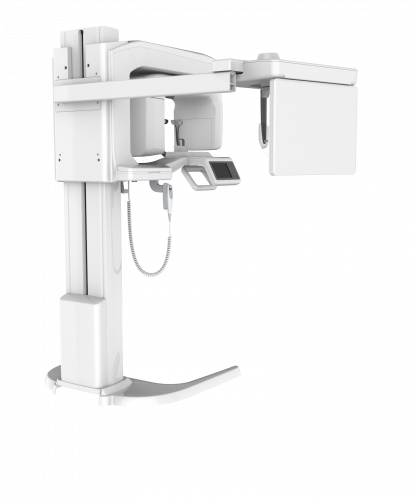

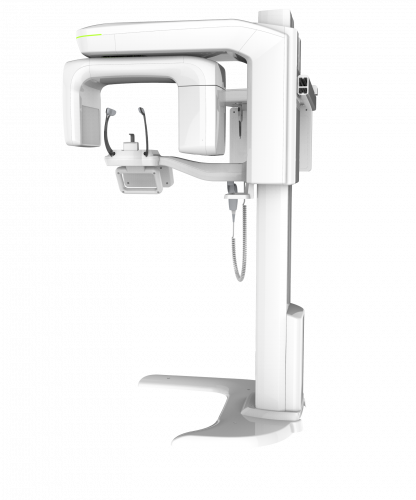

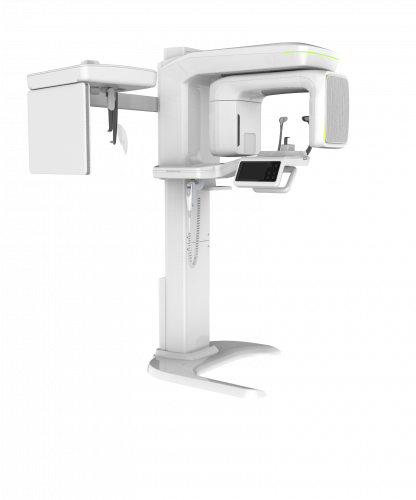

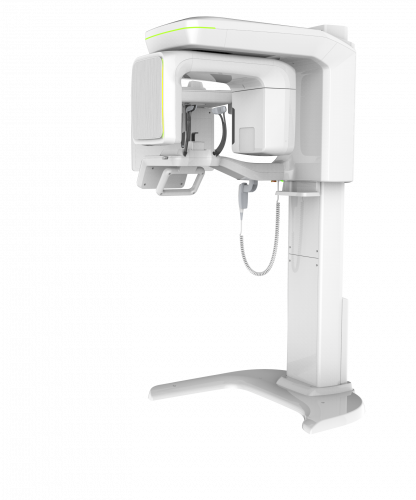

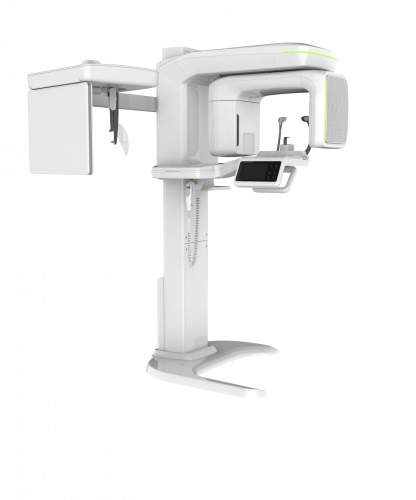

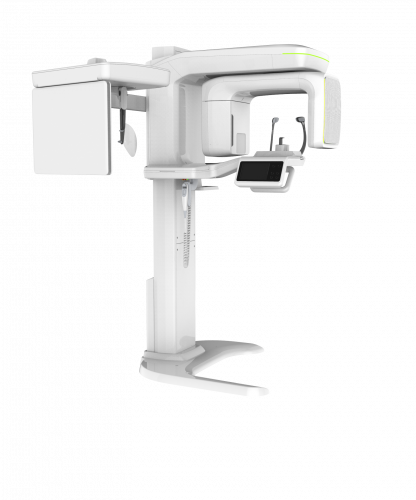

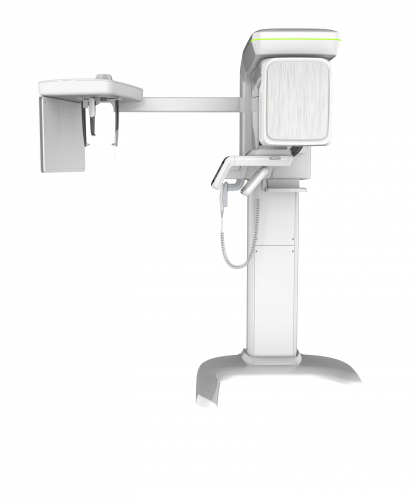

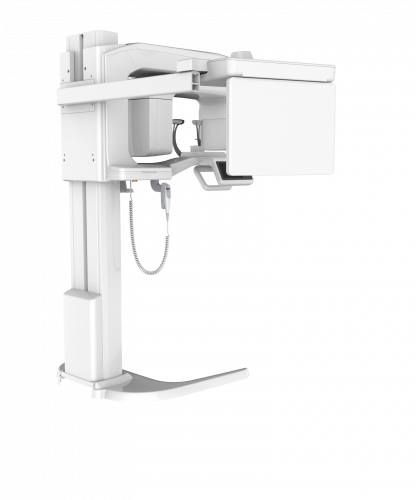

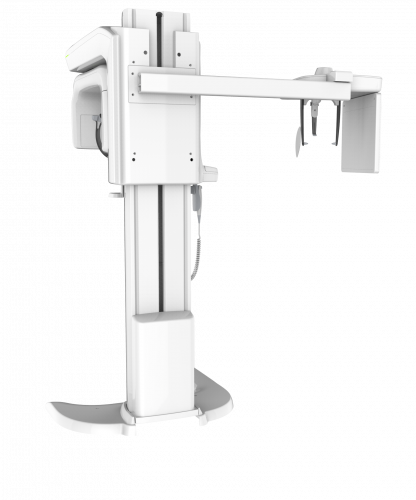

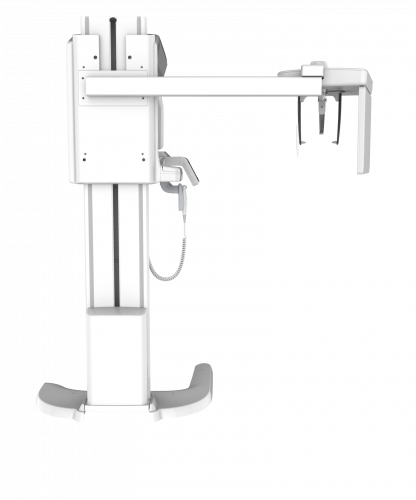

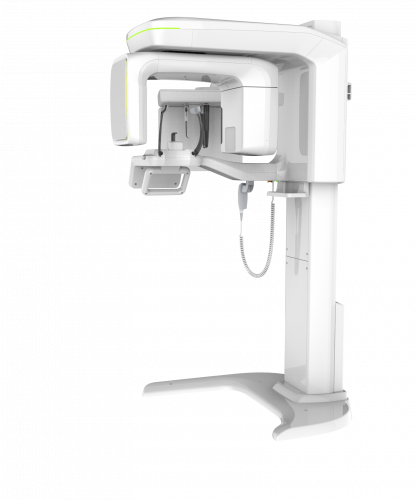

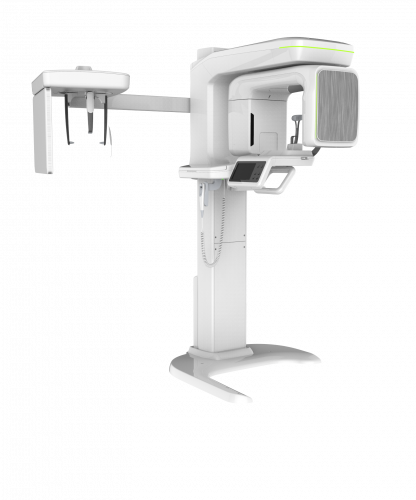

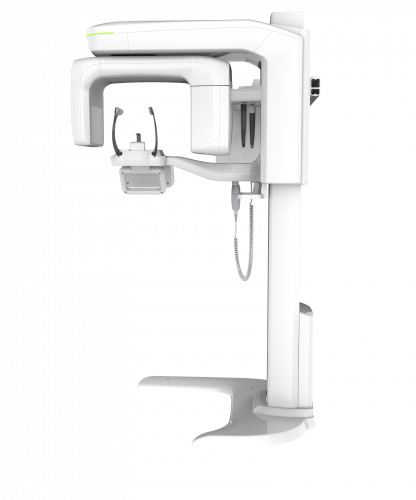

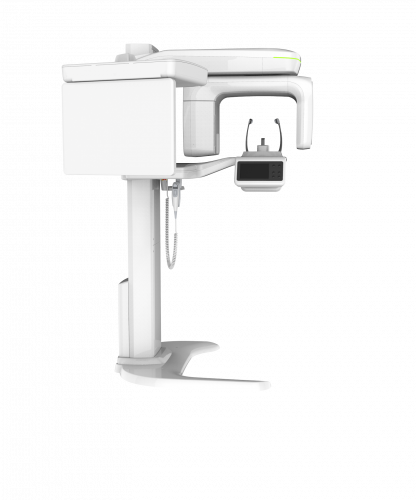

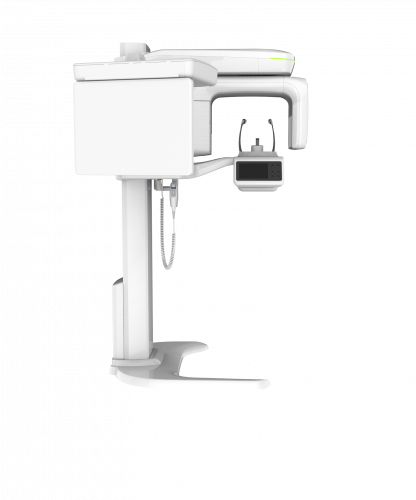

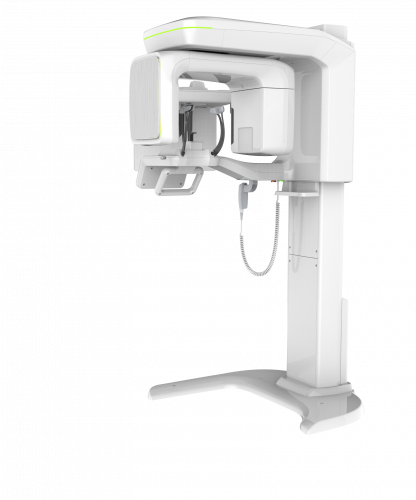

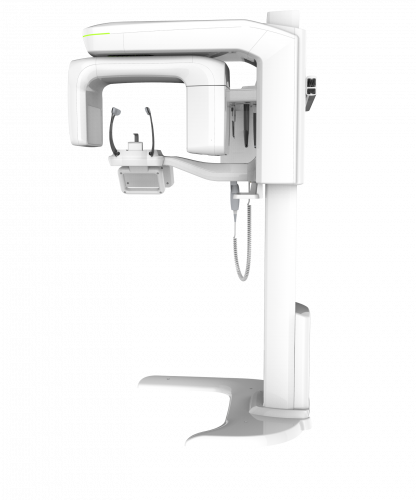

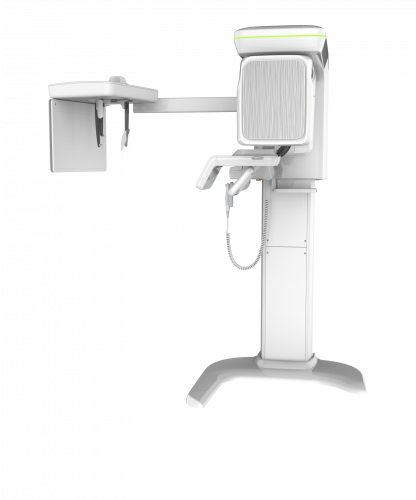

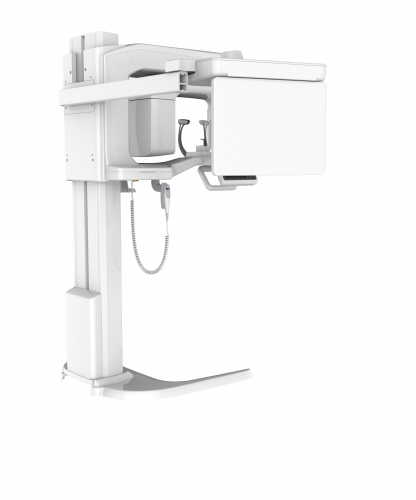

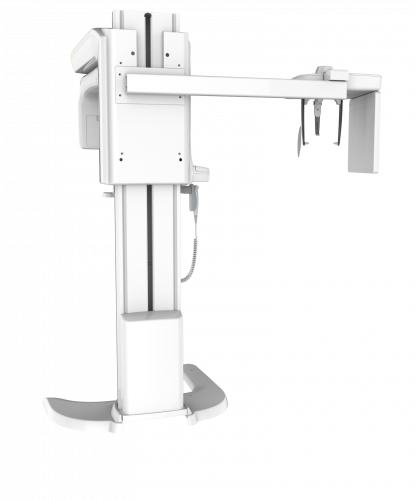

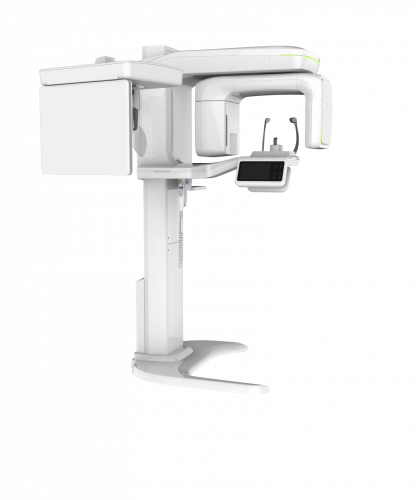

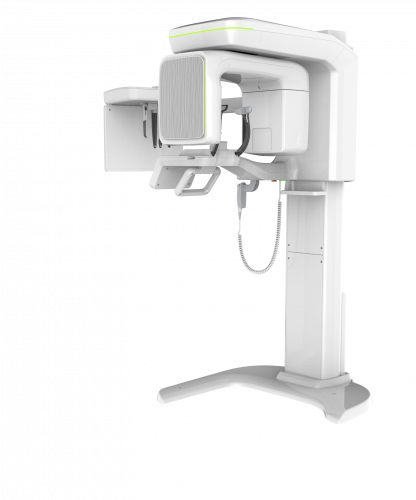

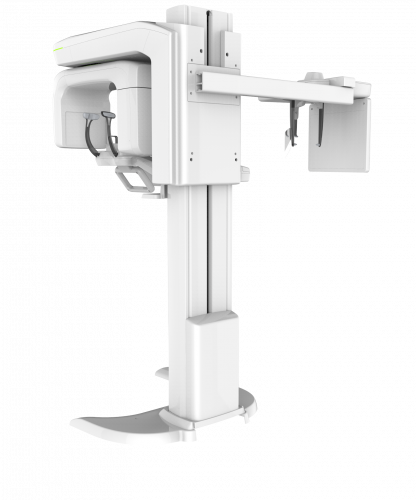

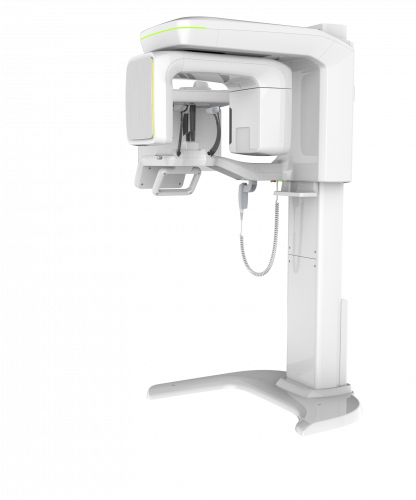

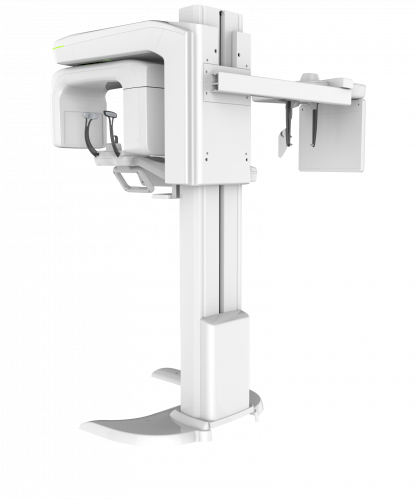

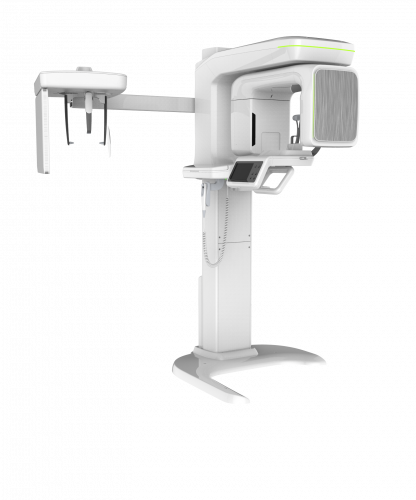

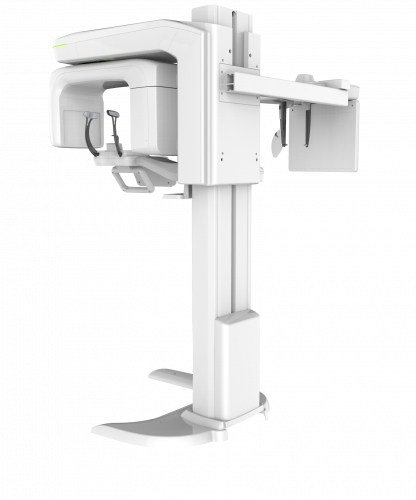

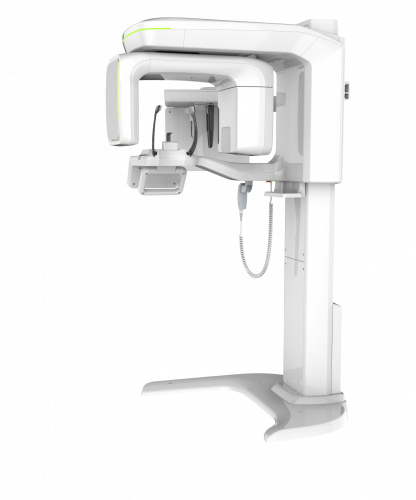

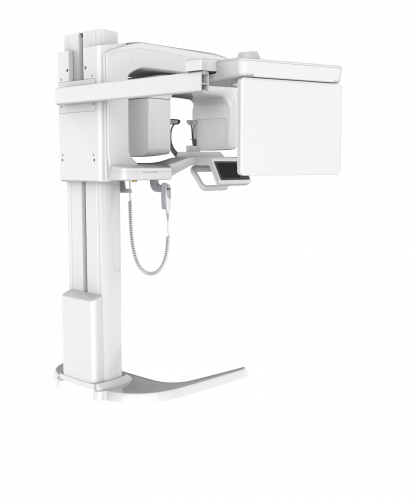

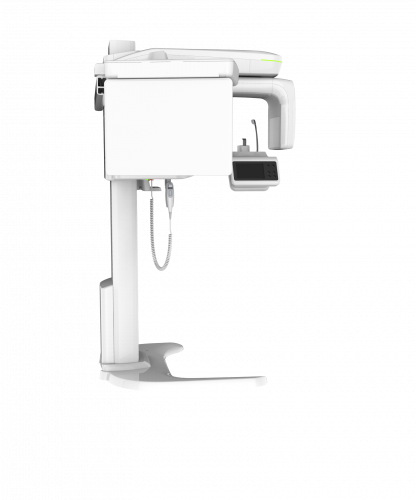

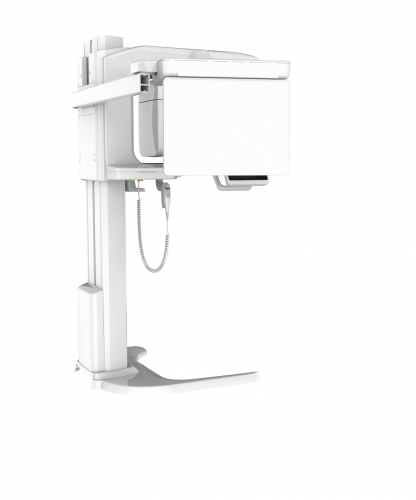

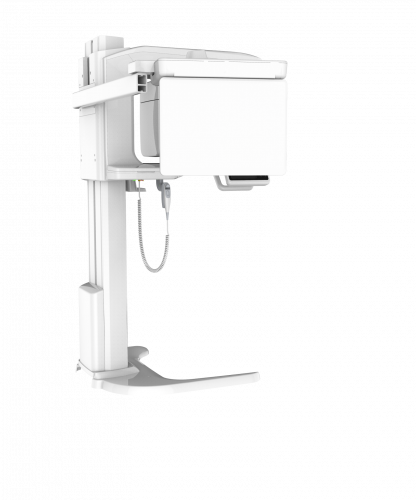

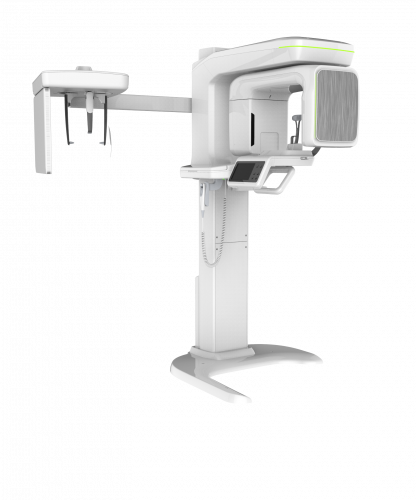

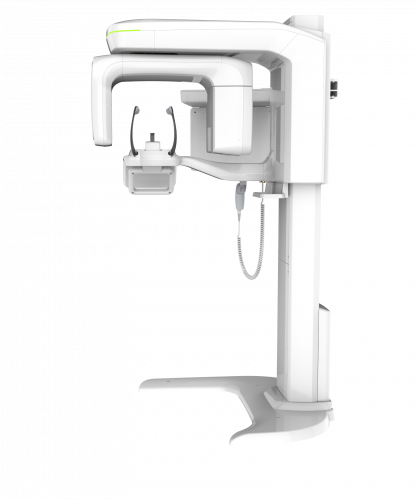

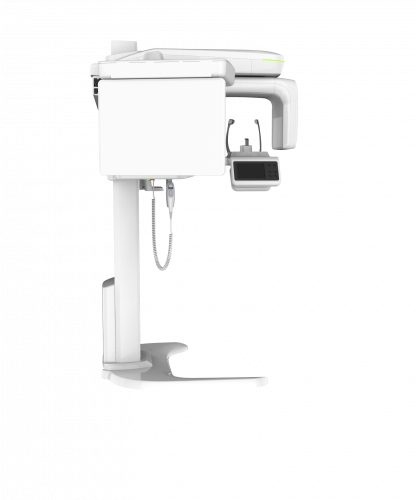

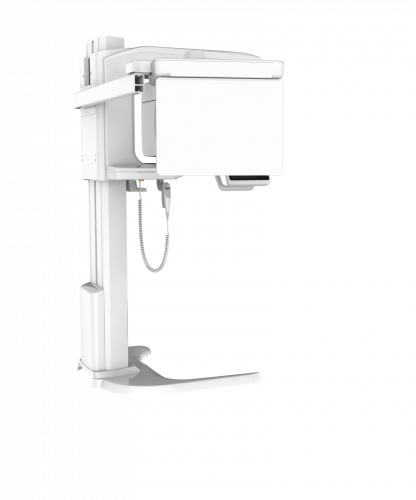

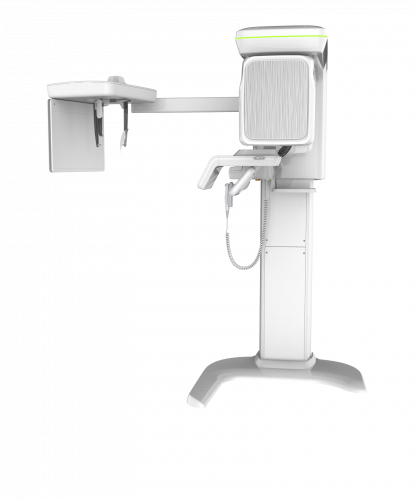

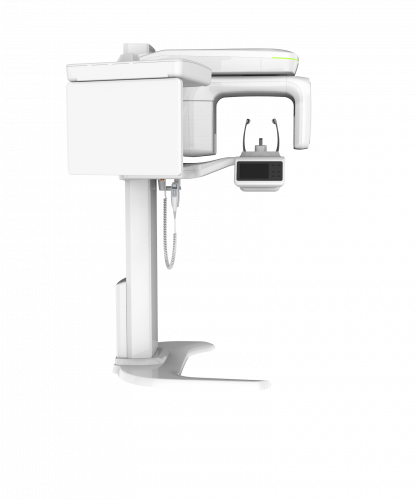

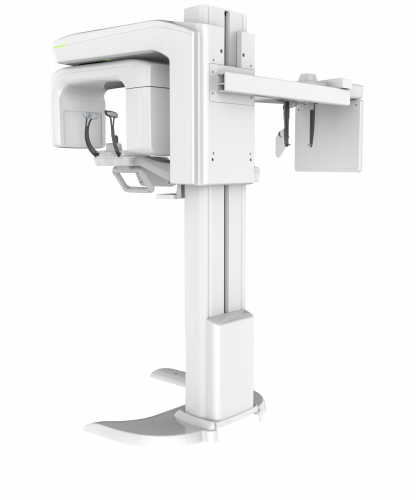

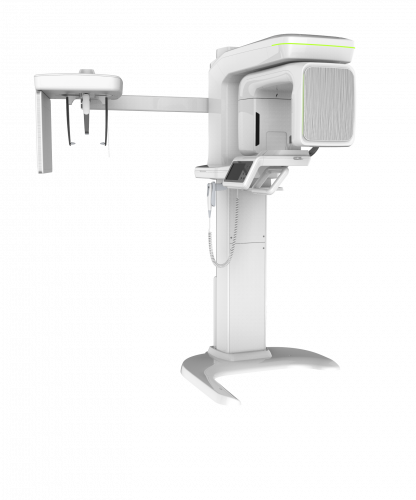

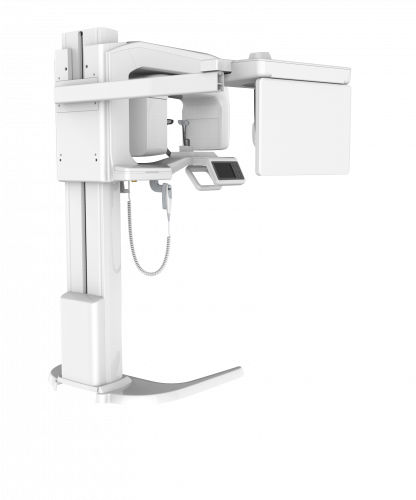

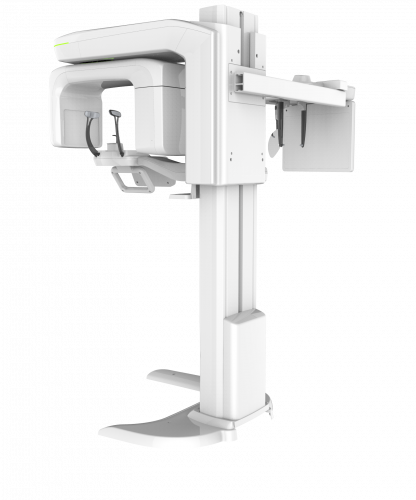

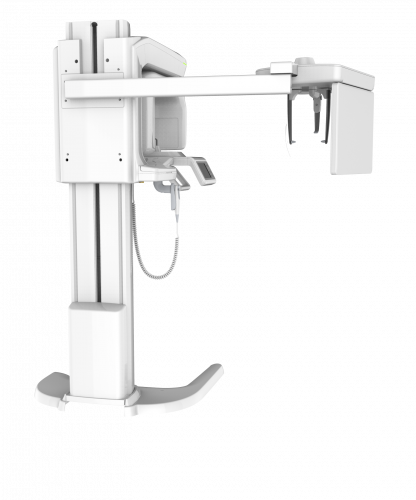

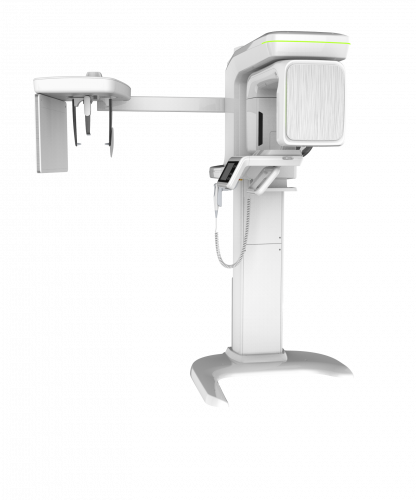

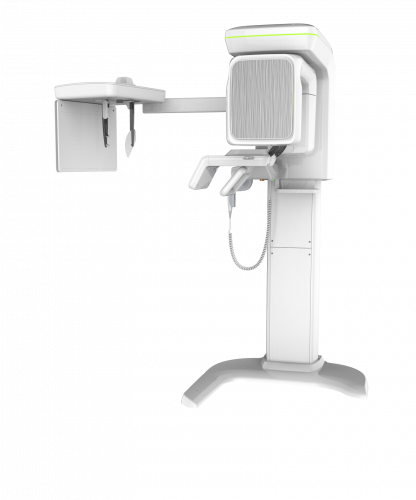

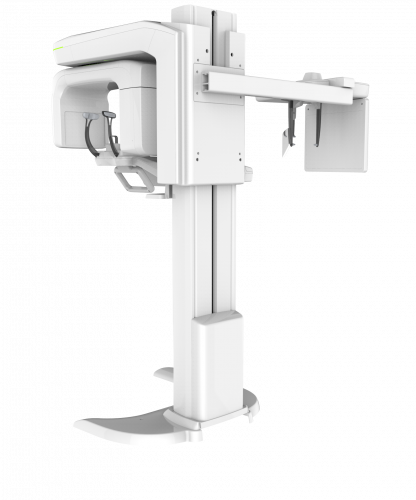

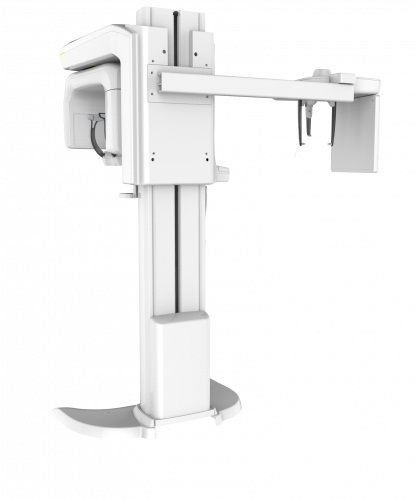

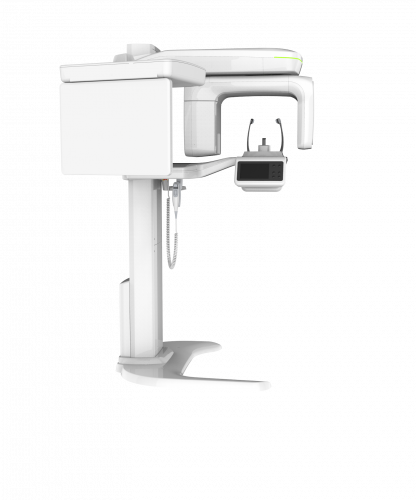

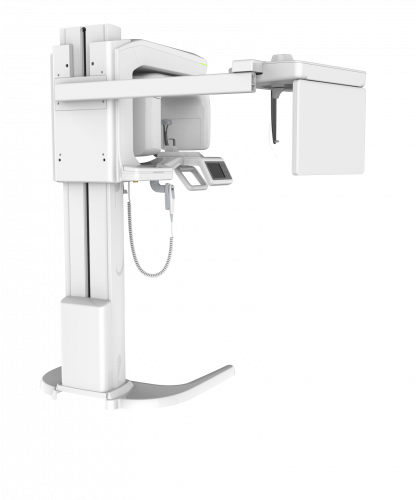

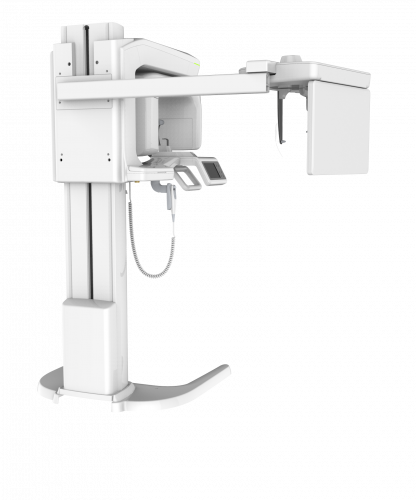

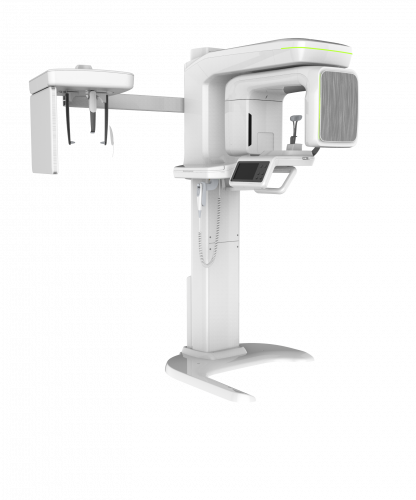

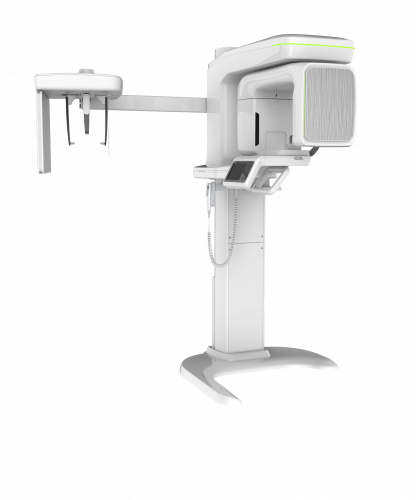

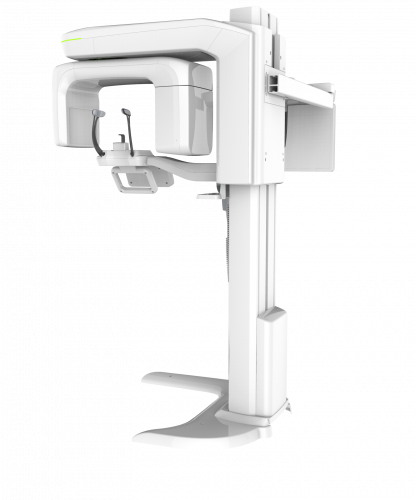

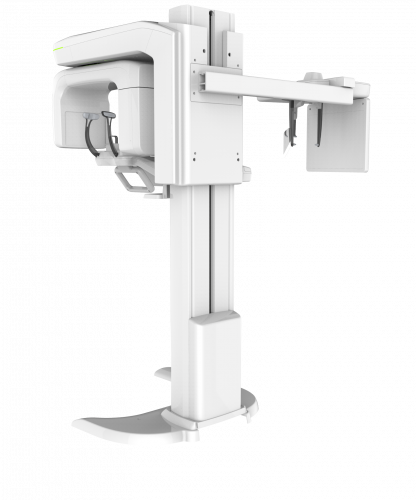

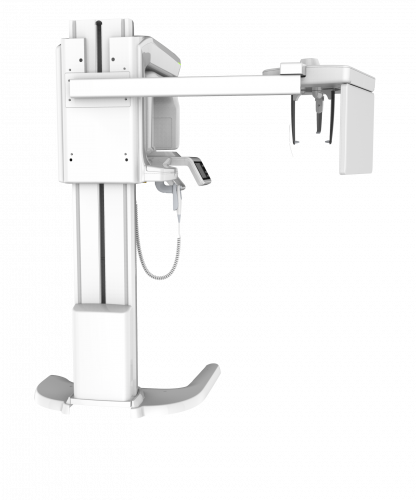

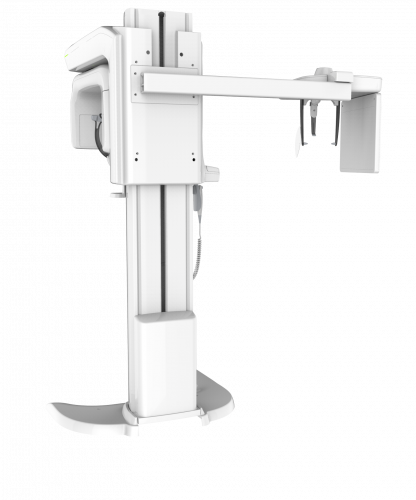

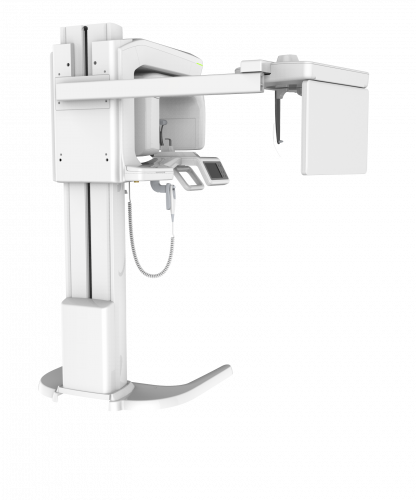

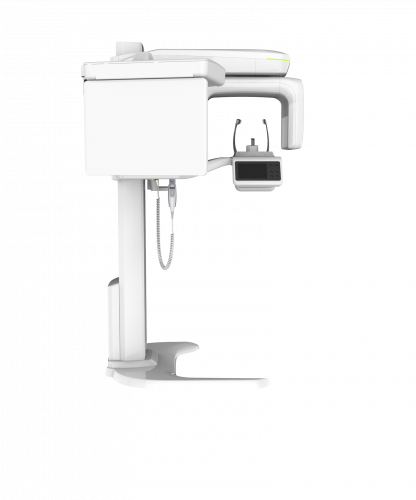

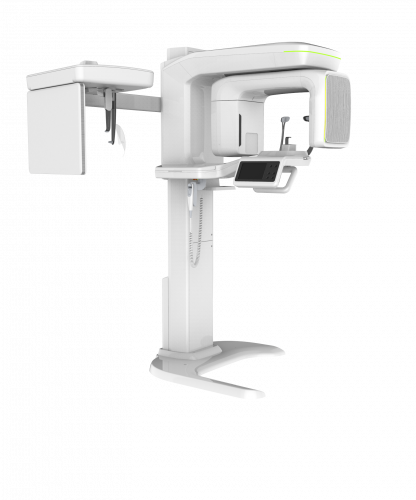

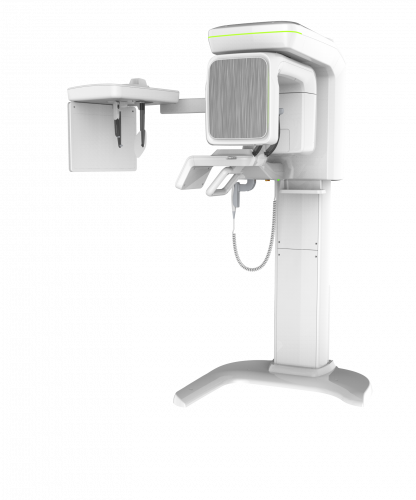

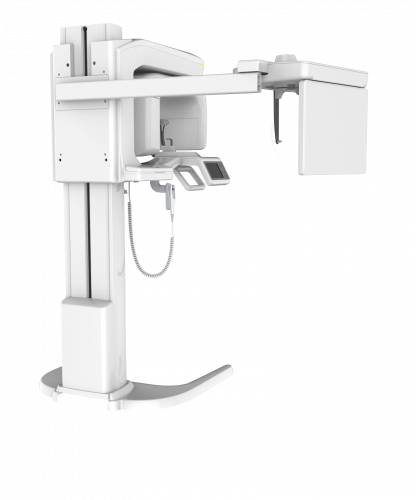

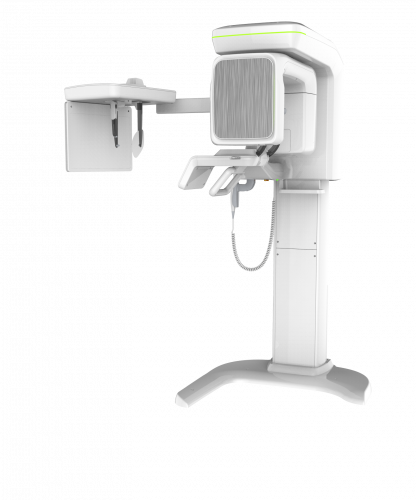

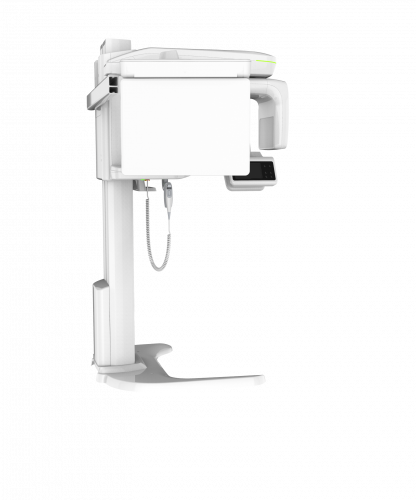

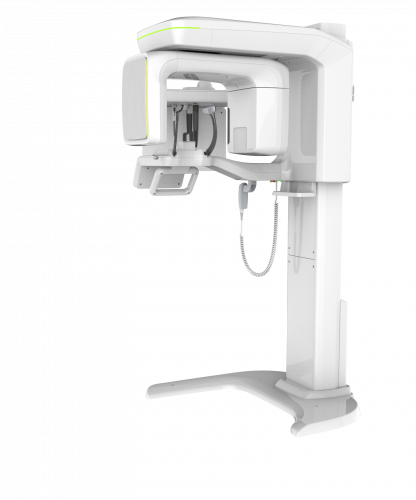

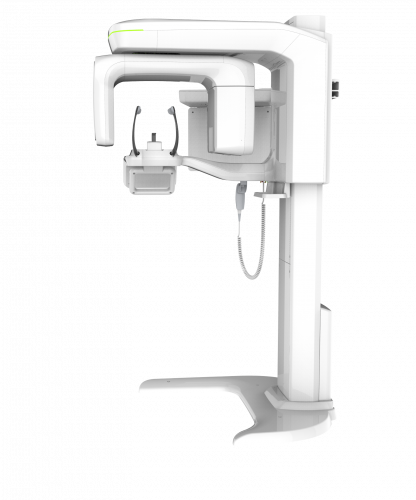

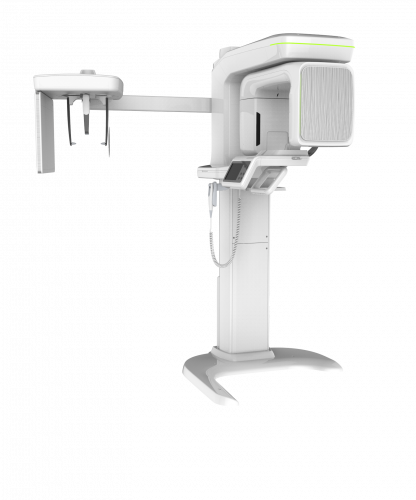

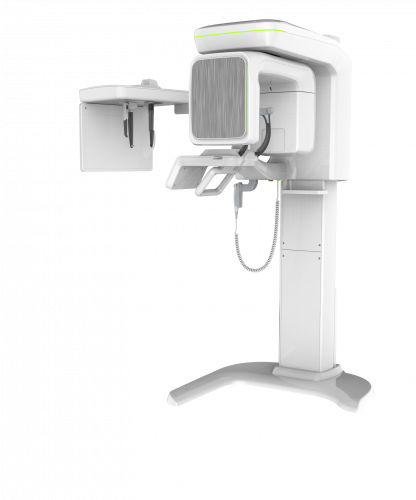

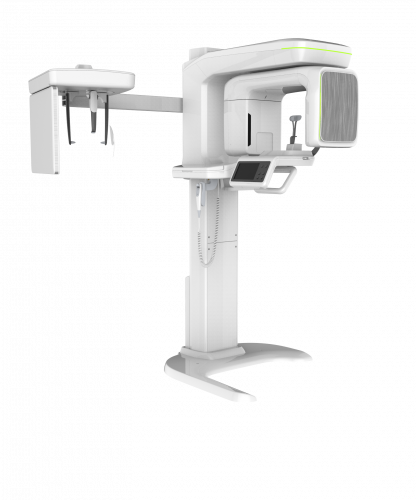

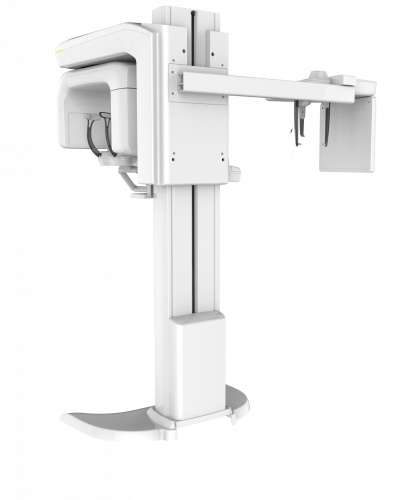

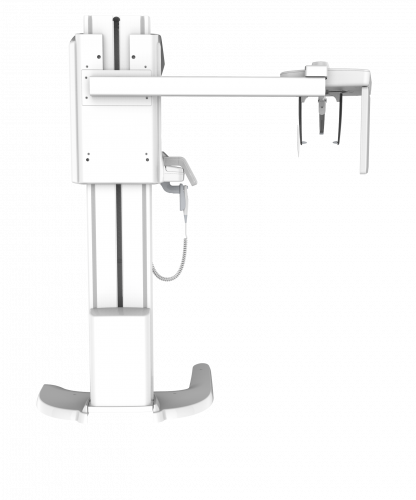

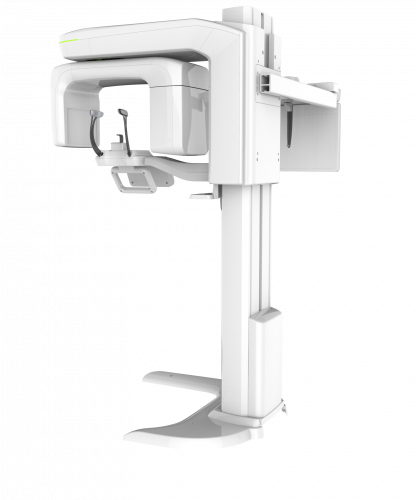

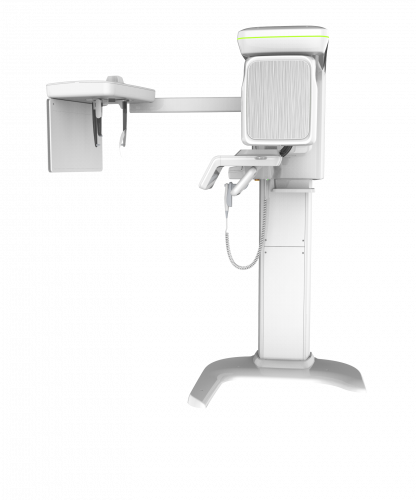

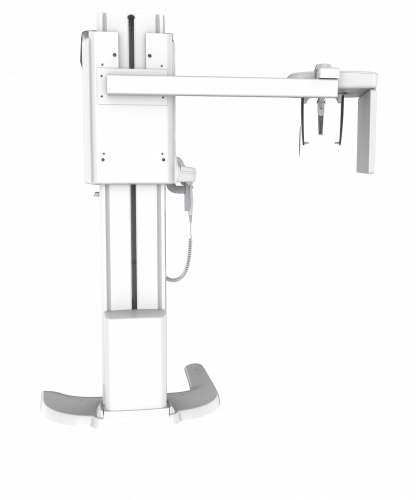

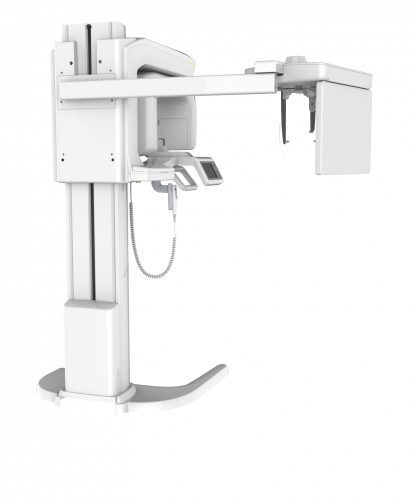

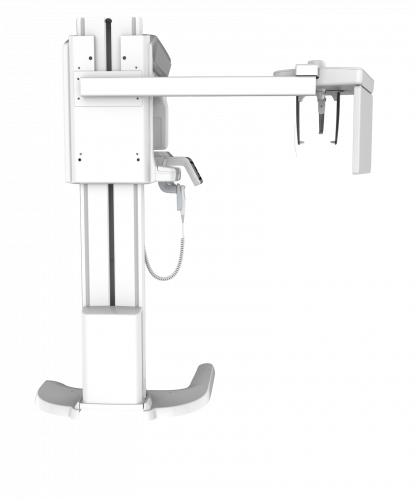

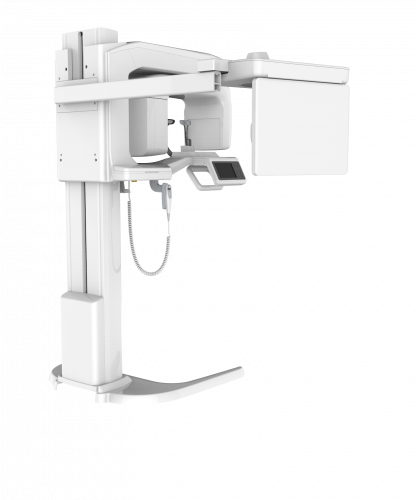

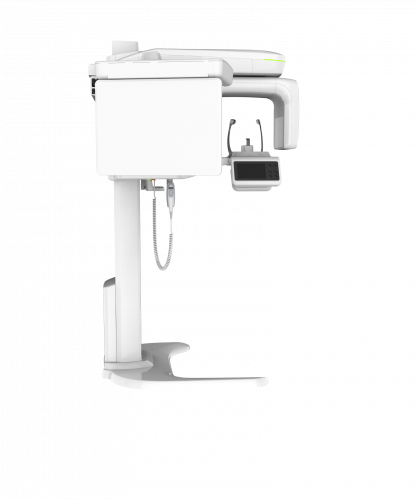

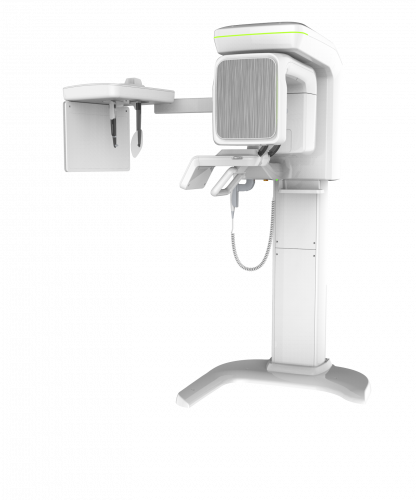

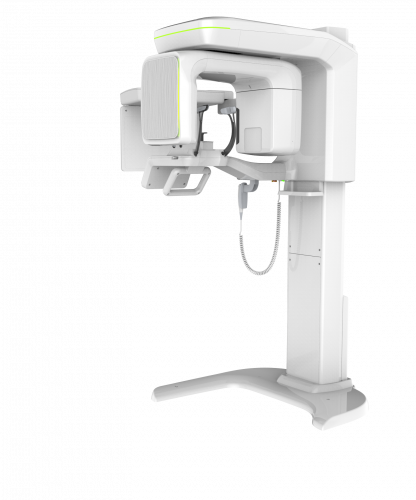

360 VIEW

Drag the product with your mouse or fingures. Or, click on the feature from the list.

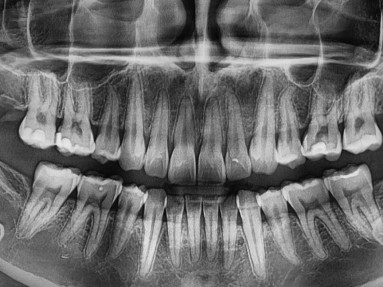

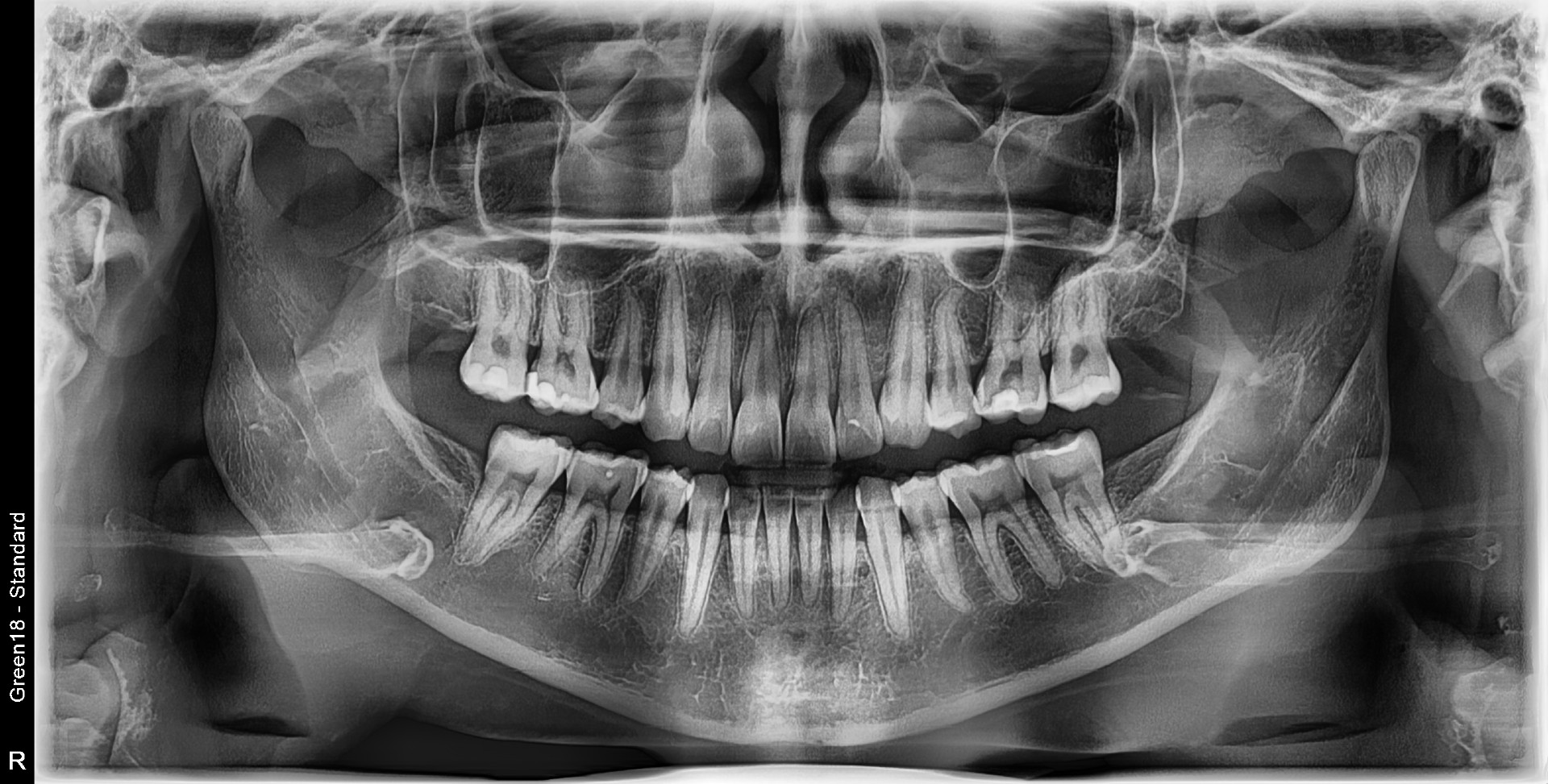

PANO

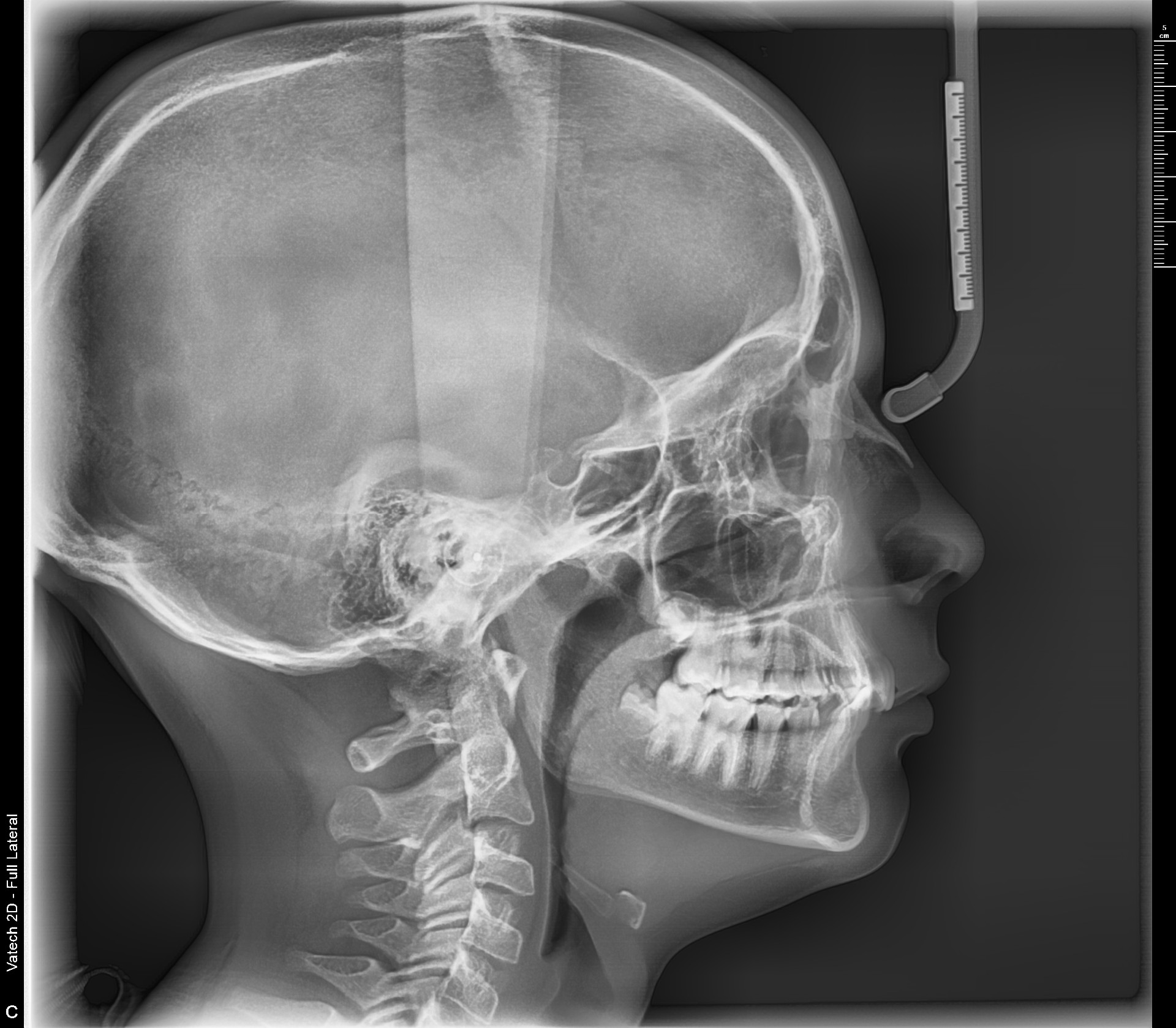

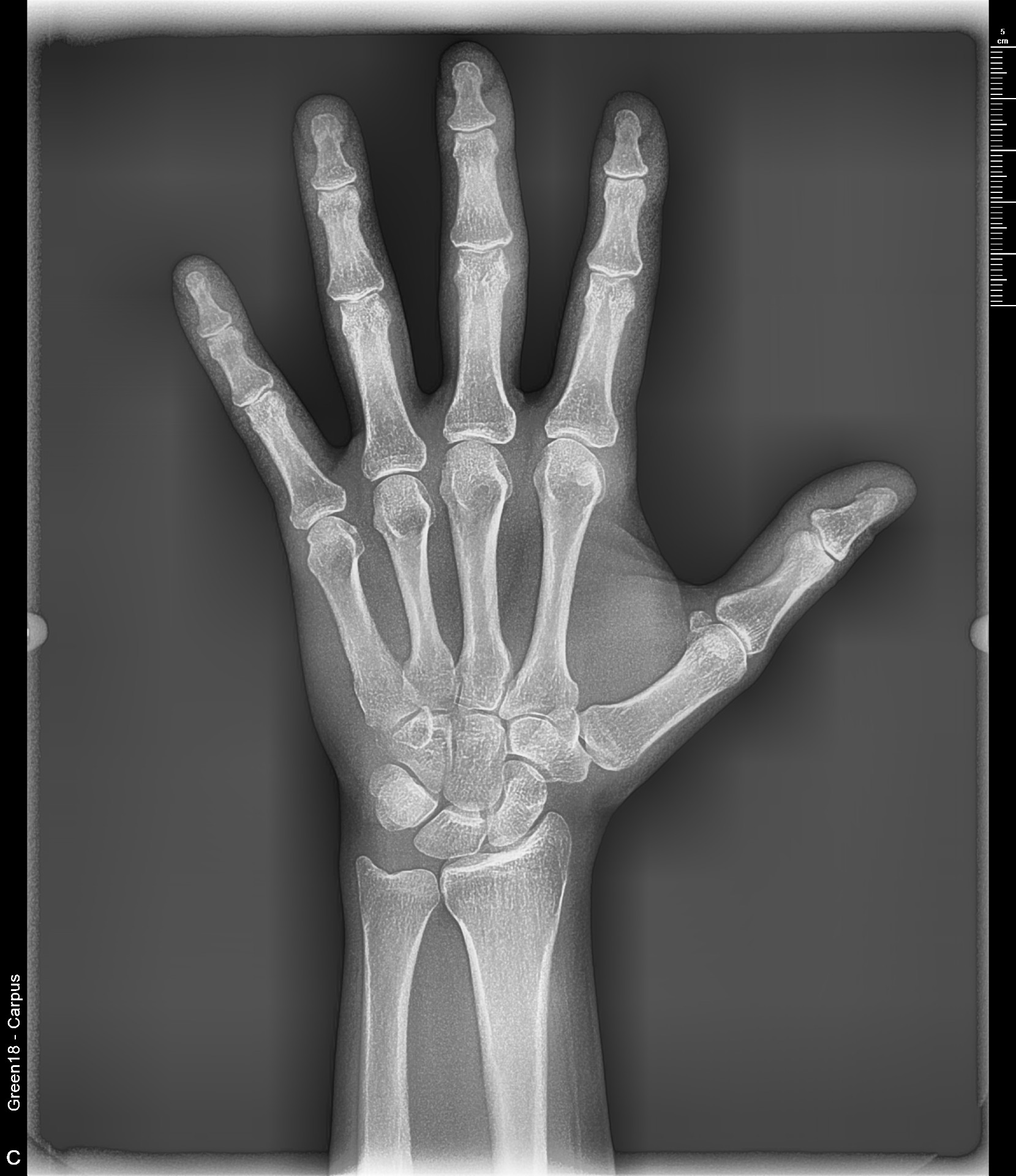

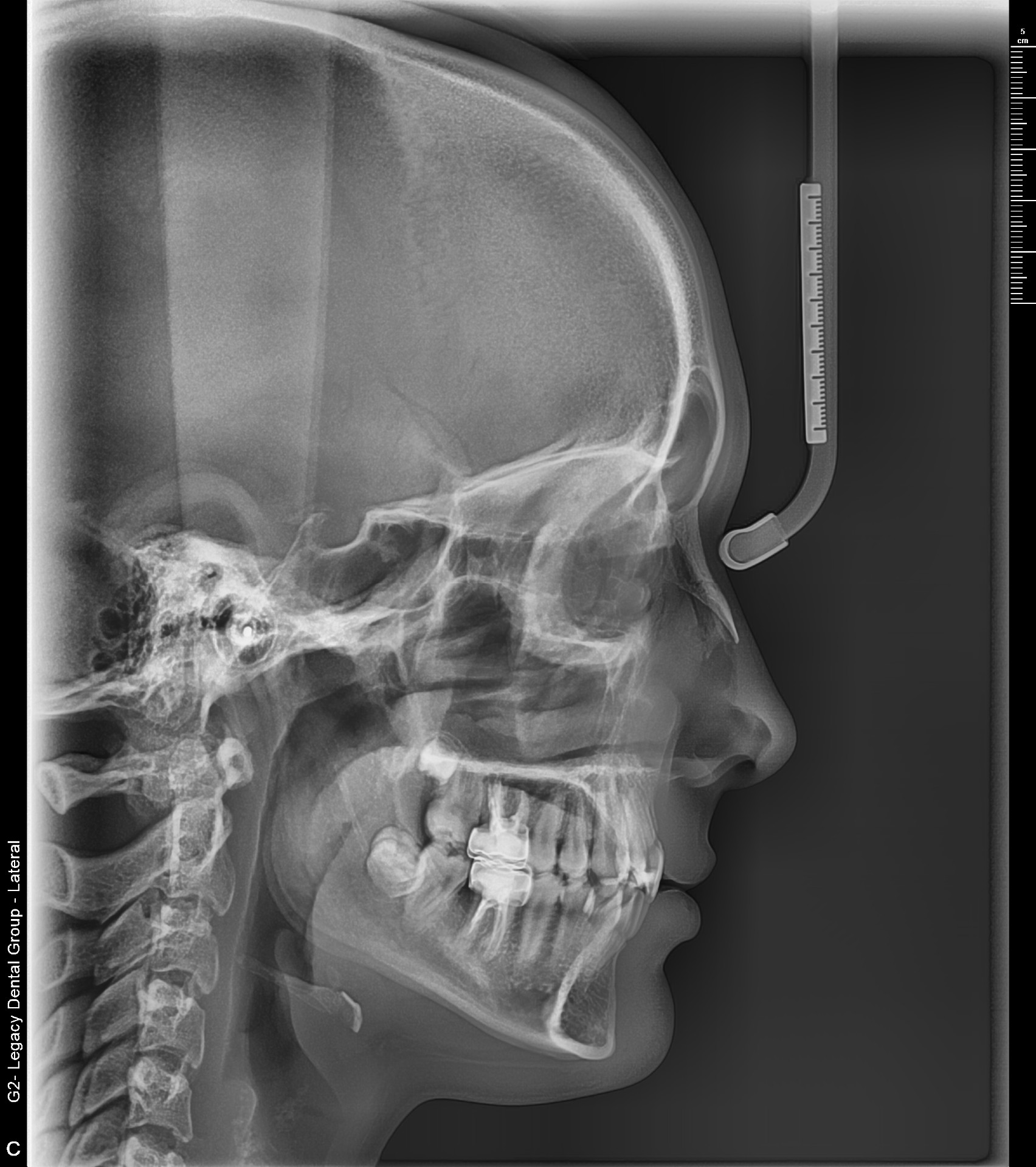

CEPH
PANO
CEPH

FEATURES

THE NEXT GREEN INNOVATION

3D Scanning for Model
pax-i-insight feature1

DESCRIPTION

ADVANCED 4-IN-1 DIGITAL X-RAY IMAGING SYSTEM

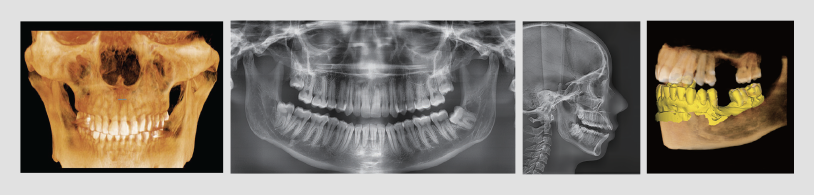

Green CT 2 is an advanced 4-in-1 digital X-ray imaging system that incorporates PANO, CEPH (Optional), CBCT and MODEL Scan.
It provides high quality images with lower radiation by combining imaging processing and accumulated experience in dental imaging from VATECH.
This will improve your diagnostic accuracy with increased treatment planning and patient satisfaction.

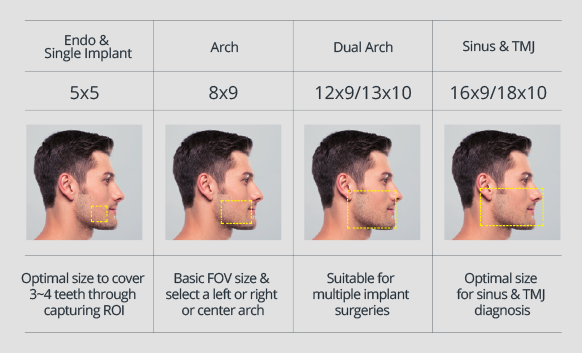

MULTI FOV SELECTION

Green CT 2 offers a range of selectable fields of view.
The Multi FOV enables the user to select the optimum FOV Mode and minimizes exposure to areas not in the region of interest.
Select the proper FOV size among 18x10, 13x10, 8x9 and 5x5 based on a particular diagnostic need.

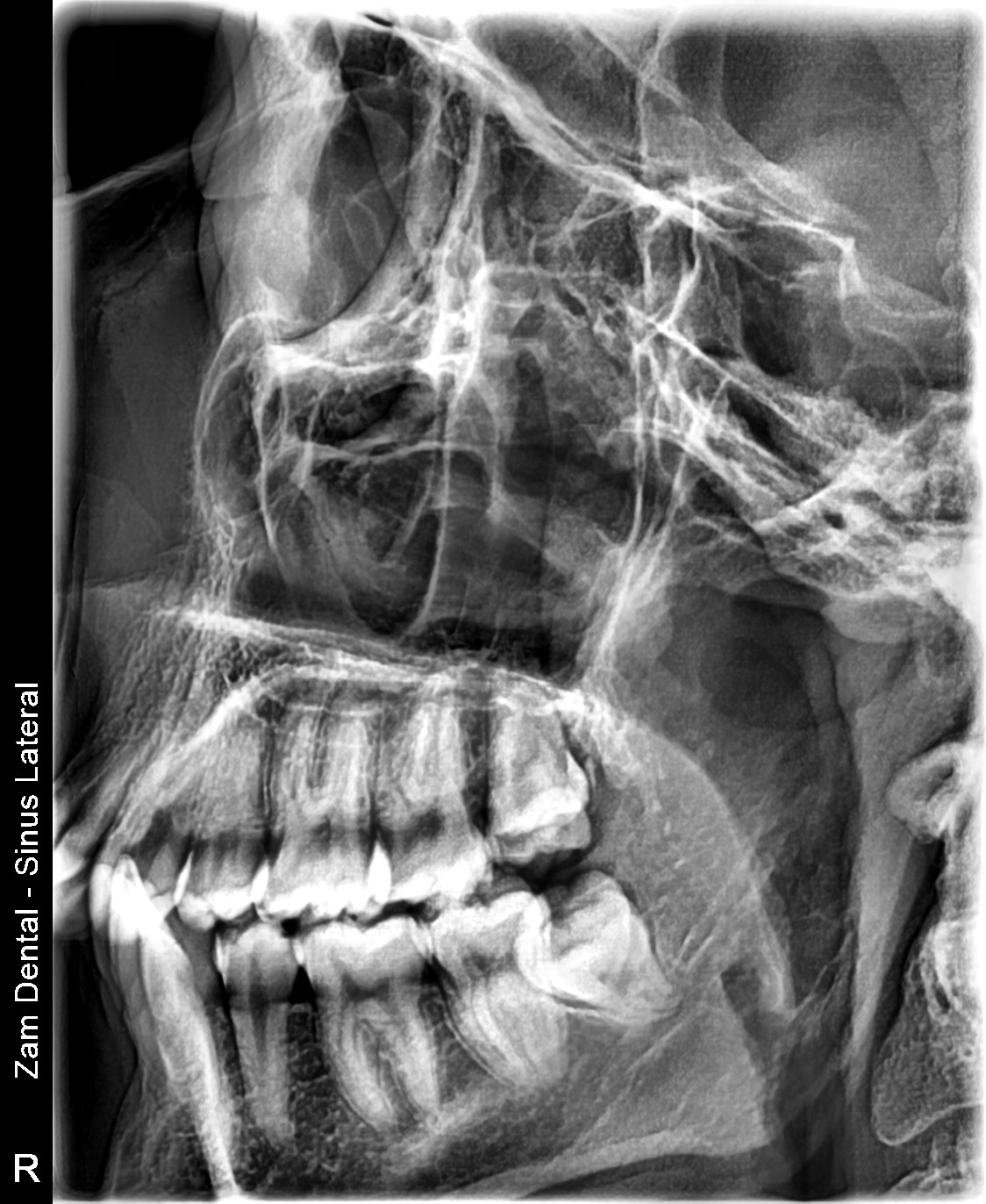

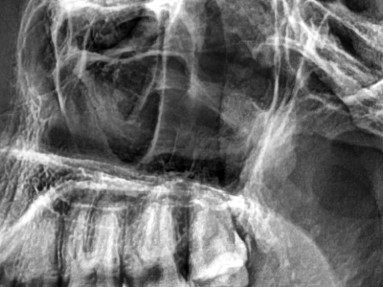

It covers the full arch region, sinus and left/right TMJ and it suits most oral surgery cases as well as multiple implant surgeries.

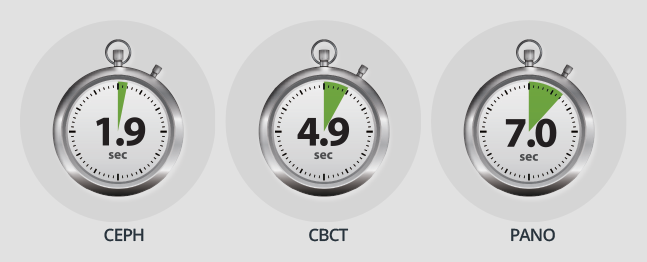

GREEN SCAN TIME

Green CT 2 minimizes motion artifact and enables faster work flow due to its scan time.
It produces superb diagnostic images, which will be a source of pride for any dental practice.
Focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.

LOW DOSE AND HIGH IMAGE QUALITY

What has been developed at Vatech breaks many conventions in dental radiography.
It was always believed that with low radiation comes inferior image quality, which renders it useless in clinical diagnosis.
However, Green CT 2 provides clinically diagnosable X-ray scans at a low X-ray dosage.
With low dose X-ray radiography, achieving clinically diagnosable image quality is the new golden-standard.

EFFECTIVE DOSE DATA

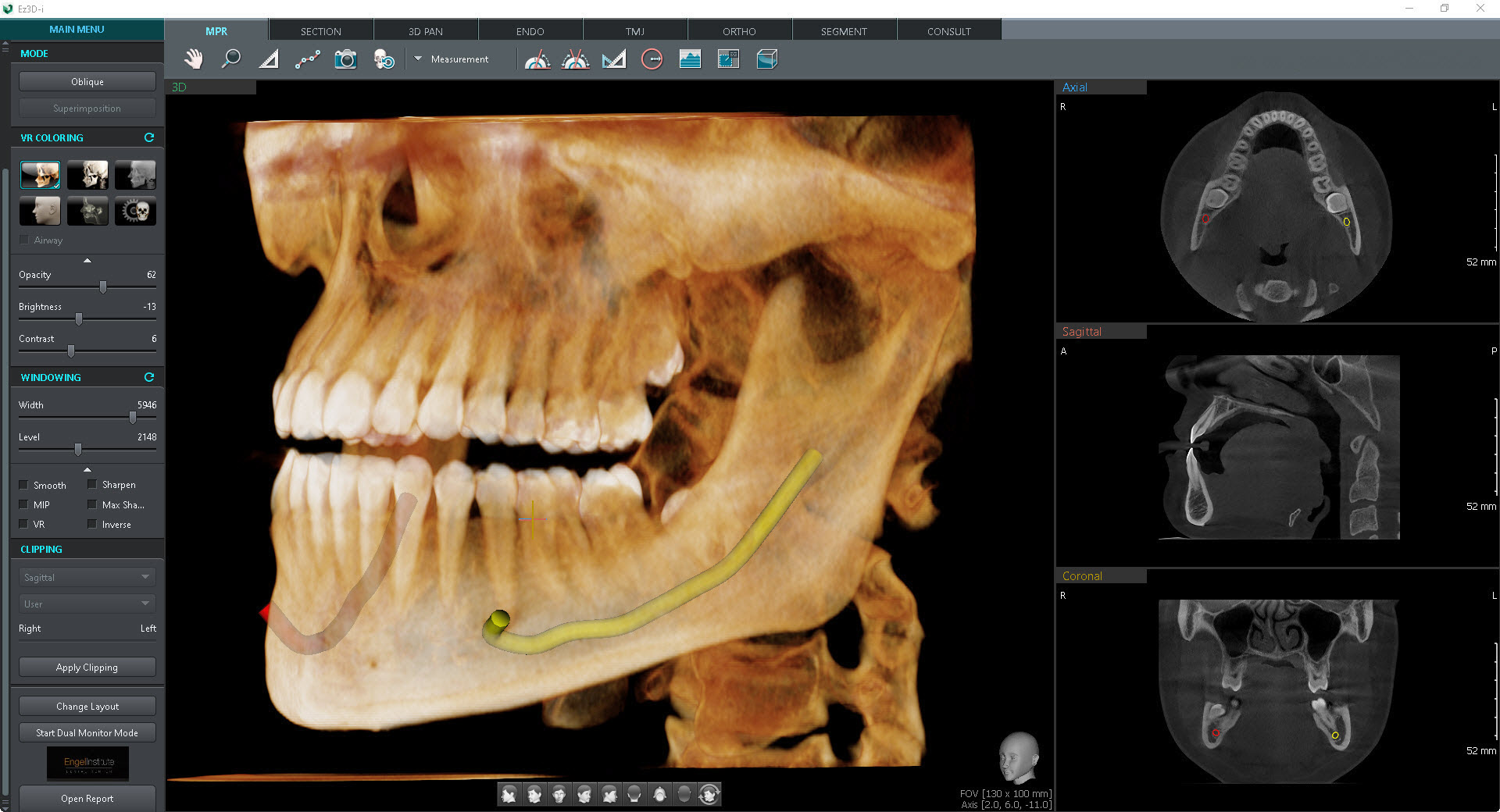

THE ART-V

Metal artifact hinders visualization and naturally reduces diagnostic confidence.
Clear image gives you less stress and more confidence which leads to accurate diagnosis for implant planning.

*ART-V is the new name of VATECH's MAR function. (Artifact Reduction Technology of VATECH
3D SCANNING FOR MODEL

3D model scan enables to store plasters as digital models.

DIGITIZED ONE-STOP CLINIC

*3D scanning for Plaster Cast with FOV 8x9 (cm)

CAD/CAM INTEGRATION

Sufficient level of detail for surgical guide design

SPECIALLY DESIGNED JIG

Stable protection from partial model to full model

SPECIFICATION

Green18 : PHT-65LHS
FUNCTION FOCAL SPOT CT FOV SIZE VOXEL SIZE SCAN TIME GRAY SCALE TUBE VOLTAGE / CURRENT WEIGHT DIMENSIONS
CT + Pano + Ceph + Model Scan 0.5 mm (IEC60336) 5x5 / 8x9 / 13x10 / 18x10 cm 5x5 0.08 mm / 0.12 mm
8x9 0.12 mm / 0.2 mm
13x10 0.2 mm / 0.3 mm
18x10 0.2 mm / 0.3 mm
PANO 14.1 sec / 7.0 sec (Optional with Magic PAN)
CEPH 3.9 sec / 1.9 sec
CBCT 9.0 sec (13x10 - 18x10) / 4.9 sec (5x5 - 8x9)
14 Bit 60 - 99 kVp / 4 - 16 mA Without CEPH unit: 295.4 lbs - without the Base / 412.3 lbs - with the Base
With CEPH unit: 350.5 lbs - without the Base / 467.4 lbs - with the Base
Without CEPH unit: 295.4 lbs - without the Base / 412.3 lbs - with the Base
With CEPH unit: 350.5 lbs - without the Base /467.4 lbs - with the Base

* The specifications are subject to change without prior notice.

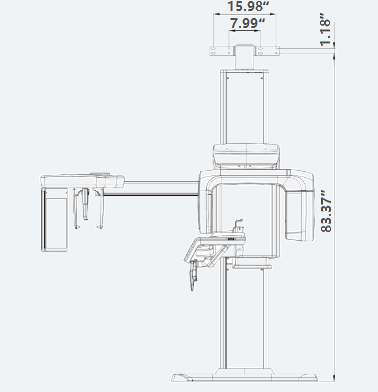

DIMENSION

TOP VIEW FRONT VIEW
With CEPH unit
Without CEPH unit

* An additional 3 inches (76.2 mm) of space is required behind the unit for
wall mount bracket installation (mandatory unless there is a base mount installation).
